Search › Model › UPK60

UPK60

Toyota SEQUOIA · 2009 · 5,453 parts · 217 categories

5,453 items

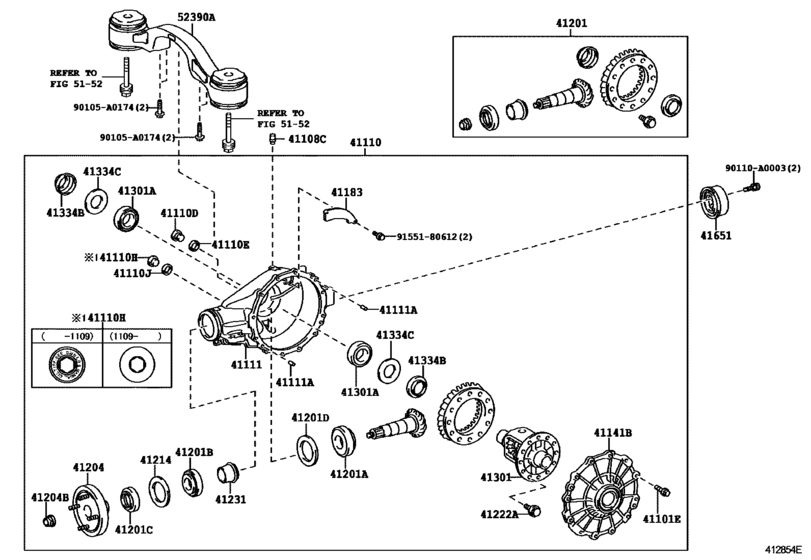

Rear Axle Housing & Differential ([11.2007 - ] (0711- )) 98

#	OEM	Part name
41101	90105-12350	Bolt (For Rear Axle Bearing Case Rh)
41108	90930-03077	Plug, Breather (For Automatic Transmission Case)
41110	41110-34531	Carrier Assy, Differential, Rear
41110	90341-24014	Plug, Front Differential Drain
41110	90430-24003	Gasket(For Oil Filter Bracket Union)
41110	90430-24017	Gasket
41110	90341-18032	Plug Sub-Assy, Drain(Mtm) - No magnet
41110	90341-18066	Plug (For Rear Differential Filler)
41110	12157-10010	Gasket (For Drain Plug)
41111	41111-34061	Carrier, Rear Differential
41111	90250-10017	Pin, Straight(For Clutch Housing Set)
41141	41141-34021	Retainer, Rear Differential Side Bearing
41183	41183-34020	Deflector, Rear Differential Breather Plug Oil
41201	41201-09860	Final Gear Kit, Differential, Rear
41201	90366-45044	Bearing (For Rear Drive Pinion Rear) - TAPERED ROLLER (FOR REAR DRIVE PINION REAR)
41201	90366-40123	Bearing (For Rear Drive Pinion Front) - TAPERED ROLLER (FOR REAR DRIVE PINION FRONT)
41201	90311-52025	Seal, Oil (For Rear Differential Carrier)
41201	90564-83001	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-83002	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-83003	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-83004	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-83005	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-83006	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-83007	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-83008	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-83009	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-83010	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-83011	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-83012	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-83013	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-83014	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-83015	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-83016	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-83017	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-83018	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-83019	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-83020	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-83021	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-83022	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-83023	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-83024	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-83025	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-83026	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-83027	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-83028	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-83029	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-83030	Washer, Plate (For Rear Differential Drive Pinion)
41201	90564-83031	Washer, Plate (For Rear Differential Drive Pinion)
41204	41204-34060	Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41204	90179-22029	Nut (For Rear Drive Pinion)
41214	41214-34020	Slinger, Rear Differential Drive Pinion Oil
41222	90105-14183	Bolt (For Rear Differential Ring Gear Set)
41231	41231-34050	Spacer, Rear Differential Drive Pinion Bearing
41301	41301-34060	Case Sub-Assy, Rear Differential
41301	90366-60021	Bearing(For Rear Differential Case)
41334	90311-47013	Oil Seal, Front Drive Shaft, Rh
41334	90564-52005	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52006	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52007	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52008	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52009	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52010	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52011	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52012	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52013	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52014	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52015	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52016	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52017	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52018	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52019	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52020	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52021	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52022	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52023	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52024	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52025	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52026	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52027	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52028	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52029	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52030	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52031	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52032	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52033	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52034	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52035	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52036	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52037	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52038	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52039	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-52040	Washer, Plate (For Rear Differential Side Gear Shaft)
41651	41651-0C061	Cushion, Rear Differential Mount, No.1
52390	52390-0C011	Support Assy, Differential, Rear
52390	52390-0C012	Support Assy, Differential, Rear
90105	90105-A0174	New Genuine Part
90110	90110-A0003	New Genuine Part
9155180612	91551-80612	Bolt (For Front Differential Breather Plug Oil Deflector)

OEM	Part name	Category
12157-10010	Gasket (For Drain Plug)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
41110-34531	Carrier Assy, Differential, Rear	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
41111-34061	Carrier, Rear Differential	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
41141-34021	Retainer, Rear Differential Side Bearing	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
41183-34020	Deflector, Rear Differential Breather Plug Oil	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
41201-09860	Final Gear Kit, Differential, Rear	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
41204-34060	Flange Sub-Assy, Rear Drive Pinion Companion, Rear	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
41214-34020	Slinger, Rear Differential Drive Pinion Oil	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
41231-34050	Spacer, Rear Differential Drive Pinion Bearing	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
41301-34060	Case Sub-Assy, Rear Differential	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
41651-0C061	Cushion, Rear Differential Mount, No.1	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
52390-0C011	Support Assy, Differential, Rear	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
52390-0C012	Support Assy, Differential, Rear	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90105-12350	Bolt (For Rear Axle Bearing Case Rh)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90105-14183	Bolt (For Rear Differential Ring Gear Set)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90105-A0174	New Genuine Part	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90110-A0003	New Genuine Part	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90179-22029	Nut (For Rear Drive Pinion)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90250-10017	Pin, Straight(For Clutch Housing Set)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90311-47013	Oil Seal, Front Drive Shaft, Rh	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90311-52025	Seal, Oil (For Rear Differential Carrier)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90341-18032	Plug Sub-Assy, Drain(Mtm) - No magnet	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90341-18066	Plug (For Rear Differential Filler)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90341-24014	Plug, Front Differential Drain	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90366-40123	Bearing (For Rear Drive Pinion Front) - TAPERED ROLLER (FOR REAR DRIVE PINION FRONT)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90366-45044	Bearing (For Rear Drive Pinion Rear) - TAPERED ROLLER (FOR REAR DRIVE PINION REAR)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90366-60021	Bearing(For Rear Differential Case)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90430-24003	Gasket(For Oil Filter Bracket Union)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90430-24017	Gasket	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52005	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52006	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52007	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52008	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52009	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52010	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52011	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52012	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52013	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52014	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52015	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52016	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52017	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52018	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52019	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52020	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52021	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52022	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52023	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52024	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52025	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52026	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52027	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52028	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52029	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52030	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52031	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52032	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52033	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52034	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52035	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52036	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52037	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52038	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52039	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-52040	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-83001	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-83002	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-83003	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-83004	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-83005	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-83006	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-83007	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-83008	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-83009	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-83010	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-83011	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-83012	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-83013	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-83014	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-83015	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-83016	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-83017	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-83018	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-83019	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-83020	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-83021	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-83022	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-83023	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-83024	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-83025	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-83026	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-83027	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-83028	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-83029	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-83030	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90564-83031	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
90930-03077	Plug, Breather (For Automatic Transmission Case)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))
91551-80612	Bolt (For Front Differential Breather Plug Oil Deflector)	Rear Axle Housing & Differential ([11.2007 - ] (0711- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 217
Collected: 2026-08-04
