Search › Model › UPK55

UPK55

Toyota TUNDRA · 2009 · 3,894 parts · 198 categories

3,894 items

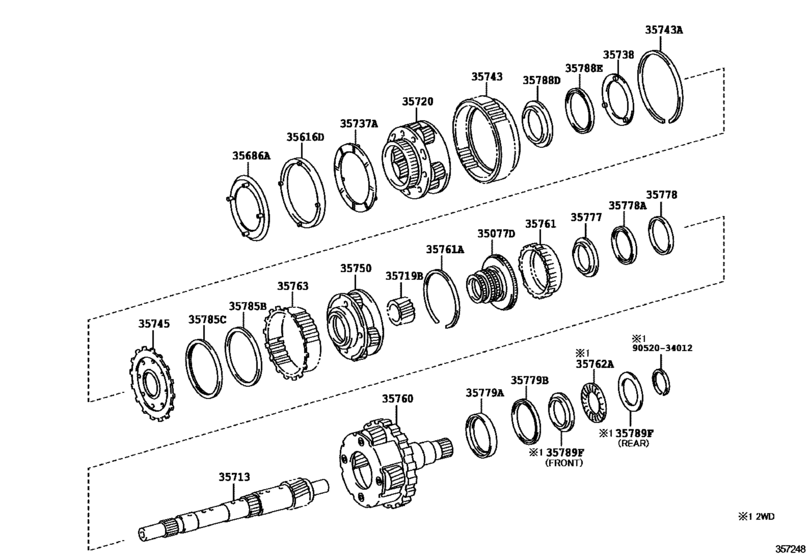

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2009 - ] A760E,A760F (0904- )UPK5#) 27

#	OEM	Part name
35077	35077-60010	Flange Sub-Assy, Rr Planetary Ring Gear
35616	35616-60010	Washer, Clutch Drum Thrust
35686	35686-60010	Washer, Clutch Drum Thrust, No.2
35713	35713-0C030	Shaft, Intermediate
35719	35719-30090	Gear, Planetary Sun
35720	35720-30140	Gear Assy, Front Planetary
35737	35737-60030	Washer, Planetary Carrier Thrust, No.1
35738	35738-60030	Washer, Planetary Carrier Thrust, No.2
35743	35743-50020	Gear, Front Planetary Ring
35743	90520-99076	Ring, Shaft Snap (For Front Planetary Ring Gear)
35745	35745-50040	Flange, Front Planetary Ring Gear
35750	35750-34020	Gear Assy, Center Planetary
35760	35760-0C090	Gear Assy, Rear Planetary
35760	35760-34020	Gear Assy, Rear Planetary
35761	35761-0C010	Gear, Rear Planetary Ring
35761	90520-99073	Ring, Snap (For Rear Planetary Ring Gear Flange)
35763	35763-30020	Gear, Center Planetary Ring
35777	35777-0C010	Race, Thrust Bearing, No.7
35778	35778-0C010	Race, Thrust Bearing, No.8
35778	90374-A0005	Bearing, Thrust Needle Roller
35779	35779-0C020	Race, Thrust Bearing, No.9
35779	90374-A0018	Bearing, Thrust Needle Roller
35785	35785-60010	Race, Thrust Bearing, No.4
35785	90374-55004	Bearing, Thrust Needle Roller
35788	35788-60010	Race, Thrust Bearing, No.3
35788	90374-44005	Bearing, Thrust Needle Roller
9052034012	90520-34012	Ring, Shaft Snap (For Gear Thrust Washer)

OEM	Part name	Category
35077-60010	Flange Sub-Assy, Rr Planetary Ring Gear	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2009 - ] A760E,A760F (0904- )UPK5#)
35616-60010	Washer, Clutch Drum Thrust	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2009 - ] A760E,A760F (0904- )UPK5#)
35686-60010	Washer, Clutch Drum Thrust, No.2	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2009 - ] A760E,A760F (0904- )UPK5#)
35713-0C030	Shaft, Intermediate	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2009 - ] A760E,A760F (0904- )UPK5#)
35719-30090	Gear, Planetary Sun	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2009 - ] A760E,A760F (0904- )UPK5#)
35720-30140	Gear Assy, Front Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2009 - ] A760E,A760F (0904- )UPK5#)
35737-60030	Washer, Planetary Carrier Thrust, No.1	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2009 - ] A760E,A760F (0904- )UPK5#)
35738-60030	Washer, Planetary Carrier Thrust, No.2	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2009 - ] A760E,A760F (0904- )UPK5#)
35743-50020	Gear, Front Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2009 - ] A760E,A760F (0904- )UPK5#)
35745-50040	Flange, Front Planetary Ring Gear	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2009 - ] A760E,A760F (0904- )UPK5#)
35750-34020	Gear Assy, Center Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2009 - ] A760E,A760F (0904- )UPK5#)
35760-0C090	Gear Assy, Rear Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2009 - ] A760E,A760F (0904- )UPK5#)
35760-34020	Gear Assy, Rear Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2009 - ] A760E,A760F (0904- )UPK5#)
35761-0C010	Gear, Rear Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2009 - ] A760E,A760F (0904- )UPK5#)
35763-30020	Gear, Center Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2009 - ] A760E,A760F (0904- )UPK5#)
35777-0C010	Race, Thrust Bearing, No.7	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2009 - ] A760E,A760F (0904- )UPK5#)
35778-0C010	Race, Thrust Bearing, No.8	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2009 - ] A760E,A760F (0904- )UPK5#)
35779-0C020	Race, Thrust Bearing, No.9	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2009 - ] A760E,A760F (0904- )UPK5#)
35785-60010	Race, Thrust Bearing, No.4	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2009 - ] A760E,A760F (0904- )UPK5#)
35788-60010	Race, Thrust Bearing, No.3	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2009 - ] A760E,A760F (0904- )UPK5#)
90374-44005	Bearing, Thrust Needle Roller	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2009 - ] A760E,A760F (0904- )UPK5#)
90374-55004	Bearing, Thrust Needle Roller	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2009 - ] A760E,A760F (0904- )UPK5#)
90374-A0005	Bearing, Thrust Needle Roller	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2009 - ] A760E,A760F (0904- )UPK5#)
90374-A0018	Bearing, Thrust Needle Roller	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2009 - ] A760E,A760F (0904- )UPK5#)
90520-34012	Ring, Shaft Snap (For Gear Thrust Washer)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2009 - ] A760E,A760F (0904- )UPK5#)
90520-99073	Ring, Snap (For Rear Planetary Ring Gear Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2009 - ] A760E,A760F (0904- )UPK5#)
90520-99076	Ring, Shaft Snap (For Front Planetary Ring Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2009 - ] A760E,A760F (0904- )UPK5#)
