Search › Model › UP30

UP30

Toyota PUBLICA · 1969 · 3,137 parts · 139 categories

3,137 items

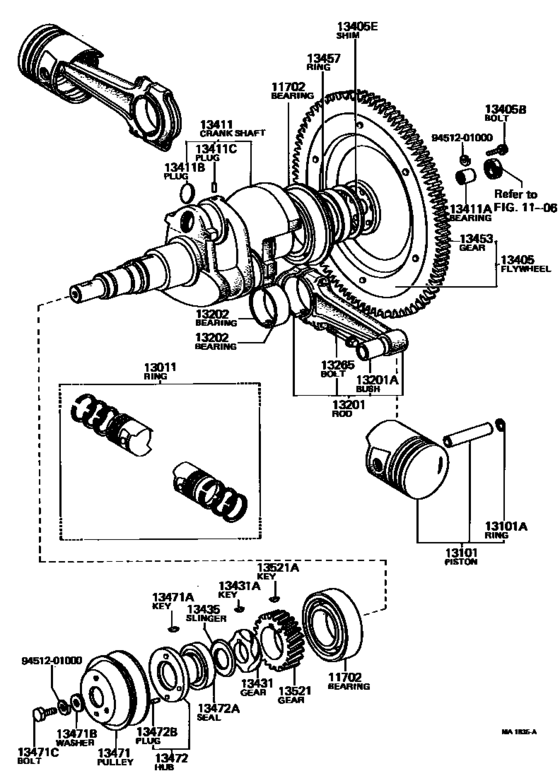

Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC) 50

#	OEM	Part name
11702	90363-50024	Bearing Set, Crankshaft
11702	97540-00210	Bearing Set, Crankshaft
13011	13011-11021	Ring Set, Piston
13011	13011-11010	Ring Set, Piston
13011	13012-11010	Ring Set, Piston
13011	13012-11021	Ring Set, Piston
13011	13013-11010	Ring Set, Piston
13011	13013-11021	Ring Set, Piston
13011	13014-11010	Ring Set, Piston
13011	13014-11021	Ring Set, Piston
13011	13015-11010	Ring Set, Piston
13011	13015-11021	Ring Set, Piston
13101	13101-11021	Piston Sub-Assy, W/pin
13101	13102-11021	Piston Sub-Assy, W/pin
13101	13103-11021	Piston Sub-Assy, W/pin
13101	13104-11021	Piston Sub-Assy, W/pin
13101	13105-11021	Piston Sub-Assy, W/pin
13101	90521-25081	Ring, Hole Snap(For Piston Pin)
13201	13201-10010	Rod Sub-Assy, Connecting
13201	90999-73004	Bush(For Connecting Rod Small End)
13201	90999-70052	Bush(For Connecting Rod Small End)
13202	13281-11010	Bearing Set, Connecting Rod
13202	13282-11010	Bearing, Connecting Rod
13202	13283-11010	Bearing Set, Connecting Rod
13202	13284-11010	Bearing Set, Connecting Rod
13202	13285-11010	Bearing Set, Connecting Rod
13265	90101-09310	Bolt, Connecting Rod
13405	13405-10011	Flywheel Sub-Assy
13405	13405-11010	Flywheel Sub-Assy
13405	90913-01004	Bolt, Flywheel Setting
13405	90564-49056	Shim(For Flywheel)
13405	90564-49057	Shim(For Flywheel)
13411	13401-11012	Crankshaft
13411	90330-17029	Plug, Taper Screw(For Crankshaft)
13411	90334-07011	Pin, Straight(For Crankshaft)
13431	13431-10010	Gear, Distributor Drive
13431	13431-10011	Gear, Distributor Drive
13431	90280-05008	Key, Woodruff(For Distributor Drive Gear)
13435	13435-10010	Slinger, Crankshaft Oil
13453	13453-10010	Gear, Flywheel Ring
13457	13457-11010	Ring, Flywheel Spacer
13471	13471-10010	Pulley, Crankshaft
13471	90201-10189	Washer, Plate(For Crankshaft Pulley Set)
13471	91111-41025	Bolt(For Crankshaft Pulley Set)
13471	91112-61025	Bolt(For Clutch Pedal Stopper)
13472	13472-19015	Hub, Crankshaft Pulley
13472	90311-35036	Seal, Oil(For Crankshaft Pulley Hub)
13472	90334-08006	Plug, Straigh(For Crankcase)
13521	13521-10010	Gear Or Sprocket, Crankshaft Timing
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
13011-11010	Ring Set, Piston	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
13011-11021	Ring Set, Piston	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
13012-11010	Ring Set, Piston	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
13012-11021	Ring Set, Piston	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
13013-11010	Ring Set, Piston	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
13013-11021	Ring Set, Piston	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
13014-11010	Ring Set, Piston	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
13014-11021	Ring Set, Piston	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
13015-11010	Ring Set, Piston	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
13015-11021	Ring Set, Piston	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
13101-11021	Piston Sub-Assy, W/pin	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
13102-11021	Piston Sub-Assy, W/pin	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
13103-11021	Piston Sub-Assy, W/pin	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
13104-11021	Piston Sub-Assy, W/pin	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
13105-11021	Piston Sub-Assy, W/pin	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
13201-10010	Rod Sub-Assy, Connecting	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
13281-11010	Bearing Set, Connecting Rod	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
13282-11010	Bearing, Connecting Rod	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
13283-11010	Bearing Set, Connecting Rod	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
13284-11010	Bearing Set, Connecting Rod	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
13285-11010	Bearing Set, Connecting Rod	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
13401-11012	Crankshaft	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
13405-10011	Flywheel Sub-Assy	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
13405-11010	Flywheel Sub-Assy	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
13431-10010	Gear, Distributor Drive	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
13431-10011	Gear, Distributor Drive	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
13435-10010	Slinger, Crankshaft Oil	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
13453-10010	Gear, Flywheel Ring	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
13457-11010	Ring, Flywheel Spacer	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
13471-10010	Pulley, Crankshaft	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
13472-19015	Hub, Crankshaft Pulley	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
13521-10010	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
90101-09310	Bolt, Connecting Rod	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
90201-10189	Washer, Plate(For Crankshaft Pulley Set)	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
90280-05008	Key, Woodruff(For Distributor Drive Gear)	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
90311-35036	Seal, Oil(For Crankshaft Pulley Hub)	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
90330-17029	Plug, Taper Screw(For Crankshaft)	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
90334-07011	Pin, Straight(For Crankshaft)	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
90334-08006	Plug, Straigh(For Crankcase)	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
90363-50024	Bearing Set, Crankshaft	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
90521-25081	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
90564-49056	Shim(For Flywheel)	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
90564-49057	Shim(For Flywheel)	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
90913-01004	Bolt, Flywheel Setting	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
90999-70052	Bush(For Connecting Rod Small End)	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
90999-73004	Bush(For Connecting Rod Small End)	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
91111-41025	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
91112-61025	Bolt(For Clutch Pedal Stopper)	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
97540-00210	Bearing Set, Crankshaft	Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC)
