Search › Model › UCK60

UCK60

Toyota SEQUOIA · 2007 · 4,923 parts · 206 categories

4,923 items

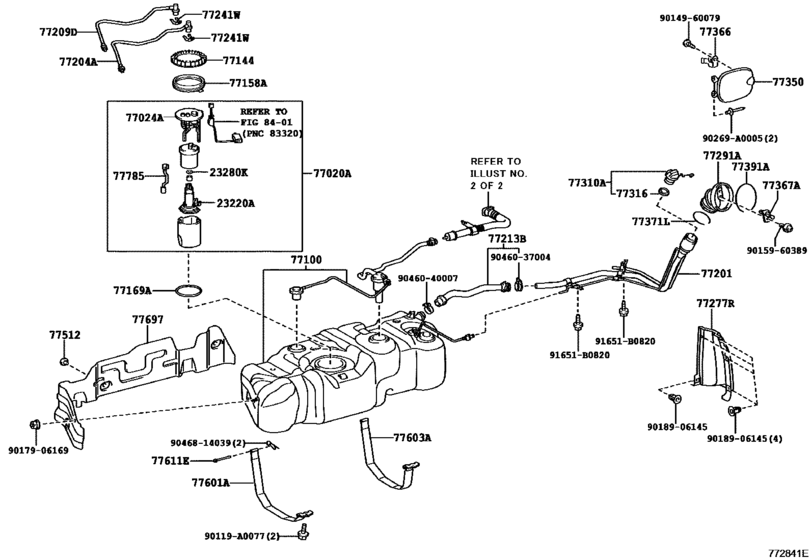

Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#) 51

#	OEM	Part name
23220	23220-0F050	Pump Assy, Fuel W/filter
23220	23220-0F051	Pump Assy, Fuel W/filter
23280	90301-A0021	Seal, Fuel Pump Filter
77020	77020-0C070	Tube Assy, Fuel Suction W/pump & Gage
77020	77020-0C072	Tube Assy, Fuel Suction W/pump & Gage
77020	77020-0C071	Tube Assy, Fuel Suction W/pump & Gage
77024	77024-0C030	Plate Sub-Assy, Fuel Suction
77100	77001-0C070	Tank Assy, Fuel
77144	77144-08010	Retainer, Fuel Pump Gauge
77158	77158-08010	Support, Tank Suction Tube
77169	77169-0C010	Gasket, Fuel Suction Tube Set
77201	77201-0C090	Pipe Sub-Assy, Fuel Tank Inlet
77201	77201-0C141	Pipe Sub-Assy, Fuel Tank Inlet
77201	77300-06030	Cap Assy, Fuel Tank
77201	77300-07030	Cap Assy, Fuel Tank
77201	77300-12020	Cap Assy, Fuel Tank
77204	77204-0C030	Tube, Fuel Tank Return
77204	77204-0C070	Tube, Fuel Tank Return
77204	77204-0C060	Tube, Fuel Tank Return
77209	77209-0C060	Tube Sub-Assy, Fuel Tank Main
77209	77209-0C110	Tube Sub-Assy, Fuel Tank Main
77213	77213-0C090	Hose, Fuel Tank To Filler Pipe
77241	77241-02010	Clip, Tube Joint
77277	77277-0C020	Protector, Fuel Tank Filler Pipe
77291	77291-0C080	Shield, Fuel Tank Filler Pipe
77310	77300-06040	Cap Assy, Fuel Tank
77316	77316-06070	Gasket, Fuel Tank Cap
77350	77350-0C020	Lid Assy, Fuel Filler Opening
77350	77350-0C021	Lid Assy, Fuel Filler Opening
77366	77366-35030	Spring, Fuel Filler Opening Lid Hinge
77367	77367-0C010	Clamp, Fuel Filler Lid Pin, No.1
77371	77371-35010	Ring, Fuel Tank Filler Pipe Shield
77391	77391-0C010	Ring, Fuel Inlet Box
77512	77512-35140	Bracket, Fuel Tank
77601	77601-0C040	Band Sub-Assy, Fuel Tank, No.1
77601	77601-0C130	Band Sub-Assy, Fuel Tank, No.1
77603	77602-0C022	Band Sub-Assy, Fuel Tank, No.2
77611	77653-34040	Pin, Fuel Tank Band
77697	77697-0C020	Insulator, Fuel Tank Heat, No.1
77785	77785-0C030	Harness, Fuel Pump
90119	90119-A0077	New Genuine Part
90269	90269-A0005	RIVET
91651	91651-B0820	Bolt, Radiator Side Support Plate
91651	90080-11347	New Genuine Part
9014960079	90149-60079	SCREW
9015960389	90159-60389	New Genuine Part
9017906169	90179-06169	Nut
9018906145	90189-06145	GROMMET SCREW
9046037004	90460-37004	New Genuine Part
9046040007	90460-40007	Clamp (For Fuel Filler Pipe)
9046814039	90468-14039	CLIP

OEM	Part name	Category
23220-0F050	Pump Assy, Fuel W/filter	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
23220-0F051	Pump Assy, Fuel W/filter	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77001-0C070	Tank Assy, Fuel	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77020-0C070	Tube Assy, Fuel Suction W/pump & Gage	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77020-0C071	Tube Assy, Fuel Suction W/pump & Gage	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77020-0C072	Tube Assy, Fuel Suction W/pump & Gage	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77024-0C030	Plate Sub-Assy, Fuel Suction	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77144-08010	Retainer, Fuel Pump Gauge	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77158-08010	Support, Tank Suction Tube	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77169-0C010	Gasket, Fuel Suction Tube Set	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77201-0C090	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77201-0C141	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77204-0C030	Tube, Fuel Tank Return	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77204-0C060	Tube, Fuel Tank Return	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77204-0C070	Tube, Fuel Tank Return	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77209-0C060	Tube Sub-Assy, Fuel Tank Main	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77209-0C110	Tube Sub-Assy, Fuel Tank Main	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77213-0C090	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77241-02010	Clip, Tube Joint	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77277-0C020	Protector, Fuel Tank Filler Pipe	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77291-0C080	Shield, Fuel Tank Filler Pipe	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77300-06030	Cap Assy, Fuel Tank	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77300-06040	Cap Assy, Fuel Tank	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77300-07030	Cap Assy, Fuel Tank	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77300-12020	Cap Assy, Fuel Tank	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77316-06070	Gasket, Fuel Tank Cap	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77350-0C020	Lid Assy, Fuel Filler Opening	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77350-0C021	Lid Assy, Fuel Filler Opening	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77366-35030	Spring, Fuel Filler Opening Lid Hinge	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77367-0C010	Clamp, Fuel Filler Lid Pin, No.1	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77371-35010	Ring, Fuel Tank Filler Pipe Shield	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77391-0C010	Ring, Fuel Inlet Box	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77512-35140	Bracket, Fuel Tank	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77601-0C040	Band Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77601-0C130	Band Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77602-0C022	Band Sub-Assy, Fuel Tank, No.2	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77653-34040	Pin, Fuel Tank Band	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77697-0C020	Insulator, Fuel Tank Heat, No.1	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
77785-0C030	Harness, Fuel Pump	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
90080-11347	New Genuine Part	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
90119-A0077	New Genuine Part	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
90149-60079	SCREW	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
90159-60389	New Genuine Part	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
90179-06169	Nut	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
90189-06145	GROMMET SCREW	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
90269-A0005	RIVET	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
90301-A0021	Seal, Fuel Pump Filter	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
90460-37004	New Genuine Part	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
90460-40007	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
90468-14039	CLIP	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
91651-B0820	Bolt, Radiator Side Support Plate	Fuel Tank & Tube ([11.2007 - ] FUEL TANK (0711- )UCK6#)
