Search › Model › UCK60
UCK60

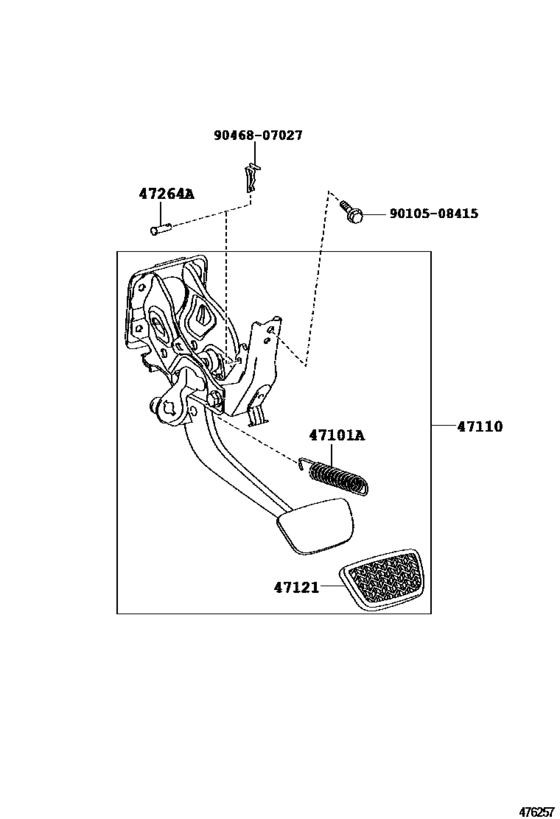

Brake Pedal & Bracket ([11.2007 - ] (0711- )) 6
| # | OEM | Part name |
|---|---|---|
| 47101 | 90507-19006 | Spring(For Brake Pedal Return) |
| 47110 | 47110-0C011 | Support Assy, Brake Pedal |
| 47121 | 47121-0E010 | Pad, Brake Pedal |
| 47264 | 90240-08078 | Pin(For Push Rod) |
| 9010508415 | 90105-08415 | New Genuine Part |
| 9046807027 | 90468-07027 | Clip(For Push Rod Clevis Pin) |
| OEM | Part name | Category |
|---|---|---|
| 47110-0C011 | Support Assy, Brake Pedal | Brake Pedal & Bracket ([11.2007 - ] (0711- )) |
| 47121-0E010 | Pad, Brake Pedal | Brake Pedal & Bracket ([11.2007 - ] (0711- )) |
| 90105-08415 | New Genuine Part | Brake Pedal & Bracket ([11.2007 - ] (0711- )) |
| 90240-08078 | Pin(For Push Rod) | Brake Pedal & Bracket ([11.2007 - ] (0711- )) |
| 90468-07027 | Clip(For Push Rod Clevis Pin) | Brake Pedal & Bracket ([11.2007 - ] (0711- )) |
| 90507-19006 | Spring(For Brake Pedal Return) | Brake Pedal & Bracket ([11.2007 - ] (0711- )) |
