Search › Model › UCK56

UCK56

Toyota TUNDRA · 2006 · 4,685 parts · 203 categories

4,685 items

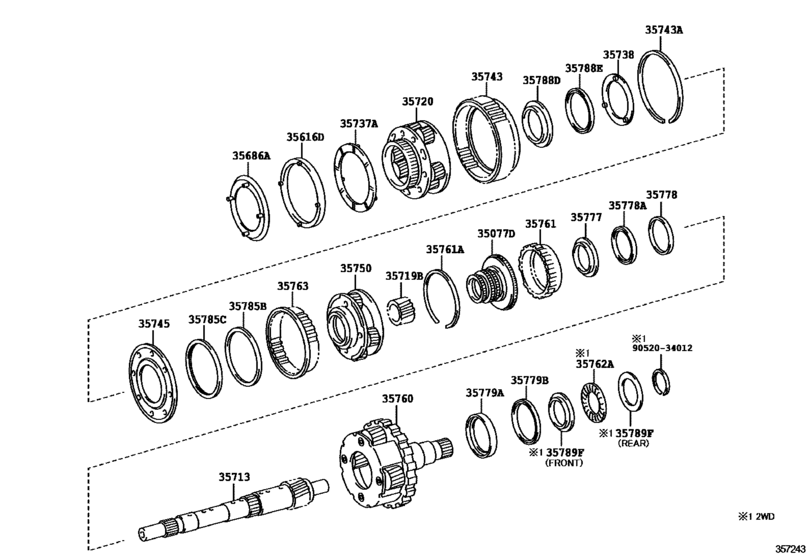

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([11.2006 - ] A750E,A750F (0611- )GSK5#,UCK5#) 30

#	OEM	Part name
35077	35077-60010	Flange Sub-Assy, Rr Planetary Ring Gear
35616	35616-60010	Washer, Clutch Drum Thrust
35686	35686-60010	Washer, Clutch Drum Thrust, No.2
35713	35713-0C010	Shaft, Intermediate
35713	35713-0C030	Shaft, Intermediate
35719	35719-60050	Gear, Planetary Sun
35720	35720-60070	Gear Assy, Front Planetary
35737	35737-60030	Washer, Planetary Carrier Thrust, No.1
35738	35738-60030	Washer, Planetary Carrier Thrust, No.2
35743	35743-60050	Gear, Front Planetary Ring
35743	35743-60060	Gear, Front Planetary Ring
35743	35763-60020	Gear, Center Planetary Ring
35743	90520-99076	Ring, Shaft Snap (For Front Planetary Ring Gear)
35745	35745-60010	Flange, Front Planetary Ring Gear
35750	35750-60010	Gear Assy, Center Planetary
35760	35760-0C040	Gear Assy, Rear Planetary
35760	35760-0C041	Gear Assy, Rear Planetary
35761	35761-0C010	Gear, Rear Planetary Ring
35761	90520-99073	Ring, Snap (For Rear Planetary Ring Gear Flange)
35763	35763-60010	Gear, Center Planetary Ring
35777	35777-0C010	Race, Thrust Bearing, No.7
35778	35778-0C010	Race, Thrust Bearing, No.8
35778	90374-A0005	Bearing, Thrust Needle Roller
35779	35779-0C020	Race, Thrust Bearing, No.9
35779	90374-A0018	Bearing, Thrust Needle Roller
35785	35785-60010	Race, Thrust Bearing, No.4
35785	90374-55004	Bearing, Thrust Needle Roller
35788	35788-60010	Race, Thrust Bearing, No.3
35788	90374-44005	Bearing, Thrust Needle Roller
9052034012	90520-34012	Ring, Shaft Snap (For Gear Thrust Washer)

OEM	Part name	Category
35077-60010	Flange Sub-Assy, Rr Planetary Ring Gear	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([11.2006 - ] A750E,A750F (0611- )GSK5#,UCK5#)
35616-60010	Washer, Clutch Drum Thrust	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([11.2006 - ] A750E,A750F (0611- )GSK5#,UCK5#)
35686-60010	Washer, Clutch Drum Thrust, No.2	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([11.2006 - ] A750E,A750F (0611- )GSK5#,UCK5#)
35713-0C010	Shaft, Intermediate	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([11.2006 - ] A750E,A750F (0611- )GSK5#,UCK5#)
35713-0C030	Shaft, Intermediate	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([11.2006 - ] A750E,A750F (0611- )GSK5#,UCK5#)
35719-60050	Gear, Planetary Sun	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([11.2006 - ] A750E,A750F (0611- )GSK5#,UCK5#)
35720-60070	Gear Assy, Front Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([11.2006 - ] A750E,A750F (0611- )GSK5#,UCK5#)
35737-60030	Washer, Planetary Carrier Thrust, No.1	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([11.2006 - ] A750E,A750F (0611- )GSK5#,UCK5#)
35738-60030	Washer, Planetary Carrier Thrust, No.2	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([11.2006 - ] A750E,A750F (0611- )GSK5#,UCK5#)
35743-60050	Gear, Front Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([11.2006 - ] A750E,A750F (0611- )GSK5#,UCK5#)
35743-60060	Gear, Front Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([11.2006 - ] A750E,A750F (0611- )GSK5#,UCK5#)
35745-60010	Flange, Front Planetary Ring Gear	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([11.2006 - ] A750E,A750F (0611- )GSK5#,UCK5#)
35750-60010	Gear Assy, Center Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([11.2006 - ] A750E,A750F (0611- )GSK5#,UCK5#)
35760-0C040	Gear Assy, Rear Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([11.2006 - ] A750E,A750F (0611- )GSK5#,UCK5#)
35760-0C041	Gear Assy, Rear Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([11.2006 - ] A750E,A750F (0611- )GSK5#,UCK5#)
35761-0C010	Gear, Rear Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([11.2006 - ] A750E,A750F (0611- )GSK5#,UCK5#)
35763-60010	Gear, Center Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([11.2006 - ] A750E,A750F (0611- )GSK5#,UCK5#)
35763-60020	Gear, Center Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([11.2006 - ] A750E,A750F (0611- )GSK5#,UCK5#)
35777-0C010	Race, Thrust Bearing, No.7	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([11.2006 - ] A750E,A750F (0611- )GSK5#,UCK5#)
35778-0C010	Race, Thrust Bearing, No.8	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([11.2006 - ] A750E,A750F (0611- )GSK5#,UCK5#)
35779-0C020	Race, Thrust Bearing, No.9	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([11.2006 - ] A750E,A750F (0611- )GSK5#,UCK5#)
35785-60010	Race, Thrust Bearing, No.4	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([11.2006 - ] A750E,A750F (0611- )GSK5#,UCK5#)
35788-60010	Race, Thrust Bearing, No.3	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([11.2006 - ] A750E,A750F (0611- )GSK5#,UCK5#)
90374-44005	Bearing, Thrust Needle Roller	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([11.2006 - ] A750E,A750F (0611- )GSK5#,UCK5#)
90374-55004	Bearing, Thrust Needle Roller	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([11.2006 - ] A750E,A750F (0611- )GSK5#,UCK5#)
90374-A0005	Bearing, Thrust Needle Roller	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([11.2006 - ] A750E,A750F (0611- )GSK5#,UCK5#)
90374-A0018	Bearing, Thrust Needle Roller	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([11.2006 - ] A750E,A750F (0611- )GSK5#,UCK5#)
90520-34012	Ring, Shaft Snap (For Gear Thrust Washer)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([11.2006 - ] A750E,A750F (0611- )GSK5#,UCK5#)
90520-99073	Ring, Snap (For Rear Planetary Ring Gear Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([11.2006 - ] A750E,A750F (0611- )GSK5#,UCK5#)
90520-99076	Ring, Shaft Snap (For Front Planetary Ring Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([11.2006 - ] A750E,A750F (0611- )GSK5#,UCK5#)
