UCK56

Toyota TUNDRA · 2006 · 4,685 parts · 203 categories

4,685 items

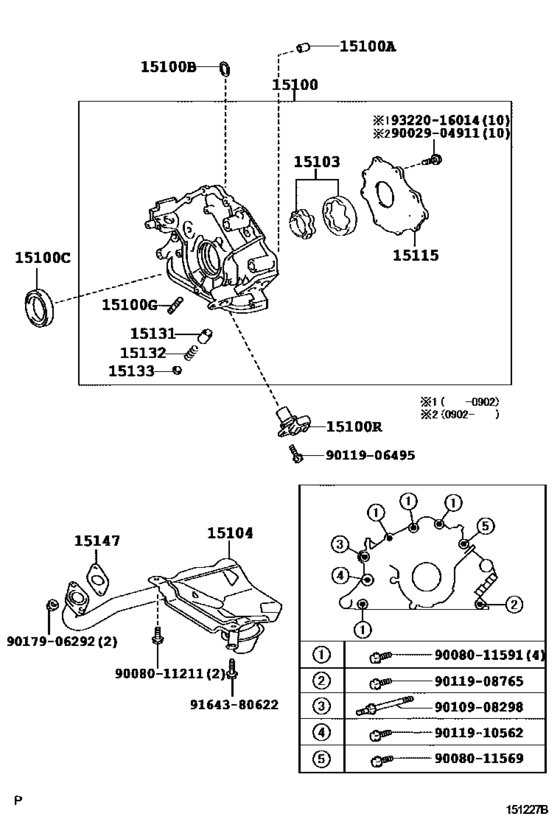

Engine Oil Pump ([11.2006 - 04.2009] (0611-0904)2UZFE) 25

#	OEM	Part name
15100	15100-0F020	Pump Assy, Oil
15100	90253-13017	Pin, Ring W/head
15100	90253-A0008	Pin, Ring(For Crankshaft Bearing Cap Set)
15100	96721-24025	Ring, O(For Oil Seal Retainer)
15100	90311-A0001	Seal(For Oil Pump)
15100	16193-15010	Bolt,stud(For Oil Pump)
15100	90919-A5001	Sensor, Crank Position
15103	15103-0F020	Gear Set, Oil Pump
15104	15104-50230	Strainer Sub-Assy, Oil
15115	15115-0F010	Cover, Oil Pump
15131	15131-0A040	Valve, Oil Pump Relief
15132	15132-0A020	Spring, Oil Pump Relief Valve
15133	15133-17010	Plug, Oil Pump Relief Valve
15147	15147-50011	Gasket, Oil Strainer
9002904911	90029-04911	New Genuine Part
9008011211	90080-11211	New Genuine Part
9008011569	90080-11569	New Genuine Part
9008011591	90080-11591	New Genuine Part
9010908298	90109-08298	New Genuine Part
9011906495	90119-06495	New Genuine Part
9011908765	90119-08765	New Genuine Part
9011910562	90119-10562	New Genuine Part
9017906292	90179-06292	NUT
9164380622	91643-80622	New Genuine Part
9322016014	93220-16014	SCREW

OEM	Part name	Category
15100-0F020	Pump Assy, Oil	Engine Oil Pump ([11.2006 - 04.2009] (0611-0904)2UZFE)
15103-0F020	Gear Set, Oil Pump	Engine Oil Pump ([11.2006 - 04.2009] (0611-0904)2UZFE)
15104-50230	Strainer Sub-Assy, Oil	Engine Oil Pump ([11.2006 - 04.2009] (0611-0904)2UZFE)
15115-0F010	Cover, Oil Pump	Engine Oil Pump ([11.2006 - 04.2009] (0611-0904)2UZFE)
15131-0A040	Valve, Oil Pump Relief	Engine Oil Pump ([11.2006 - 04.2009] (0611-0904)2UZFE)
15132-0A020	Spring, Oil Pump Relief Valve	Engine Oil Pump ([11.2006 - 04.2009] (0611-0904)2UZFE)
15133-17010	Plug, Oil Pump Relief Valve	Engine Oil Pump ([11.2006 - 04.2009] (0611-0904)2UZFE)
15147-50011	Gasket, Oil Strainer	Engine Oil Pump ([11.2006 - 04.2009] (0611-0904)2UZFE)
16193-15010	Bolt,stud(For Oil Pump)	Engine Oil Pump ([11.2006 - 04.2009] (0611-0904)2UZFE)
90029-04911	New Genuine Part	Engine Oil Pump ([11.2006 - 04.2009] (0611-0904)2UZFE)
90080-11211	New Genuine Part	Engine Oil Pump ([11.2006 - 04.2009] (0611-0904)2UZFE)
90080-11569	New Genuine Part	Engine Oil Pump ([11.2006 - 04.2009] (0611-0904)2UZFE)
90080-11591	New Genuine Part	Engine Oil Pump ([11.2006 - 04.2009] (0611-0904)2UZFE)
90109-08298	New Genuine Part	Engine Oil Pump ([11.2006 - 04.2009] (0611-0904)2UZFE)
90119-06495	New Genuine Part	Engine Oil Pump ([11.2006 - 04.2009] (0611-0904)2UZFE)
90119-08765	New Genuine Part	Engine Oil Pump ([11.2006 - 04.2009] (0611-0904)2UZFE)
90119-10562	New Genuine Part	Engine Oil Pump ([11.2006 - 04.2009] (0611-0904)2UZFE)
90179-06292	NUT	Engine Oil Pump ([11.2006 - 04.2009] (0611-0904)2UZFE)
90253-13017	Pin, Ring W/head	Engine Oil Pump ([11.2006 - 04.2009] (0611-0904)2UZFE)
90253-A0008	Pin, Ring(For Crankshaft Bearing Cap Set)	Engine Oil Pump ([11.2006 - 04.2009] (0611-0904)2UZFE)
90311-A0001	Seal(For Oil Pump)	Engine Oil Pump ([11.2006 - 04.2009] (0611-0904)2UZFE)
90919-A5001	Sensor, Crank Position	Engine Oil Pump ([11.2006 - 04.2009] (0611-0904)2UZFE)
91643-80622	New Genuine Part	Engine Oil Pump ([11.2006 - 04.2009] (0611-0904)2UZFE)
93220-16014	SCREW	Engine Oil Pump ([11.2006 - 04.2009] (0611-0904)2UZFE)
96721-24025	Ring, O(For Oil Seal Retainer)	Engine Oil Pump ([11.2006 - 04.2009] (0611-0904)2UZFE)
