Search › Model › UCK56

UCK56

Toyota TUNDRA · 2006 · 4,685 parts · 203 categories

4,685 items

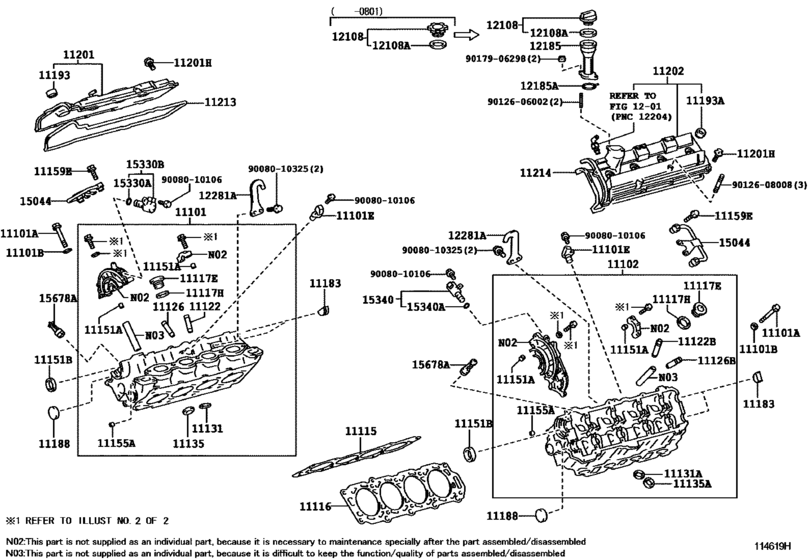

Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE) 59

#	OEM	Part name
11101	11101-09220	Head Sub-Assy, Cylinder
11101	90910-02132	Bolt(For Cylinder Head Set)
11101	90910-02181	Bolt(For Cylinder Head Set)
11101	90201-10133	Washer, Plate(For Cylinder Head Set)
11101	90919-A5002	Sensor, Cam Position
11102	11102-09110	Head, Cylinder, Lh
11115	11115-50080	Gasket, Cylinder Head
11116	11116-50070	Gasket, Cylinder Head, No.2
11117	90341-27006	Plug, W/head Straight Screw, No.1
11117	90430-27005	Gasket(For Cylinder Head Screw Plug)
11122	11122-20020	Bush, Intake Valve Guide
11122	11122-22040	Bush, Intake Valve Guide
11122	11123-20020	Bush, Intake Valve Guide
11126	11126-20020	Bush, Exhaust Valve Guide
11126	11127-20020	Bush, Exhaust Valve Guide
11131	11131-0F010	Seat, Intake Valve
11131	11132-0F010	Seat, Intake Valve
11135	11135-0F020	Seat, Exhaust Valve
11135	11136-0F020	Seat, Exhaust Valve
11151	90253-10006	Pin, Ring(For Camshaft Bearing Cap Setting)
11151	90253-A0005	Pin, Ring(For Camshaft Bearing Cap Setting)
11151	90311-A0004	Seal, Oil(For Camshaft Setting)
11155	90253-09001	Pin, Ring W/head
11155	90253-A0003	Pin, Ring W/head
11159	90080-11581	Bolt(For Camshaft Oil Feed Pipe)
11159	90080-10305	Bolt(For Head To Camshaft Bearing Cap)
11159	90080-10306	Bolt(For Head To Camshaft Bearing Cap)
11159	90119-07009	Bolt(For Camshaft Housing Set)
11159	90210-07003	Washer, Seal(For Head To Camshaft Bearing Cap)
11183	11183-50020	Plug, Semicircular
11188	11188-50010	Plug, Camshaft Housing
11193	11193-50010	Gasket, Spark Plug Tube
11201	11201-0F020	Cover Sub-Assy, Cylinder Head
11201	90105-A0103	Bolt(For Camshaft Housing Set)
11202	11202-0F020	Cover Sub-Assy, Cylinder Head, Lh
11213	11213-0F010	Gasket, Cylinder Head Cover
11214	11214-0F010	Gasket, Cylinder Head Cover, No.2
12108	12180-0D011	Cap Sub-Assy, Oil Filler
12108	12180-22011	Cap Sub-Assy, Oil Filler
12108	12180-38030	Cap Sub-Assy, Oil Filler
12108	90080-43032	Gasket(For Oil Filler Cap)
12108	90430-37140	Gasket(For Oil Filler Cap)
12108	90430-35001	Gasket(For Oil Filler Cap)
12185	12185-0F010	Housing, Oil Filler Cap
12185	12196-0F010	Gasket, Oil Filler Cap Housing
12281	12281-0F010	Hanger, Engine, No.1
12281	12281-0F011	Hanger, Engine, No.1
15044	15044-50020	Pipe Sub-Assy, Camshaft Oil Feed
15330	90068-14030	Ring, O(For Cam Timing Oil Control Valve)
15330	90099-14137	Ring, O(For Cam Timing Oil Control Valve)
15330	15330-0F010	Valve Assy, Camshaft Timing Oil Control
15340	15340-0F010	Valve Assy, Camshaft Timing Oil Control
15678	15678-46020	Filter, Oil Control Valve
9008010106	90080-10106	New Genuine Part
9008010325	90080-10325	New Genuine Part
9008010327	90080-10327	New Genuine Part
9012606002	90126-06002	New Genuine Part
9012608008	90126-08008	Bolt, Stud(For Water Outlet)
9017906298	90179-06298	NUT

OEM	Part name	Category
11101-09220	Head Sub-Assy, Cylinder	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
11102-09110	Head, Cylinder, Lh	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
11115-50080	Gasket, Cylinder Head	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
11116-50070	Gasket, Cylinder Head, No.2	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
11122-20020	Bush, Intake Valve Guide	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
11122-22040	Bush, Intake Valve Guide	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
11123-20020	Bush, Intake Valve Guide	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
11126-20020	Bush, Exhaust Valve Guide	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
11127-20020	Bush, Exhaust Valve Guide	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
11131-0F010	Seat, Intake Valve	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
11132-0F010	Seat, Intake Valve	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
11135-0F020	Seat, Exhaust Valve	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
11136-0F020	Seat, Exhaust Valve	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
11183-50020	Plug, Semicircular	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
11188-50010	Plug, Camshaft Housing	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
11193-50010	Gasket, Spark Plug Tube	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
11201-0F020	Cover Sub-Assy, Cylinder Head	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
11202-0F020	Cover Sub-Assy, Cylinder Head, Lh	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
11213-0F010	Gasket, Cylinder Head Cover	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
11214-0F010	Gasket, Cylinder Head Cover, No.2	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
12180-0D011	Cap Sub-Assy, Oil Filler	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
12180-22011	Cap Sub-Assy, Oil Filler	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
12180-38030	Cap Sub-Assy, Oil Filler	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
12185-0F010	Housing, Oil Filler Cap	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
12196-0F010	Gasket, Oil Filler Cap Housing	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
12281-0F010	Hanger, Engine, No.1	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
12281-0F011	Hanger, Engine, No.1	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
15044-50020	Pipe Sub-Assy, Camshaft Oil Feed	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
15330-0F010	Valve Assy, Camshaft Timing Oil Control	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
15340-0F010	Valve Assy, Camshaft Timing Oil Control	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
15678-46020	Filter, Oil Control Valve	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
90068-14030	Ring, O(For Cam Timing Oil Control Valve)	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
90080-10106	New Genuine Part	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
90080-10305	Bolt(For Head To Camshaft Bearing Cap)	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
90080-10306	Bolt(For Head To Camshaft Bearing Cap)	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
90080-10325	New Genuine Part	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
90080-10327	New Genuine Part	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
90080-11581	Bolt(For Camshaft Oil Feed Pipe)	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
90080-43032	Gasket(For Oil Filler Cap)	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
90099-14137	Ring, O(For Cam Timing Oil Control Valve)	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
90105-A0103	Bolt(For Camshaft Housing Set)	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
90119-07009	Bolt(For Camshaft Housing Set)	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
90126-06002	New Genuine Part	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
90126-08008	Bolt, Stud(For Water Outlet)	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
90179-06298	NUT	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
90201-10133	Washer, Plate(For Cylinder Head Set)	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
90210-07003	Washer, Seal(For Head To Camshaft Bearing Cap)	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
90253-09001	Pin, Ring W/head	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
90253-10006	Pin, Ring(For Camshaft Bearing Cap Setting)	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
90253-A0003	Pin, Ring W/head	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
90253-A0005	Pin, Ring(For Camshaft Bearing Cap Setting)	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
90311-A0004	Seal, Oil(For Camshaft Setting)	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
90341-27006	Plug, W/head Straight Screw, No.1	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
90430-27005	Gasket(For Cylinder Head Screw Plug)	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
90430-35001	Gasket(For Oil Filler Cap)	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
90430-37140	Gasket(For Oil Filler Cap)	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
90910-02132	Bolt(For Cylinder Head Set)	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
90910-02181	Bolt(For Cylinder Head Set)	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
90919-A5002	Sensor, Cam Position	Cylinder Head ([11.2006 - 04.2009] (0611-0904)2UZFE)
