UCK45

Toyota SEQUOIA · 2000 · 5,431 parts · 200 categories
UCK45 ×

← Back to categories

5,431 items

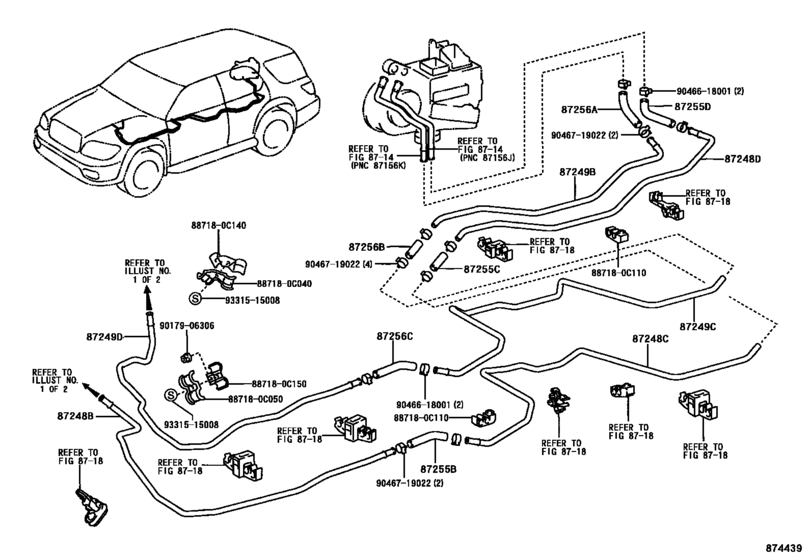

Heating & Air Conditioning - Water Piping ([09.2000 - ] REAR (0009- )) 18
#OEMPart name
87248 87248-0C020 Pipe, Heater Water Inlet, B
87248 87248-0C030 Pipe, Heater Water Inlet, C
87248 87248-0C050 Pipe, Heater Water Inlet, D
87249 87248-0C060 Pipe, Heater Water Outlet, B
87249 87248-0C040 Pipe, Heater Water Outlet, C
87249 87248-0C010 Pipe, Heater Water Outlet, D
87255 87245-0C120 Hose, Rear Heater Water Inlet, B
87255 99556-20200 Hose, Water(For Lpg Regulator Outlet)
87255 87245-0C130 Hose, Rear Heater Water Inlet, D
887180 88718-0C040 Pipe, Cooler Refrigerant Suction, No.2
887180 88718-0C050 Pipe, Cooler Refrigerant Suction, No.2
887180 88718-0C110 Pipe, Cooler Refrigerant Suction, No.2
887180 88718-44280 Pipe, Cooler Refrigerant Suction, No.2
887180 88718-0C140 Pipe, Cooler Refrigerant Suction, No.2
887180 88718-0C150 Pipe, Cooler Refrigerant Suction, No.2
9017906306 90179-06306 NUT
9046618001 90466-18001 CLIP HOSE
9046719022 90467-19022 Clip(For Ventilation Hose No.2)
