UCK45

Toyota SEQUOIA · 2000 · 5,431 parts · 200 categories
UCK45 ×

← Back to categories

5,431 items

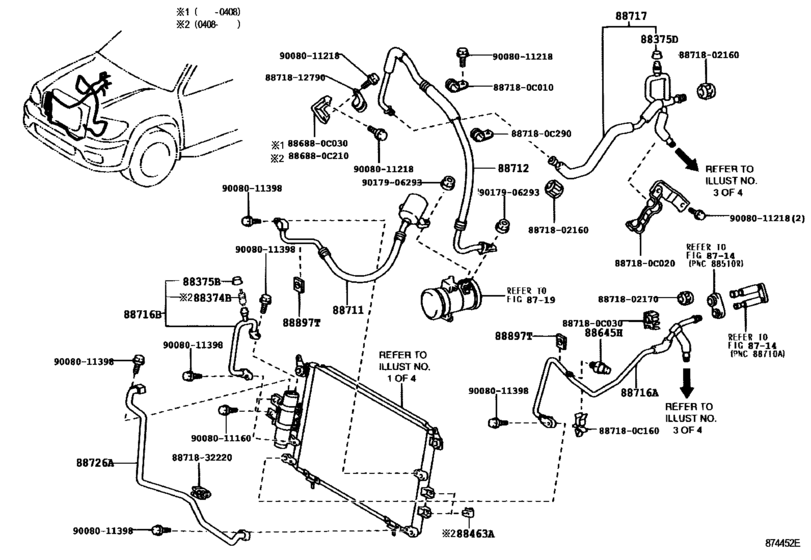

Heating & Air Conditioning - Cooler Piping ([09.2000 - ] FRONT PIPING---W(REAR A/C) (0009- )) 32
#OEMPart name
88374 88374-30010 Valve, Service, No.1
88375 88375-30280 Cap, Service Valve (For Cooler Pipe)
88375 88375-30290 Cap, Service Valve (For Cooler Pipe)
88463 88463-35120 Bracket, Cooler Condenser, No.1
88645 88645-17020 Switch, Pressure No.1
88645 88645-60030 Switch, Pressure No.1
88645 88645-60040 Switch, Pressure No.1
88711 88711-0C100 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-0C030 Hose, Cooler Refrigerant Suction, No.1
88712 88712-0C070 Hose, Cooler Refrigerant Suction, No.1
88716 88716-0C220 Pipe, Cooler Refrigerant Liquid, A
88716 88716-0C230 Pipe, Cooler Refrigerant Liquid, A
88716 88716-0C240 Pipe, Cooler Refrigerant Liquid, B
88717 88717-0C020 Pipe, Cooler Refrigerant Suction, No.1 - COOLER REFRIGERANT SUCTION, A
88717 88717-0C091 Pipe, Cooler Refrigerant Suction, No.1
88726 88726-0C020 Pipe, Cooler Refrigerant Liquid, A
88897 88897-0C010 Grommet, Cooler
886880 88688-0C030 Bracket, Cooler Refrigerant Hose, No.1
886880 88688-0C210 Bracket, Cooler Refrigerant Hose, No.1
887180 88718-0C010 Pipe, Cooler Refrigerant Suction, No.2
887180 88718-0C020 Pipe, Cooler Refrigerant Suction, No.2
887180 88718-0C030 Pipe, Cooler Refrigerant Suction, No.2
887180 88718-0C160 Pipe, Cooler Refrigerant Suction, No.2
887180 88718-0C290 Pipe, Cooler Refrigerant Suction, No.2
8871802160 88718-02160 Clamp(For Cooler Refrigerant Pipe), No.1
8871802170 88718-02170 Clamp(For Cooler Refrigerant Pipe), No.2
8871812790 88718-12790 Pipe, Cooler Refrigerant Suction, No.2
8871832220 88718-32220 Clamp(For Cooler Refrigerant Pipe), No.2
9008011160 90080-11160 New Genuine Part
9008011218 90080-11218 New Genuine Part
9008011398 90080-11398 New Genuine Part
9017906293 90179-06293 NUT
