UCK45

Toyota SEQUOIA · 2000 · 5,431 parts · 200 categories
UCK45 ×

← Back to categories

5,431 items

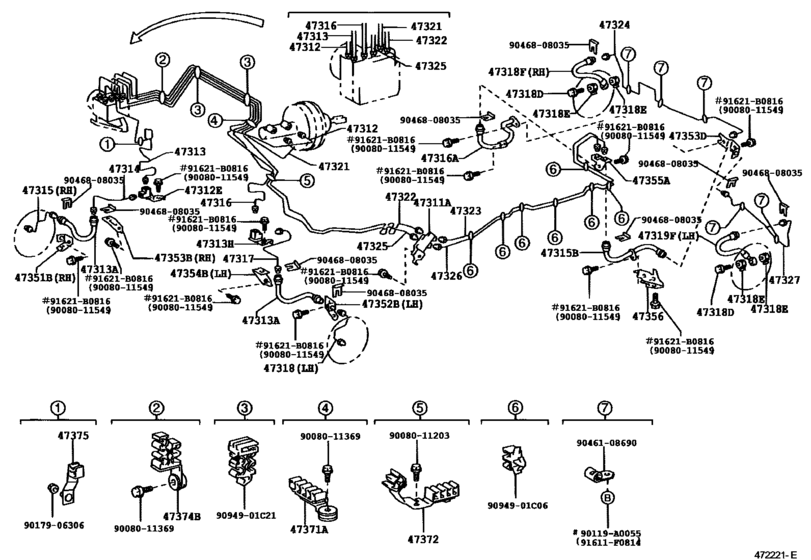

Brake Tube & Clamp ([09.2000 - ] (0009- )) 48
#OEMPart name
47311 90904-12068 Way(For Front Brake Tube)
47312 47312-0C040 Tube, Front Brake, No.2
47312 90904-12066 Way, No.2(For Front Brake Tube)
47313 47313-0C012 Tube, Front Brake, No.3
47313 90080-94073 Hose, Flexible, No.1(For Front)
47313 90904-12067 Way, No.3(For Front Brake Tube)
47314 47314-0C011 Tube, Front Brake, No.4
47315 47315-0C020 Tube, Front Brake, No.5
47315 90080-94102 Hose, Flexible(For Brake Tube)
47316 47316-0C040 Tube, Front Brake, No.6
47316 90080-94101 Hose, Flexible(For Rear Brake Tube)
47317 47317-0C020 Tube, Front Brake, No.7
47318 47318-0C020 Tube, Front Brake, No.8
47318 90401-10058 Bolt, Union(For Front Flexible Hose)
47318 47389-50020 Gasket(For Front Flexible Hose)
47318 47389-50021 Gasket(For Front Flexible Hose)
47318 90947-02C43 Hose, Flexible(For Rear Rh)
47319 90947-02C44 Hose, Flexible(For Rear Lh)
47321 47321-0C040 Tube, Rear Brake, No.1
47322 47322-0C070 Tube, Rear Brake, No.2
47323 47323-0C060 Tube, Rear Brake, No.3
47324 47324-0C070 Tube, Rear Brake, No.4
47325 47325-0C060 Tube, Rear Brake, No.5
47326 47326-0C030 Tube, Rear Brake, No.6
47327 47327-0C040 Tube, Rear Brake, No.7
47351 47351-35270 Bracket, Flexible Hose(For Front Rh)
47352 47352-35310 Bracket, Flexible Hose(For Front Lh)
47353 47353-35110 Bracket, Flexible Hose, No.3
47353 47353-34030 Bracket, Flexible Hose, No.7
47354 47354-35100 Bracket, Flexible Hose, No.4
47355 47351-34040 Bracket, Flexible Hose, No.5
47356 47352-34050 Bracket, Flexible Hose, No.6
47371 47371-34040 Clamp, Brake Tube, No.1
47372 47372-34050 Clamp, Brake Tube, No.2
47374 47374-34020 Clamp, Brake Tube, No.4
47375 47375-34010 Clamp, Brake Tube, No.5
90119 90119-A0055 New Genuine Part
91611 91611-F0814 Bolt
91621 91621-B0816 BOLT WWASHER
9094901 90949-01C06 Clamp, Brake Tube, No.6
9094901 90949-01C21 New Genuine Part
9008011203 90080-11203 New Genuine Part
9008011369 90080-11369 New Genuine Part
9008011549 90080-11549 New Genuine Part
9017906306 90179-06306 NUT
9046108690 90461-08690 Clamp, Brake Tube, No.9
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
