Search › Model › UCK40
UCK40

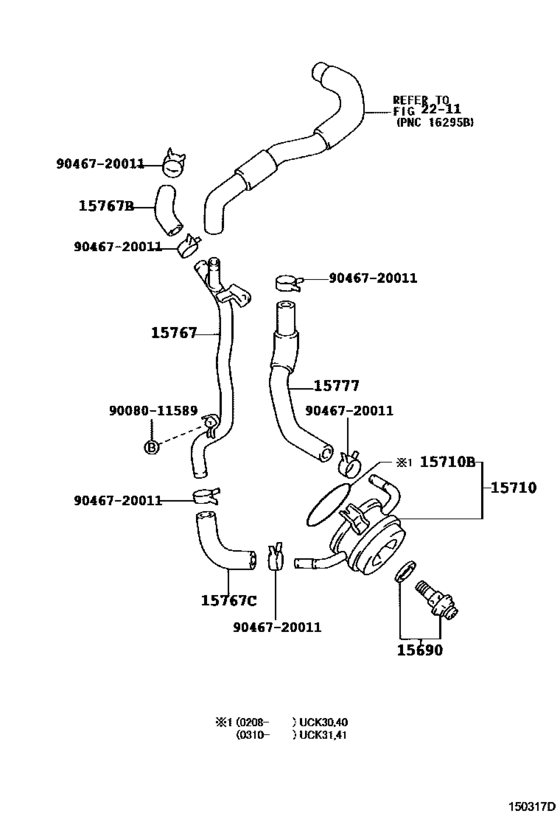

Engine Oil Cooler ([02.1999 - ] (9902- )2UZFE) 9
| # | OEM | Part name |
|---|---|---|
| 15690 | 15695-50010 | Valve Assy, Oil Cooler Relief |
| 15710 | 15710-50030 | Cooler Assy, Oil |
| 15710 | 90301-67004 | Ring, O(For Oil Thermostat Housing) |
| 15767 | 15767-0F011 | Pipe, Oil Cooler |
| 15767 | 16281-0F010 | Hose, Water By-Pass, No.4 |
| 15767 | 16282-0F010 | Hose, Water By-Pass, No.5 |
| 15777 | 15777-50060 | Hose, Oil Cooler |
| 9008011589 | 90080-11589 | New Genuine Part |
| 9046720011 | 90467-20011 | Clamp Or Clip(For Water By-Pass Hose No.2) |
| OEM | Part name | Category |
|---|---|---|
| 15695-50010 | Valve Assy, Oil Cooler Relief | Engine Oil Cooler ([02.1999 - ] (9902- )2UZFE) |
| 15710-50030 | Cooler Assy, Oil | Engine Oil Cooler ([02.1999 - ] (9902- )2UZFE) |
| 15767-0F011 | Pipe, Oil Cooler | Engine Oil Cooler ([02.1999 - ] (9902- )2UZFE) |
| 15777-50060 | Hose, Oil Cooler | Engine Oil Cooler ([02.1999 - ] (9902- )2UZFE) |
| 16281-0F010 | Hose, Water By-Pass, No.4 | Engine Oil Cooler ([02.1999 - ] (9902- )2UZFE) |
| 16282-0F010 | Hose, Water By-Pass, No.5 | Engine Oil Cooler ([02.1999 - ] (9902- )2UZFE) |
| 90080-11589 | New Genuine Part | Engine Oil Cooler ([02.1999 - ] (9902- )2UZFE) |
| 90301-67004 | Ring, O(For Oil Thermostat Housing) | Engine Oil Cooler ([02.1999 - ] (9902- )2UZFE) |
| 90467-20011 | Clamp Or Clip(For Water By-Pass Hose No.2) | Engine Oil Cooler ([02.1999 - ] (9902- )2UZFE) |
