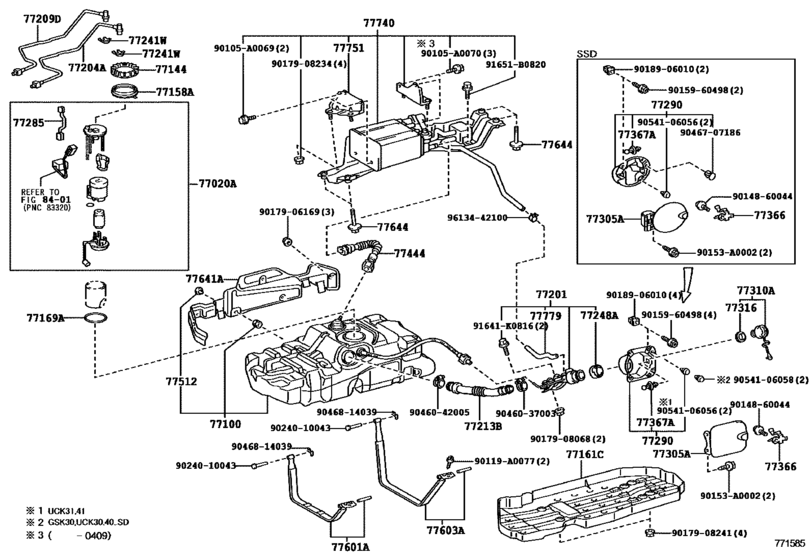

| 77001-0C050 |
Tank Assy, Fuel |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 77020-0C060 |
Tube Assy, Fuel Suction W/pump & Gage |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 77020-0C061 |
Tube Assy, Fuel Suction W/pump & Gage |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 77144-08010 |
Retainer, Fuel Pump Gauge |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 77158-08010 |
Support, Tank Suction Tube |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 77161-0C040 |
Protector, Fuel Tank, Lower |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 77169-0C010 |
Gasket, Fuel Suction Tube Set |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 77201-0C040 |
Pipe Sub-Assy, Fuel Tank Inlet |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 77204-0C020 |
Tube, Fuel Tank Return |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 77209-0C040 |
Tube Sub-Assy, Fuel Tank Main |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 77213-0C060 |
Hose, Fuel Tank To Filler Pipe |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 77241-02010 |
Clip, Tube Joint |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 77248-0C010 |
Holder, Fuel Tank Filler Pipe Cover |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 77290-0C040 |
Shield Assy, Fuel Tank Filler Pipe |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 77300-33070 |
Cap Assy, Fuel Tank |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 77300-47010 |
Cap Assy, Fuel Tank |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 77305-0C040 |
Lid Sub-Assy, Fuel Filler Opening |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 77316-33042 |
Gasket, Fuel Tank Cap |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 77366-35030 |
Spring, Fuel Filler Opening Lid Hinge |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 77367-35010 |
Stopper, Fuel Filler Opening Lid - FUEL FILLER LID PIN, NO.1 |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 77404-04020 |
Hose, Fuel Tank Vent |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 77404-04050 |
Hose, Fuel Tank Vent |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 77512-35140 |
Bracket, Fuel Tank |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 77601-0C020 |
Band Sub-Assy, Fuel Tank, No.1 |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 77601-0C030 |
Band Sub-Assy, Fuel Tank, No.1 |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 77603-0C020 |
Band Sub-Assy, Fuel Tank, No.2 |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 77603-0C030 |
Band Sub-Assy, Fuel Tank, No.2 |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 77644-0C020 |
Bolt, Fuel Tank |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 77697-0C010 |
Protector, Fuel Tank, No.1 |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 77730-0C020 |
Canister Assy, Charcoal |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 77751-0C020 |
Bracket, Charcoal Canister Base |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 77779-0C060 |
Tube, Charcoal Canister Outlet |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 77785-0C020 |
Bracket, Fuel Tube |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 90080-11347 |
New Genuine Part |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 90105-A0069 |
New Genuine Part |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 90105-A0070 |
New Genuine Part |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 90119-A0077 |
New Genuine Part |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 90148-60044 |
New Genuine Part |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 90153-A0002 |
New Genuine Part |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 90159-60498 |
SCREW W-WASHER |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 90179-06169 |
Nut |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 90179-08068 |
NUT |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 90179-08234 |
NUT |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 90179-08241 |
NUT |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 90189-06010 |
Clip(For Front Door Inside Handle) |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 90240-10043 |
New Genuine Part |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 90460-37003 |
Clamp, Fuel Hose |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 90460-40007 |
Clamp (For Fuel Filler Pipe) |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 90460-42005 |
Clamp (For Fuel Filler Pipe) |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 90467-07186 |
New Genuine Part |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 90468-14039 |
CLIP |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 90541-06056 |
Cushion(For Luggage Compartment Door Panel) |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 90541-06058 |
CUSHION |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 91641-K0816 |
BOLT WWASHER |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 91651-B0820 |
Bolt, Radiator Side Support Plate |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
| 96134-42100 |
Clip(For Water By-Pass Hose Assy) |
Fuel Tank & Tube ([08.2004 - ] FUEL TANK (0408- )) |
