Search › Model › UCK30

UCK30

Toyota TUNDRA · 1999 · 4,577 parts · 198 categories

4,577 items

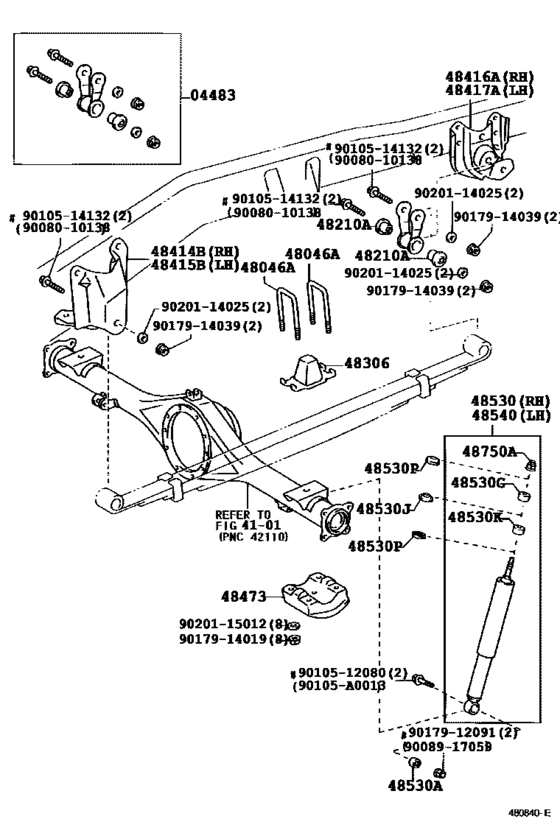

Rear Spring & Shock Absorber ([02.1999 - ] (9902- )) 34

#	OEM	Part name
4483	04483-0C010	Shackle Kit, Rear Spring
4483	04483-0C030	Shackle Kit, Rear Spring
48046	90117-14044	Bolt, U(For Rear Spring)
48046	90117-A0005	Bolt, U(For Rear Spring)
48210	90389-14053	Bush(For Rear Spring Shackle Upper)
48210	90389-A0006	Bush(For Rear Spring Shackle Upper)
48306	48306-04010	Bumper Sub-Assy, Rear Spring
48414	48414-34030	Bracket, Spring, No.3 Rh
48415	48415-34030	Bracket, Spring, No.3 Lh
48416	48416-0C010	Bracket, Spring, No.4 Rh
48417	48417-0C010	Bracket, Spring, No.4 Lh
48473	48473-34050	Seat, Rear Spring U Bolt
48530	48531-A9080	Absorber Assy, Shock, Rear Rh
48530	48531-A9170	Absorber Assy, Shock, Rear Rh
48530	90903-89013	Bush(For Rear Shock Absorber)
48530	90948-01084	Cushion, Rear Shock Absorber, No.1
48530	90948-02181	Retainer, Cushion, No.1(For Rear Shock Absorber)
48530	90948-01045	Cushion, Front Shock Absorber
48530	90948-02131	Retainer, Cushion, No.1
48530	48531-A9090	Absorber Assy, Shock, Rear Rh
48530	48531-A9180	Absorber Assy, Shock, Rear Rh
48530	48531-A9100	Absorber Assy, Shock, Rear Rh
48750	94184-01041	Nut
90105	90105-A0013	New Genuine Part
9008010138	90080-10138	New Genuine Part
9008917059	90089-17059	Nut(For Strut Rod)
9008917059	90178-A0011	Nut(For Strut Rod)
9010512080	90105-12080	Bolt, Upper Arm Set
9010514132	90105-14132	New Genuine Part
9017912091	90179-12091	Nut(For Front Suspension Lower Arm)
9017914019	90179-14019	Nut
9017914039	90179-14039	NUT
9020114025	90201-14025	New Genuine Part
9020115012	90201-15012	Washer(For Rear Spring U Bolt)

OEM	Part name	Category
04483-0C010	Shackle Kit, Rear Spring	Rear Spring & Shock Absorber ([02.1999 - ] (9902- ))
04483-0C030	Shackle Kit, Rear Spring	Rear Spring & Shock Absorber ([02.1999 - ] (9902- ))
48306-04010	Bumper Sub-Assy, Rear Spring	Rear Spring & Shock Absorber ([02.1999 - ] (9902- ))
48414-34030	Bracket, Spring, No.3 Rh	Rear Spring & Shock Absorber ([02.1999 - ] (9902- ))
48415-34030	Bracket, Spring, No.3 Lh	Rear Spring & Shock Absorber ([02.1999 - ] (9902- ))
48416-0C010	Bracket, Spring, No.4 Rh	Rear Spring & Shock Absorber ([02.1999 - ] (9902- ))
48417-0C010	Bracket, Spring, No.4 Lh	Rear Spring & Shock Absorber ([02.1999 - ] (9902- ))
48473-34050	Seat, Rear Spring U Bolt	Rear Spring & Shock Absorber ([02.1999 - ] (9902- ))
48531-A9080	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([02.1999 - ] (9902- ))
48531-A9090	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([02.1999 - ] (9902- ))
48531-A9100	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([02.1999 - ] (9902- ))
48531-A9170	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([02.1999 - ] (9902- ))
48531-A9180	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([02.1999 - ] (9902- ))
90080-10138	New Genuine Part	Rear Spring & Shock Absorber ([02.1999 - ] (9902- ))
90089-17059	Nut(For Strut Rod)	Rear Spring & Shock Absorber ([02.1999 - ] (9902- ))
90105-12080	Bolt, Upper Arm Set	Rear Spring & Shock Absorber ([02.1999 - ] (9902- ))
90105-14132	New Genuine Part	Rear Spring & Shock Absorber ([02.1999 - ] (9902- ))
90105-A0013	New Genuine Part	Rear Spring & Shock Absorber ([02.1999 - ] (9902- ))
90117-14044	Bolt, U(For Rear Spring)	Rear Spring & Shock Absorber ([02.1999 - ] (9902- ))
90117-A0005	Bolt, U(For Rear Spring)	Rear Spring & Shock Absorber ([02.1999 - ] (9902- ))
90178-A0011	Nut(For Strut Rod)	Rear Spring & Shock Absorber ([02.1999 - ] (9902- ))
90179-12091	Nut(For Front Suspension Lower Arm)	Rear Spring & Shock Absorber ([02.1999 - ] (9902- ))
90179-14019	Nut	Rear Spring & Shock Absorber ([02.1999 - ] (9902- ))
90179-14039	NUT	Rear Spring & Shock Absorber ([02.1999 - ] (9902- ))
90201-14025	New Genuine Part	Rear Spring & Shock Absorber ([02.1999 - ] (9902- ))
90201-15012	Washer(For Rear Spring U Bolt)	Rear Spring & Shock Absorber ([02.1999 - ] (9902- ))
90389-14053	Bush(For Rear Spring Shackle Upper)	Rear Spring & Shock Absorber ([02.1999 - ] (9902- ))
90389-A0006	Bush(For Rear Spring Shackle Upper)	Rear Spring & Shock Absorber ([02.1999 - ] (9902- ))
90903-89013	Bush(For Rear Shock Absorber)	Rear Spring & Shock Absorber ([02.1999 - ] (9902- ))
90948-01045	Cushion, Front Shock Absorber	Rear Spring & Shock Absorber ([02.1999 - ] (9902- ))
90948-01084	Cushion, Rear Shock Absorber, No.1	Rear Spring & Shock Absorber ([02.1999 - ] (9902- ))
90948-02131	Retainer, Cushion, No.1	Rear Spring & Shock Absorber ([02.1999 - ] (9902- ))
90948-02181	Retainer, Cushion, No.1(For Rear Shock Absorber)	Rear Spring & Shock Absorber ([02.1999 - ] (9902- ))
94184-01041	Nut	Rear Spring & Shock Absorber ([02.1999 - ] (9902- ))

Source: Public OEM parts-catalog data
Variants: 2 / 12
Category: 198
Collected: 2026-08-04
