UCK30

Toyota TUNDRA · 1999 · 4,577 parts · 198 categories
UCK30 ×

← Back to categories

4,577 items

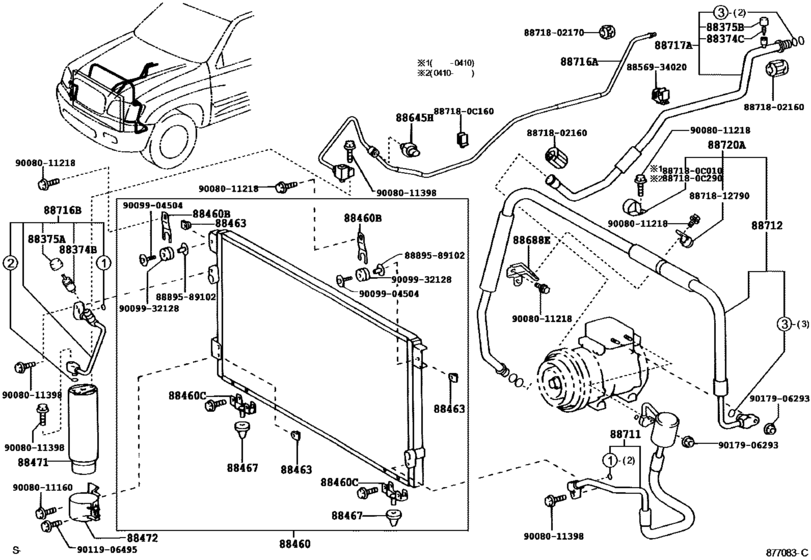

Heating & Air Conditioning - Cooler Piping ([08.2004 - ] (0408- )UCK30,40) 38
#OEMPart name
88374 88374-30010 Valve, Service, No.1
88375 88375-02060 Cap, Service Valve, No.1
88375 88375-30280 Cap, Service Valve (For Cooler Pipe)
88375 88375-30290 Cap, Service Valve (For Cooler Pipe)
88460 88460-0C050 Condenser Assy, Cooler
88460 88688-0C010 Bracket, Cooler Condenser, No.1
88460 88688-0C020 Bracket, Cooler Condenser, No.2
88463 88463-35120 Bracket, Cooler Condenser, No.1
88467 88467-32060 Cushion, Cooler Condenser, No.1
88471 88471-34010 Receiver & Dryer Assy, Cooler
88472 88472-0C010 Bracket, Receiver Tank, No.1
88645 88645-34010 Switch, Pressure
88645 88645-04040 Switch, Pressure
88688 88688-0C210 Bracket, Cooler Refrigerant Hose, No.1
88711 88711-0C060 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-0C021 Hose, Cooler Refrigerant Suction, No.1
88712 88712-0C022 Hose, Cooler Refrigerant Suction, No.1
88716 88716-0C210 Pipe, Cooler Refrigerant Liquid, A
88716 88716-0C140 Pipe, Cooler Refrigerant Liquid, B
88717 88717-0C080 Pipe, Cooler Refrigerant Suction, A
88720 88720-0C011 Hose & Accessory, Air Conditioner
88720 88720-0C012 Hose & Accessory, Air Conditioner
887180 88718-0C010 Pipe, Cooler Refrigerant Suction, No.2
887180 88718-0C160 Pipe, Cooler Refrigerant Suction, No.2
887180 88718-0C290 Pipe, Cooler Refrigerant Suction, No.2
8856934020 88569-34020 Clamp (for Cooler Relay)
8871802160 88718-02160 Clamp(For Cooler Refrigerant Pipe), No.1
8871802170 88718-02170 Clamp(For Cooler Refrigerant Pipe), No.2
8871812790 88718-12790 Pipe, Cooler Refrigerant Suction, No.2
8889589102 88895-89102 Bush
9008011160 90080-11160 New Genuine Part
9008011218 90080-11218 New Genuine Part
9008011398 90080-11398 New Genuine Part
9009904504 90099-04504 New Genuine Part
9009904504 93385-18016 New Genuine Part
9009932128 90099-32128 Grommet
9011906495 90119-06495 New Genuine Part
9017906293 90179-06293 NUT
