Search › Model › UCK30

UCK30

Toyota TUNDRA · 1999 · 4,577 parts · 198 categories

4,577 items

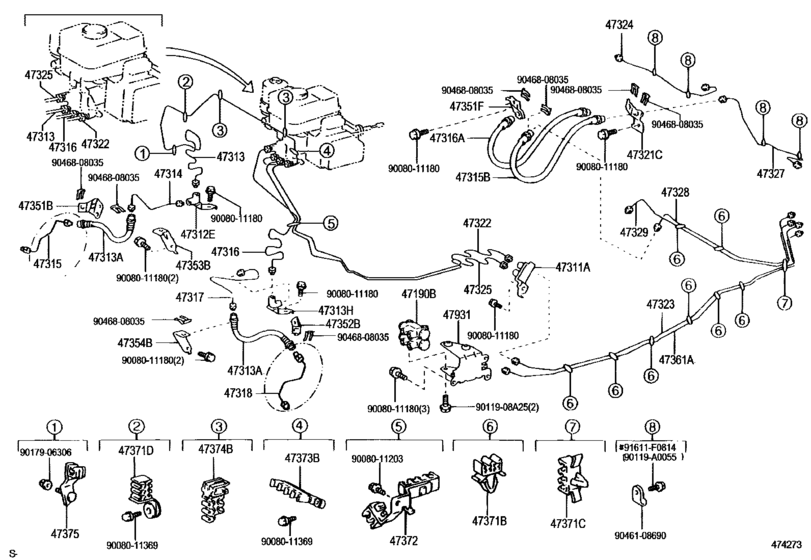

Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- )) 52

#	OEM	Part name
47190	47150-34020	Valve Assy, Blend Proportioning
47311	90904-12068	Way(For Front Brake Tube)
47312	90904-12066	Way, No.2(For Front Brake Tube)
47313	47313-0C040	Tube, Front Brake, No.3
47313	47313-0C070	Tube, Front Brake, No.3
47313	90080-94073	Hose, Flexible, No.1(For Front)
47313	90904-12067	Way, No.3(For Front Brake Tube)
47314	47314-0C011	Tube, Front Brake, No.4
47315	47315-0C020	Tube, Front Brake, No.5
47315	90080-94182	Hose, Flexible(For Brake Tube)
47316	47316-0C070	Tube, Front Brake, No.6
47316	47316-0C080	Tube, Front Brake, No.6
47316	90080-94070	Hose, Flexible(For Rear Brake Tube)
47316	90080-94181	Hose, Flexible(For Rear Brake Tube)
47317	47317-0C020	Tube, Front Brake, No.7
47318	47318-0C020	Tube, Front Brake, No.8
47321	47353-0C010	Bracket, Flexible Hose(For Rear Brake Flexible Hose)
47322	47322-0C080	Tube, Rear Brake, No.2
47322	47322-0C100	Tube, Rear Brake, No.2
47323	47323-0C070	Tube, Rear Brake, No.3
47324	47324-0C014	Tube, Rear Brake, No.4
47324	47324-0C041	Tube, Rear Brake, No.4
47325	47325-0C051	Tube, Rear Brake, No.5
47325	47325-0C080	Tube, Rear Brake, No.5
47327	47327-0C021	Tube, Rear Brake, No.7
47328	47328-0C020	Tube, Rear Brake, No.8
47329	47329-0C010	Tube, Rear Brake, No.9
47351	47351-35270	Bracket, Flexible Hose(For Front Rh)
47351	47351-0C010	Bracket, Flexible Hose, No.2
47352	47352-35310	Bracket, Flexible Hose(For Front Lh)
47353	47353-35110	Bracket, Flexible Hose, No.3
47354	47354-35100	Bracket, Flexible Hose, No.4
47361	47361-0C040	Tube, Front Brake, No.10
47371	90949-01C06	Clamp, Brake Tube, No.6
47371	90949-A1002	Clamp, Brake Tube, No.7
47371	90080-93055	Clamp, Brake Tube, No.8
47372	47372-34050	Clamp, Brake Tube, No.2
47373	90080-93051	Clamp, Brake Tube, No.3
47374	90080-46336	Clamp, Brake Tube, No.4
47375	47375-34010	Clamp, Brake Tube, No.5
47931	47191-34010	Bracket, Load Sensing Valve
47931	47931-34020	Bracket, Load Sensing Valve
90119	90119-A0055	New Genuine Part
91611	91611-F0814	Bolt
9011908	90119-08A25	BOLT WWASHER
9008011180	90080-11180	BOLT WWASHER
9008011203	90080-11203	New Genuine Part
9008011369	90080-11369	New Genuine Part
9017906306	90179-06306	NUT
9046108690	90461-08690	Clamp, Brake Tube, No.9
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part

OEM	Part name	Category
47150-34020	Valve Assy, Blend Proportioning	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
47191-34010	Bracket, Load Sensing Valve	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
47313-0C040	Tube, Front Brake, No.3	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
47313-0C070	Tube, Front Brake, No.3	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
47314-0C011	Tube, Front Brake, No.4	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
47315-0C020	Tube, Front Brake, No.5	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
47316-0C070	Tube, Front Brake, No.6	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
47316-0C080	Tube, Front Brake, No.6	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
47317-0C020	Tube, Front Brake, No.7	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
47318-0C020	Tube, Front Brake, No.8	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
47322-0C080	Tube, Rear Brake, No.2	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
47322-0C100	Tube, Rear Brake, No.2	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
47323-0C070	Tube, Rear Brake, No.3	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
47324-0C014	Tube, Rear Brake, No.4	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
47324-0C041	Tube, Rear Brake, No.4	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
47325-0C051	Tube, Rear Brake, No.5	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
47325-0C080	Tube, Rear Brake, No.5	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
47327-0C021	Tube, Rear Brake, No.7	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
47328-0C020	Tube, Rear Brake, No.8	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
47329-0C010	Tube, Rear Brake, No.9	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
47351-0C010	Bracket, Flexible Hose, No.2	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
47351-35270	Bracket, Flexible Hose(For Front Rh)	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
47352-35310	Bracket, Flexible Hose(For Front Lh)	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
47353-0C010	Bracket, Flexible Hose(For Rear Brake Flexible Hose)	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
47353-35110	Bracket, Flexible Hose, No.3	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
47354-35100	Bracket, Flexible Hose, No.4	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
47361-0C040	Tube, Front Brake, No.10	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
47372-34050	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
47375-34010	Clamp, Brake Tube, No.5	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
47931-34020	Bracket, Load Sensing Valve	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
90080-11180	BOLT WWASHER	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
90080-11203	New Genuine Part	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
90080-11369	New Genuine Part	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
90080-46336	Clamp, Brake Tube, No.4	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
90080-93051	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
90080-93055	Clamp, Brake Tube, No.8	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
90080-94070	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
90080-94073	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
90080-94181	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
90080-94182	Hose, Flexible(For Brake Tube)	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
90119-08A25	BOLT WWASHER	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
90119-A0055	New Genuine Part	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
90179-06306	NUT	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
90461-08690	Clamp, Brake Tube, No.9	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
90468-08035	CLIP	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
90468-A0007	New Genuine Part	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
90904-12066	Way, No.2(For Front Brake Tube)	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
90904-12067	Way, No.3(For Front Brake Tube)	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
90904-12068	Way(For Front Brake Tube)	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
90949-01C06	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
90949-A1002	Clamp, Brake Tube, No.7	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
91611-F0814	Bolt	Brake Tube & Clamp ([08.2004 - ] W(VSC) (0408- ))
