Search › Model › UCF31

UCF31

Toyota CELSIOR · 2000 · 8,816 parts · 250 categories

8,816 items

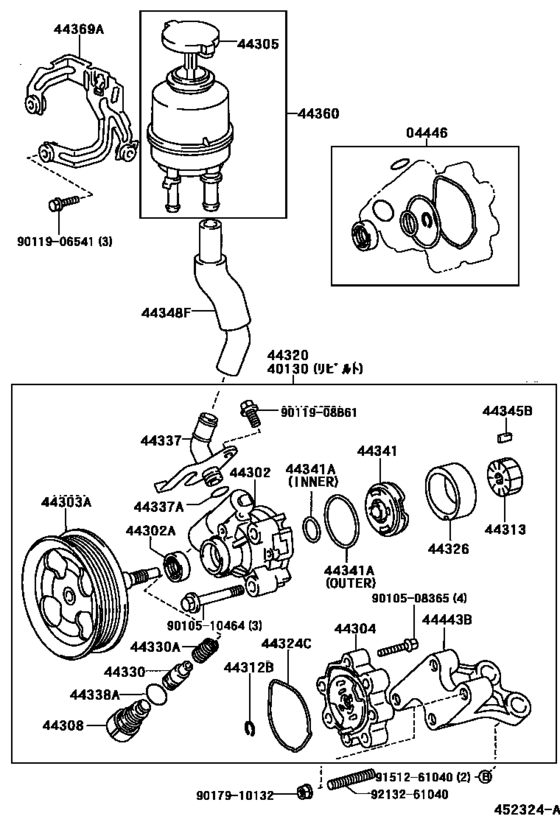

Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC) 58

#	OEM	Part name
4446	04446-32050	Gasket Kit, Power Steering Pump
40130	40130-50070	Pump Assy,vane Rebuilt
40130	44310-50070	Pump Assy, Vane
44302	44302-50030	Housing Sub-Assy, Vane Pump, Front
44302	90311-15012	Seal, Oil, No.1(For Vane Pump Housing)
44303	44303-50010	Shaft Sub-Assy, W/pulley
44304	44304-50010	Housing Sub-Assy, Vane Pump, Rear
44305	44305-28020	Cap Sub-Assy, Vane Pump Oil Reservoir
44305	44305-28051	Cap Sub-Assy, Vane Pump Oil Reservoir
44308	44308-50010	Union Sub-Assy, Pressure Port
44312	90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)
44313	44313-32060	Rotor, Vane Pump
44313	44313-32070	Rotor, Vane Pump
44313	44313-32080	Rotor, Vane Pump
44313	44313-32090	Rotor, Vane Pump
44313	44313-32100	Rotor, Vane Pump
44324	90903-01007	Ring, O(For Pump Housing Rear)
44326	44325-28010	Ring, Vane Pump Cam
44326	44325-28020	Ring, Vane Pump Cam
44326	44325-28030	Ring, Vane Pump Cam
44326	44325-28040	Ring, Vane Pump Cam
44326	44325-28050	Ring, Vane Pump Cam
44330	44330-28190	Valve Assy, Flow Control
44330	44330-35310	Valve Assy, Flow Control
44330	44330-28200	Valve Assy, Flow Control
44330	44330-35320	Valve Assy, Flow Control
44330	44330-28210	Valve Assy, Flow Control
44330	44330-35330	Valve Assy, Flow Control
44330	44330-28220	Valve Assy, Flow Control
44330	44330-35340	Valve Assy, Flow Control
44330	44330-28230	Valve Assy, Flow Control
44330	44330-35350	Valve Assy, Flow Control
44330	44330-28240	Valve Assy, Flow Control
44330	44330-35360	Valve Assy, Flow Control
44330	90501-12103	Spring, Compression(For Flow Control Valve)
44330	90501-13069	Spring, Compression(For Flow Control Valve)
44337	44337-50020	Union, Power Steering Suction Port
44337	90301-11020	Ring, O, No.1(For Vane Pump Housing)
44338	90301-18009	Ring, O(For Pressure Port Union)
44341	44341-32031	Plate, Vane Pump Side, Front
44341	90301-16012	Ring, O(For Vane Pump Front Side Plate)
44341	90301-45003	Ring, O(For Vane Pump Front Side Plate)
44345	44345-32100	Plate, Vane Pump
44345	44345-32110	Plate, Vane Pump
44345	44345-32120	Plate, Vane Pump
44345	44345-32130	Plate, Vane Pump
44345	44345-32140	Plate, Vane Pump
44348	44348-50020	Hose, Oil Reservoir To Vane Pump
44360	44360-22170	Reservoir Assy, Vane Pump Oil
44369	44390-50010	Bracket, Oil Reservoir, No.1
44443	44443-50010	Bracket, Vane Pump
9011908	90119-08B61	New Genuine Part
9010508365	90105-08365	Bolt (For Transaxle Rear Cover Setting)
9010510464	90105-10464	New Genuine Part
9011906541	90119-06541	New Genuine Part
9017910132	90179-10132	Nut
9151261040	91512-61040	New Genuine Part
9213261040	92132-61040	New Genuine Part

OEM	Part name	Category
04446-32050	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
40130-50070	Pump Assy,vane Rebuilt	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44302-50030	Housing Sub-Assy, Vane Pump, Front	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44303-50010	Shaft Sub-Assy, W/pulley	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44304-50010	Housing Sub-Assy, Vane Pump, Rear	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44305-28020	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44305-28051	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44308-50010	Union Sub-Assy, Pressure Port	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44310-50070	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44313-32060	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44313-32070	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44313-32080	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44313-32090	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44313-32100	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44325-28010	Ring, Vane Pump Cam	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44325-28020	Ring, Vane Pump Cam	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44325-28030	Ring, Vane Pump Cam	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44325-28040	Ring, Vane Pump Cam	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44325-28050	Ring, Vane Pump Cam	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44330-28190	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44330-28200	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44330-28210	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44330-28220	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44330-28230	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44330-28240	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44330-35310	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44330-35320	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44330-35330	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44330-35340	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44330-35350	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44330-35360	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44337-50020	Union, Power Steering Suction Port	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44341-32031	Plate, Vane Pump Side, Front	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44345-32100	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44345-32110	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44345-32120	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44345-32130	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44345-32140	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44348-50020	Hose, Oil Reservoir To Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44360-22170	Reservoir Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44390-50010	Bracket, Oil Reservoir, No.1	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
44443-50010	Bracket, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
90105-08365	Bolt (For Transaxle Rear Cover Setting)	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
90105-10464	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
90119-06541	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
90119-08B61	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
90179-10132	Nut	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
90301-11020	Ring, O, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
90301-16012	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
90301-18009	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
90301-45003	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
90311-15012	Seal, Oil, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
90501-12103	Spring, Compression(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
90501-13069	Spring, Compression(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
90903-01007	Ring, O(For Pump Housing Rear)	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
91512-61040	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
92132-61040	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([08.2000 - ] (0008- )5FC)
