UCF31

Toyota CELSIOR · 2000 · 8,816 parts · 250 categories
UCF31 ×

← Back to categories

8,816 items

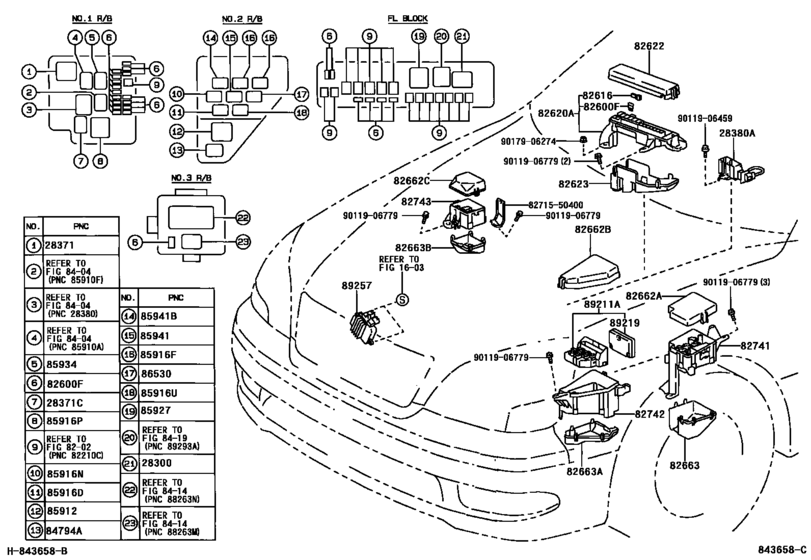

Switch & Relay & Computer ([08.2000 - 07.2003] ｴﾝｼﾞﾝﾙ-ﾑ (0008-0307)) 36
#OEMPart name
28300 28300-10020 Relay Assy, Starter
28371 90987-02016 Relay Assy, Starter
28371 90987-02025 Relay
28371 90987-02012 Relay, Ignition, No.1
28380 23080-50090 Resister, Fuel Pump
82600 90982-09007 Fusible Link
82600 90982-09008 Fusible Link
82600 90982-09009 Fusible Link
82600 90982-09010 Fusible Link
82600 90982-09011 Fusible Link
82600 90982-09012 Fusible Link
82600 90982-09013 Fusible Link
82616 82616-20010 Puller, Fuse
82620 82620-50070 Block Assy, Fusible Link
82622 82622-50010 Cover, Fusible Link, Upper
82622 82622-50021 Cover, Fusible Link, Upper
82623 82623-50010 Cover, Fusible Link, Lower
82662 82662-50070 Cover, Relay Block, Upper, No.1
82662 82662-50080 Cover, Relay Block, Upper, No.2
82662 82662-50090 Cover, Relay Block, Upper, No.3
82663 82663-50040 Cover, Relay Block, Lower
82663 82663-50050 Cover, Relay Block, Lower, No.2
82663 82663-50060 Cover, Relay Block, Lower, No.3
82741 82741-50020 Block, Engine Room Relay
82742 82742-50010 Block, Engine Room Relay, No.2
82743 82743-50020 Block, Engine Room Relay, No.3
84794 90987-02015 Relay, Ignition, No.2
85912 90987-04006 Relay Assy (For Heater Blower Motor)
85912 90987-04010 Relay Assy (For Heater Blower Motor)
89211 89211-50020 Computer, Multiplex Network Body
89219 89219-50020 Computer, Multiplex Network Front Lamp
89257 89257-30040 Computer, Cooling Fan
8271550400 82715-50400 Bracket,wiring Harness Clamp
9011906459 90119-06459 New Genuine Part
9011906779 90119-06779 BOLT W-WASHER
9017906274 90179-06274 Nut
