Search › Model › UCF21

UCF21

Toyota CELSIOR · 1994 · 9,106 parts · 241 categories

9,106 items

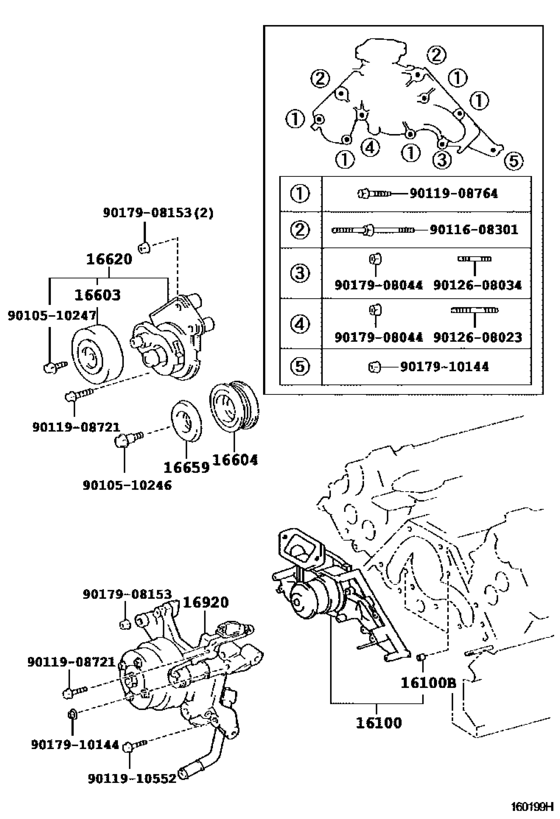

Water Pump ([10.1994 - 07.1997] (9410-9707)) 27

#	OEM	Part name
16100	16100-50022	Pump Assy, Engine Water
16100	16100-50023	Pump Assy, Engine Water
16100	90253-11021	Pin, Ring
16603	16603-0W010	Pulley Sub-Assy, Idler, No.1
16603	16603-50010	Pulley Sub-Assy, Idler, No.1
16604	16604-50010	Pulley Sub-Assy, Idler, No.2
16604	16604-50030	Pulley Sub-Assy, Idler, No.2
16620	16620-0W030	Tensioner Assy, V-Ribbed Belt
16620	16620-0W035	Tensioner Assy, V-Ribbed Belt
16620	16620-0W031	Tensioner Assy, V-Ribbed Belt
16620	16620-0W032	Tensioner Assy, V-Ribbed Belt
16620	16620-0W033	Tensioner Assy, V-Ribbed Belt
16620	16620-0W034	Tensioner Assy, V-Ribbed Belt
16659	16659-50020	Plate, Idler Pulley Cover, No.2
16659	16659-50021	Plate, Idler Pulley Cover, No.2
16920	16920-50050	Pump Assy, Hydraulic Motor Vane
9010510246	90105-10246	BOLT WASHER BASED
9010510247	90105-10247	Bolt(For Idler Pulley)
9011608301	90116-08301	BOLT STUD
9011908721	90119-08721	BOLT WWASHER
9011908764	90119-08764	BOLT W-WASHER
9011910552	90119-10552	BOLT WWASHER
9012608023	90126-08023	New Genuine Part
9012608034	90126-08034	STUD HEX LOBULAR
9017908044	90179-08044	NUT
9017908153	90179-08153	NUT
9017910144	90179-10144	NUT

OEM	Part name	Category
16100-50022	Pump Assy, Engine Water	Water Pump ([10.1994 - 07.1997] (9410-9707))
16100-50023	Pump Assy, Engine Water	Water Pump ([10.1994 - 07.1997] (9410-9707))
16603-0W010	Pulley Sub-Assy, Idler, No.1	Water Pump ([10.1994 - 07.1997] (9410-9707))
16603-50010	Pulley Sub-Assy, Idler, No.1	Water Pump ([10.1994 - 07.1997] (9410-9707))
16604-50010	Pulley Sub-Assy, Idler, No.2	Water Pump ([10.1994 - 07.1997] (9410-9707))
16604-50030	Pulley Sub-Assy, Idler, No.2	Water Pump ([10.1994 - 07.1997] (9410-9707))
16620-0W030	Tensioner Assy, V-Ribbed Belt	Water Pump ([10.1994 - 07.1997] (9410-9707))
16620-0W031	Tensioner Assy, V-Ribbed Belt	Water Pump ([10.1994 - 07.1997] (9410-9707))
16620-0W032	Tensioner Assy, V-Ribbed Belt	Water Pump ([10.1994 - 07.1997] (9410-9707))
16620-0W033	Tensioner Assy, V-Ribbed Belt	Water Pump ([10.1994 - 07.1997] (9410-9707))
16620-0W034	Tensioner Assy, V-Ribbed Belt	Water Pump ([10.1994 - 07.1997] (9410-9707))
16620-0W035	Tensioner Assy, V-Ribbed Belt	Water Pump ([10.1994 - 07.1997] (9410-9707))
16659-50020	Plate, Idler Pulley Cover, No.2	Water Pump ([10.1994 - 07.1997] (9410-9707))
16659-50021	Plate, Idler Pulley Cover, No.2	Water Pump ([10.1994 - 07.1997] (9410-9707))
16920-50050	Pump Assy, Hydraulic Motor Vane	Water Pump ([10.1994 - 07.1997] (9410-9707))
90105-10246	BOLT WASHER BASED	Water Pump ([10.1994 - 07.1997] (9410-9707))
90105-10247	Bolt(For Idler Pulley)	Water Pump ([10.1994 - 07.1997] (9410-9707))
90116-08301	BOLT STUD	Water Pump ([10.1994 - 07.1997] (9410-9707))
90119-08721	BOLT WWASHER	Water Pump ([10.1994 - 07.1997] (9410-9707))
90119-08764	BOLT W-WASHER	Water Pump ([10.1994 - 07.1997] (9410-9707))
90119-10552	BOLT WWASHER	Water Pump ([10.1994 - 07.1997] (9410-9707))
90126-08023	New Genuine Part	Water Pump ([10.1994 - 07.1997] (9410-9707))
90126-08034	STUD HEX LOBULAR	Water Pump ([10.1994 - 07.1997] (9410-9707))
90179-08044	NUT	Water Pump ([10.1994 - 07.1997] (9410-9707))
90179-08153	NUT	Water Pump ([10.1994 - 07.1997] (9410-9707))
90179-10144	NUT	Water Pump ([10.1994 - 07.1997] (9410-9707))
90253-11021	Pin, Ring	Water Pump ([10.1994 - 07.1997] (9410-9707))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 241
Collected: 2026-08-02
