Search › Model › UCF21

UCF21

Toyota CELSIOR · 1994 · 9,106 parts · 241 categories

9,106 items

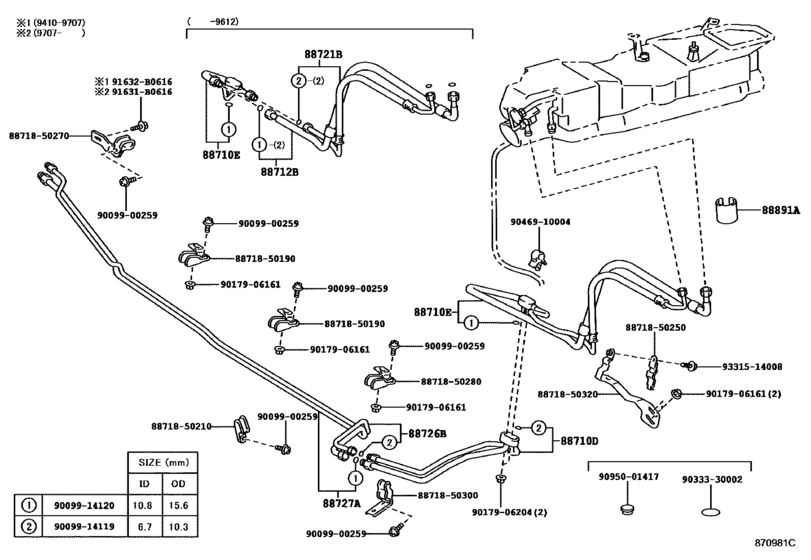

Heating & Air Conditioning - Cooler Piping ([10.1994 - ] REAR COOLER (9410- )UCF21) 31

#	OEM	Part name
88710	88710-40250	Tube Assy, Air Conditioner
88710	88720-50060	Tube Assy, Air Conditioner
88710	88710-50460	Tube Assy, Air Conditioner
88710	88710-50470	Tube & Accessory Assy, Air Conditioner
88712	88712-50191	Hose, Cooler Refrigerant Suction
88721	88721-50021	Hose, Liquid, B
88726	88716-50460	Pipe, Cooler Refrigerant Liquid, B
88726	88716-50320	Pipe, Cooler Refrigerant Liquid, B
88727	88717-50330	Pipe, Cooler Refrigerant Suction, A
88727	88717-50260	Pipe, Cooler Refrigerant Suction, A
88891	88578-50030	Packing A (For Cooler)
91631	91631-B0616	BOLT WWASHER
91632	91632-B0616	New Genuine Part
8871850190	88718-50190	Pipe, Cooler Refrigerant Suction, No.2
8871850210	88718-50210	Pipe, Cooler Refrigerant Suction, No.2
8871850250	88718-50250	Pipe, Cooler Refrigerant Suction, No.2
8871850270	88718-50270	Pipe, Cooler Refrigerant Suction, No.2
8871850280	88718-50280	Pipe, Cooler Refrigerant Suction, No.2
8871850300	88718-50300	Pipe, Cooler Refrigerant Suction, No.2
8871850320	88718-50320	Pipe, Cooler Refrigerant Suction, No.2
9009900259	90099-00259	New Genuine Part
9009914119	90099-14119	Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119	90099-14119-TH	O RING
9009914120	90099-14120	O-Ring, Cooler Evaporator No.1(Discharge)
9017906161	90179-06161	Bolt, Union(For Clutch Accumulator)
9017906204	90179-06204	NUT
9033330002	90333-30002	Cover, Front Floor Hole
9046910004	90469-10004	New Genuine Part
9095001417	90950-01417	PLUG
9095001417	90950-01865	PLUG HOLE
9331514008	93315-14008	New Genuine Part

OEM	Part name	Category
88578-50030	Packing A (For Cooler)	Heating & Air Conditioning - Cooler Piping ([10.1994 - ] REAR COOLER (9410- )UCF21)
88710-40250	Tube Assy, Air Conditioner	Heating & Air Conditioning - Cooler Piping ([10.1994 - ] REAR COOLER (9410- )UCF21)
88710-50460	Tube Assy, Air Conditioner	Heating & Air Conditioning - Cooler Piping ([10.1994 - ] REAR COOLER (9410- )UCF21)
88710-50470	Tube & Accessory Assy, Air Conditioner	Heating & Air Conditioning - Cooler Piping ([10.1994 - ] REAR COOLER (9410- )UCF21)
88712-50191	Hose, Cooler Refrigerant Suction	Heating & Air Conditioning - Cooler Piping ([10.1994 - ] REAR COOLER (9410- )UCF21)
88716-50320	Pipe, Cooler Refrigerant Liquid, B	Heating & Air Conditioning - Cooler Piping ([10.1994 - ] REAR COOLER (9410- )UCF21)
88716-50460	Pipe, Cooler Refrigerant Liquid, B	Heating & Air Conditioning - Cooler Piping ([10.1994 - ] REAR COOLER (9410- )UCF21)
88717-50260	Pipe, Cooler Refrigerant Suction, A	Heating & Air Conditioning - Cooler Piping ([10.1994 - ] REAR COOLER (9410- )UCF21)
88717-50330	Pipe, Cooler Refrigerant Suction, A	Heating & Air Conditioning - Cooler Piping ([10.1994 - ] REAR COOLER (9410- )UCF21)
88718-50190	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([10.1994 - ] REAR COOLER (9410- )UCF21)
88718-50210	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([10.1994 - ] REAR COOLER (9410- )UCF21)
88718-50250	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([10.1994 - ] REAR COOLER (9410- )UCF21)
88718-50270	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([10.1994 - ] REAR COOLER (9410- )UCF21)
88718-50280	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([10.1994 - ] REAR COOLER (9410- )UCF21)
88718-50300	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([10.1994 - ] REAR COOLER (9410- )UCF21)
88718-50320	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([10.1994 - ] REAR COOLER (9410- )UCF21)
88720-50060	Tube Assy, Air Conditioner	Heating & Air Conditioning - Cooler Piping ([10.1994 - ] REAR COOLER (9410- )UCF21)
88721-50021	Hose, Liquid, B	Heating & Air Conditioning - Cooler Piping ([10.1994 - ] REAR COOLER (9410- )UCF21)
90099-00259	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([10.1994 - ] REAR COOLER (9410- )UCF21)
90099-14119	Ring, O(For Cooler Refrigerant Liquid Pipe)	Heating & Air Conditioning - Cooler Piping ([10.1994 - ] REAR COOLER (9410- )UCF21)
90099-14119-TH	O RING	Heating & Air Conditioning - Cooler Piping ([10.1994 - ] REAR COOLER (9410- )UCF21)
90099-14120	O-Ring, Cooler Evaporator No.1(Discharge)	Heating & Air Conditioning - Cooler Piping ([10.1994 - ] REAR COOLER (9410- )UCF21)
90179-06161	Bolt, Union(For Clutch Accumulator)	Heating & Air Conditioning - Cooler Piping ([10.1994 - ] REAR COOLER (9410- )UCF21)
90179-06204	NUT	Heating & Air Conditioning - Cooler Piping ([10.1994 - ] REAR COOLER (9410- )UCF21)
90333-30002	Cover, Front Floor Hole	Heating & Air Conditioning - Cooler Piping ([10.1994 - ] REAR COOLER (9410- )UCF21)
90469-10004	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([10.1994 - ] REAR COOLER (9410- )UCF21)
90950-01417	PLUG	Heating & Air Conditioning - Cooler Piping ([10.1994 - ] REAR COOLER (9410- )UCF21)
90950-01865	PLUG HOLE	Heating & Air Conditioning - Cooler Piping ([10.1994 - ] REAR COOLER (9410- )UCF21)
91631-B0616	BOLT WWASHER	Heating & Air Conditioning - Cooler Piping ([10.1994 - ] REAR COOLER (9410- )UCF21)
91632-B0616	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([10.1994 - ] REAR COOLER (9410- )UCF21)
93315-14008	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([10.1994 - ] REAR COOLER (9410- )UCF21)
