Search › Model › UCF21

UCF21

Toyota CELSIOR · 1994 · 9,106 parts · 241 categories

9,106 items

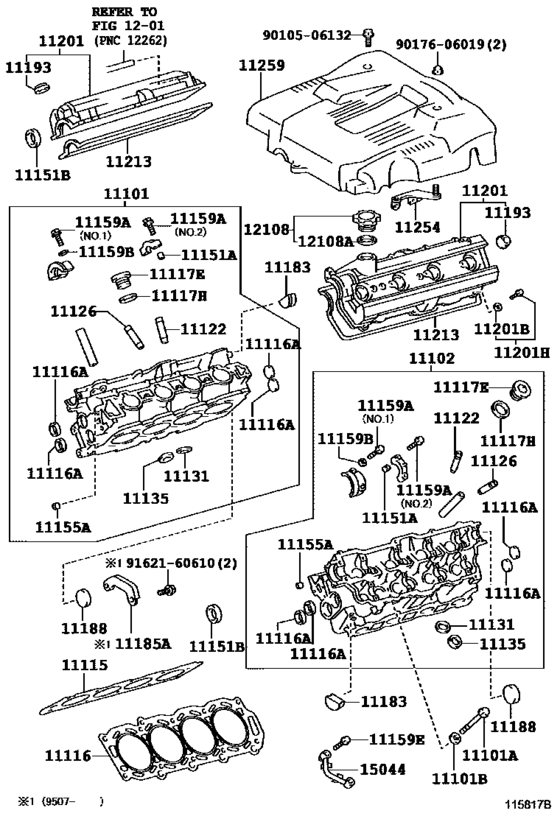

Cylinder Head ([10.1994 - 07.1997] (9410-9707)) 44

#	OEM	Part name
11101	11101-59145	Head Sub-Assy, Cylinder
11101	90910-02088	Bolt(For Cylinder Head Set)
11101	90201-10344	Washer, Plate(For Cylinder Head Set)
11115	11115-50021	Gasket, Cylinder Head
11116	11116-50011	Gasket, Cylinder Head, No.2
11116	96411-43000	Plug, Tight, No.1
11117	90341-27006	Plug, W/head Straight Screw, No.1
11117	90430-27005	Gasket(For Cylinder Head Screw Plug)
11122	11122-74030	Bush, Intake Valve Guide
11122	11123-74030	Bush, Intake Valve Guide
11126	11126-50050	Bush, Exhaust Valve Guide
11126	11127-50050	Bush, Exhaust Valve Guide
11131	11131-50020	Seat, Intake Valve
11131	11132-50020	Seat, Intake Valve
11135	11135-50020	Seat, Exhaust Valve
11135	11136-50020	Seat, Exhaust Valve
11151	90253-10006	Pin, Ring(For Camshaft Bearing Cap Setting)
11151	90311-38036	Seal, Oil(For Camshaft Setting)
11155	90253-11001	Pin, Ring(For Camshaft Bearing Cap Setting)
11159	90105-07003	Bolt(For Head To Camshaft Bearing Cap)
11159	90119-07007	Bolt(For Head To Camshaft Bearing Cap)
11159	90210-07003	Washer, Seal(For Head To Camshaft Bearing Cap)
11159	90119-07006	Bolt(For Head To Camshaft Bearing Cap)
11183	11183-50010	Plug, Semicircular
11185	11185-50010	Cover, Camshaft Rear Housing, No.1
11185	11185-50011	Cover, Camshaft Rear Housing, No.1
11188	11188-62010	Plug, Camshaft Housing
11193	11193-15010	Gasket(For Spark Plug Tube)
11201	11201-50021	Cover Sub-Assy, Cylinder Head
11201	11202-50020	Cover Sub-Assy, Cylinder Head
11201	90210-07001	Washer, Seal(For Cylinder Head Cover)
11201	90109-06163	Bolt(For Cylinder Head Cover)
11213	11213-50020	Gasket, Cylinder Head Cover
11213	11213-50021	Gasket, Cylinder Head Cover
11254	11254-50010	Bracket, V-Bank Cover, No.1
11259	11259-50010	Cover, V-Bank
12108	12180-50010	Cap Sub-Assy, Oil Filler
12108	12195-50010	Gasket(For Oil Filler Cap)
15044	15044-50010	Pipe Sub-Assy, Camshaft Oil Feed
9010506132	90105-06132	BOLT FLANGE
9010506132	91511-G0628	BOLT, FLANGE
9017606019	90176-06019	Nut (For Rear Wiper Arm Setting)
9162160610	91621-60610	New Genuine Part
9162160610	91651-B0612	Bolt

OEM	Part name	Category
11101-59145	Head Sub-Assy, Cylinder	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
11115-50021	Gasket, Cylinder Head	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
11116-50011	Gasket, Cylinder Head, No.2	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
11122-74030	Bush, Intake Valve Guide	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
11123-74030	Bush, Intake Valve Guide	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
11126-50050	Bush, Exhaust Valve Guide	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
11127-50050	Bush, Exhaust Valve Guide	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
11131-50020	Seat, Intake Valve	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
11132-50020	Seat, Intake Valve	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
11135-50020	Seat, Exhaust Valve	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
11136-50020	Seat, Exhaust Valve	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
11183-50010	Plug, Semicircular	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
11185-50010	Cover, Camshaft Rear Housing, No.1	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
11185-50011	Cover, Camshaft Rear Housing, No.1	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
11188-62010	Plug, Camshaft Housing	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
11193-15010	Gasket(For Spark Plug Tube)	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
11201-50021	Cover Sub-Assy, Cylinder Head	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
11202-50020	Cover Sub-Assy, Cylinder Head	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
11213-50020	Gasket, Cylinder Head Cover	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
11213-50021	Gasket, Cylinder Head Cover	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
11254-50010	Bracket, V-Bank Cover, No.1	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
11259-50010	Cover, V-Bank	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
12180-50010	Cap Sub-Assy, Oil Filler	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
12195-50010	Gasket(For Oil Filler Cap)	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
15044-50010	Pipe Sub-Assy, Camshaft Oil Feed	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
90105-06132	BOLT FLANGE	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
90105-07003	Bolt(For Head To Camshaft Bearing Cap)	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
90109-06163	Bolt(For Cylinder Head Cover)	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
90119-07006	Bolt(For Head To Camshaft Bearing Cap)	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
90119-07007	Bolt(For Head To Camshaft Bearing Cap)	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
90176-06019	Nut (For Rear Wiper Arm Setting)	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
90201-10344	Washer, Plate(For Cylinder Head Set)	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
90210-07001	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
90210-07003	Washer, Seal(For Head To Camshaft Bearing Cap)	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
90253-10006	Pin, Ring(For Camshaft Bearing Cap Setting)	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
90253-11001	Pin, Ring(For Camshaft Bearing Cap Setting)	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
90311-38036	Seal, Oil(For Camshaft Setting)	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
90341-27006	Plug, W/head Straight Screw, No.1	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
90430-27005	Gasket(For Cylinder Head Screw Plug)	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
90910-02088	Bolt(For Cylinder Head Set)	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
91511-G0628	BOLT, FLANGE	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
91621-60610	New Genuine Part	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
91651-B0612	Bolt	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
96411-43000	Plug, Tight, No.1	Cylinder Head ([10.1994 - 07.1997] (9410-9707))
