Search › Model › UCF11

UCF11

Toyota CELSIOR · 1989 · 9,470 parts · 184 categories

9,470 items

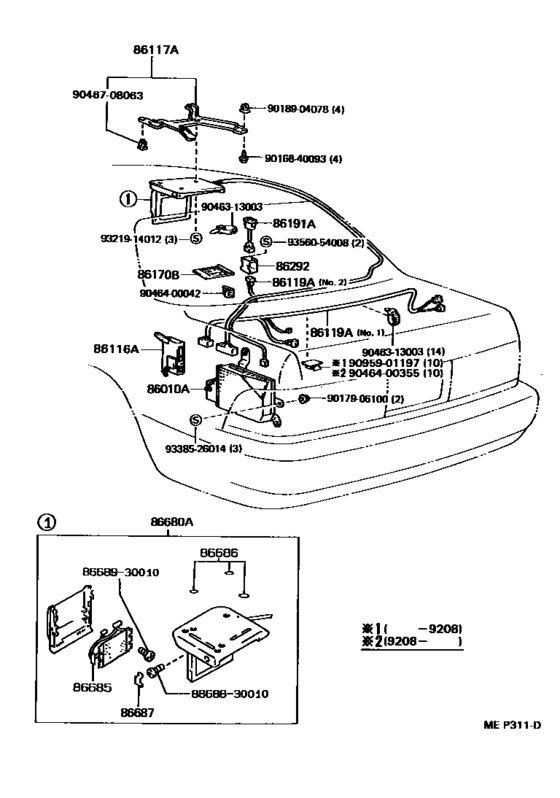

Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11) 48

#	OEM	Part name
86010	86010-50010	Tuner Assy, Television
86116	86116-50010	Controller, Video
86117	86117-50010	Bracket, Television Display, A
86117	86117-50020	Bracket, Television Display, A
86119	86119-50010	Wire, Television Switch
86119	86119-50020	Wire, Television Switch
86119	86119-50030	Wire, Television Switch
86119	86119-50040	Wire, Television Switch
86170	86170-50030	Switch & Volume Assy, Television
86191	86191-30010	Terminal, Video(Video Adapter)
86292	86292-50010	Cover, Television Set
86680	86680-50010-03	Display Assy, Television
86680	86680-50010-B0	Display Assy, Television
86680	86680-50010-04	Display Assy, Television
86680	86680-50010-J0	Display Assy, Television
86680	86680-50010-05	Display Assy, Television
86680	86680-50010-06	Display Assy, Television
86680	86680-50010-E0	Display Assy, Television
86680	86680-50010-K0	Display Assy, Television
86685	86685-30010	Light, Television
86686	86686-50010-B0	Plug, Television No.1
86686	86686-50010-E0	Plug, Television No.1
86686	86686-50010-E1	Plug, Television No.1
86686	86686-50010-E2	Plug, Television No.1
86686	86686-50010-J0	Plug, Television No.1
86686	86686-50010-K0	Plug, Television No.1
86687	86687-50010-B0	Plug, Television No.2
86687	86687-50010-E0	Plug, Television No.2
86687	86687-50010-E1	Plug, Television No.2
86687	86687-50010-E2	Plug, Television No.2
86687	86687-50010-J0	Plug, Television No.2
86687	86687-50010-K0	Plug, Television No.2
8668930010	86689-30010	New Genuine Part
8868830010	88688-30010	Bracket, Cooler Diaphragm
9016840093	90168-40093	SCREW TAPPING
9017906100	90179-06100	New Genuine Part
9017906100	90179-06204	NUT
9018904078	90189-04078	New Genuine Part
9046313003	90463-13003	Clamp, Hood Lock Control Wire
9046400042	90464-00042	Clamp (For Fuel Lid Lock Control Cable)
9046400355	90464-00355	Clamp, Hood Lock Control Wire
9046400355	90464-00356	Clamp, Hood Lock Control Wire
9046708063	90467-08063	Clip(For Hood To Radiator Support Seal)
9095901197	90959-01197	New Genuine Part
9095901197	90464-00052	New Genuine Part
9321914012	93219-14012	Screw(For Vacuum Lock Diaphragm Ring Set)
9338526014	93385-26014	New Genuine Part
9356054008	93560-54008	New Genuine Part

OEM	Part name	Category
86010-50010	Tuner Assy, Television	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
86116-50010	Controller, Video	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
86117-50010	Bracket, Television Display, A	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
86117-50020	Bracket, Television Display, A	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
86119-50010	Wire, Television Switch	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
86119-50020	Wire, Television Switch	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
86119-50030	Wire, Television Switch	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
86119-50040	Wire, Television Switch	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
86170-50030	Switch & Volume Assy, Television	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
86191-30010	Terminal, Video(Video Adapter)	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
86292-50010	Cover, Television Set	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
86680-50010-03	Display Assy, Television	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
86680-50010-04	Display Assy, Television	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
86680-50010-05	Display Assy, Television	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
86680-50010-06	Display Assy, Television	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
86680-50010-B0	Display Assy, Television	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
86680-50010-E0	Display Assy, Television	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
86680-50010-J0	Display Assy, Television	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
86680-50010-K0	Display Assy, Television	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
86685-30010	Light, Television	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
86686-50010-B0	Plug, Television No.1	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
86686-50010-E0	Plug, Television No.1	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
86686-50010-E1	Plug, Television No.1	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
86686-50010-E2	Plug, Television No.1	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
86686-50010-J0	Plug, Television No.1	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
86686-50010-K0	Plug, Television No.1	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
86687-50010-B0	Plug, Television No.2	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
86687-50010-E0	Plug, Television No.2	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
86687-50010-E1	Plug, Television No.2	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
86687-50010-E2	Plug, Television No.2	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
86687-50010-J0	Plug, Television No.2	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
86687-50010-K0	Plug, Television No.2	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
86689-30010	New Genuine Part	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
88688-30010	Bracket, Cooler Diaphragm	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
90168-40093	SCREW TAPPING	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
90179-06100	New Genuine Part	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
90179-06204	NUT	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
90189-04078	New Genuine Part	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
90463-13003	Clamp, Hood Lock Control Wire	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
90464-00042	Clamp (For Fuel Lid Lock Control Cable)	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
90464-00052	New Genuine Part	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
90464-00355	Clamp, Hood Lock Control Wire	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
90464-00356	Clamp, Hood Lock Control Wire	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
90467-08063	Clip(For Hood To Radiator Support Seal)	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
90959-01197	New Genuine Part	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
93219-14012	Screw(For Vacuum Lock Diaphragm Ring Set)	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
93385-26014	New Genuine Part	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
93560-54008	New Genuine Part	Rear Monitor Display & Camera ([11.1989 - ] (8911- )UCF11)
