Search › Model › UA2
UA2

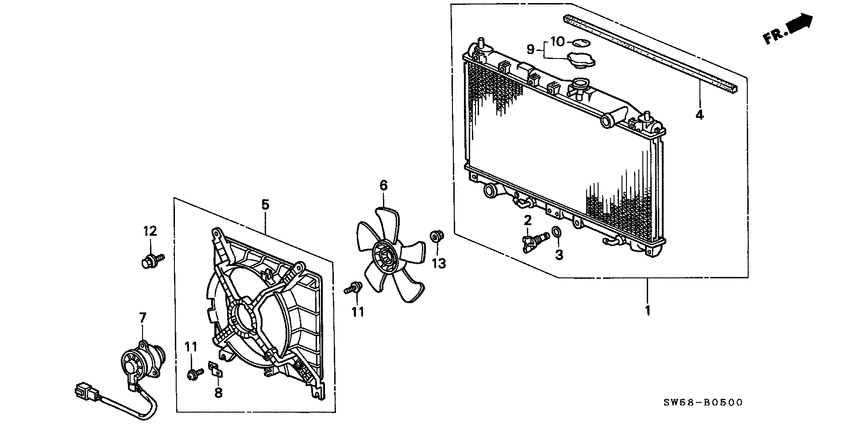

Radiator (DENSO; L5) 15
| # | OEM | Part name |
|---|---|---|
| 1 | 19010-P1R-901 | Radiator comp - DENSO |
| 2 | 19011-PH1-621 | Bolt - DRAIN (DENSO) |
| 3 | 19012-671-300 | Packing - DRAIN (DENSO) |
| 4 | 19013-P1R-003 | Seal - RADIATOR UPPER (DENSO) |
| 5 | 19015-P1R-003 | Shroud comp - DENSO |
| 6 | 19020-PT0-003 | Fan - COOLING (DENSO) |
| 7 | 19030-P1R-003 | Motor - COOLING FAN (DENSO) |
| 8 | 19033-P08-003 | Stay - COUPLER (DENSO) |
| 9 | 19045-P08-013 | Cap comp. - RADIATOR (DENSO) |
| 9 | 19045-PAA-A01 | Cap comp. - RADIATOR (DENSO) |
| 10 | 19046-PV1-000 | Seal - CAP |
| 11 | 90041-P08-003 | Screw-washer - 4X11 |
| 12 | 90042-PH2-003 | Bolt-washer - 6X16 (DENSO) |
| 12 | 90042-PAA-A01 | Bolt-washer - 6X16 (DENSO) |
| 13 | 90043-PD2-003 | Nut - HEX., 5MM (DENSO) |
| OEM | Part name | Category |
|---|---|---|
| 19010-P1R-901 | Radiator comp - DENSO | Radiator (DENSO; L5) |
| 19011-PH1-621 | Bolt - DRAIN (DENSO) | Radiator (DENSO; L5) |
| 19012-671-300 | Packing - DRAIN (DENSO) | Radiator (DENSO; L5) |
| 19013-P1R-003 | Seal - RADIATOR UPPER (DENSO) | Radiator (DENSO; L5) |
| 19015-P1R-003 | Shroud comp - DENSO | Radiator (DENSO; L5) |
| 19020-PT0-003 | Fan - COOLING (DENSO) | Radiator (DENSO; L5) |
| 19030-P1R-003 | Motor - COOLING FAN (DENSO) | Radiator (DENSO; L5) |
| 19033-P08-003 | Stay - COUPLER (DENSO) | Radiator (DENSO; L5) |
| 19045-P08-013 | Cap comp. - RADIATOR (DENSO) | Radiator (DENSO; L5) |
| 19045-PAA-A01 | Cap comp. - RADIATOR (DENSO) | Radiator (DENSO; L5) |
| 19046-PV1-000 | Seal - CAP | Radiator (DENSO; L5) |
| 90041-P08-003 | Screw-washer - 4X11 | Radiator (DENSO; L5) |
| 90042-PAA-A01 | Bolt-washer - 6X16 (DENSO) | Radiator (DENSO; L5) |
| 90042-PH2-003 | Bolt-washer - 6X16 (DENSO) | Radiator (DENSO; L5) |
| 90043-PD2-003 | Nut - HEX., 5MM (DENSO) | Radiator (DENSO; L5) |
