Search › Model › UA2

UA2

Honda 2-5TL · 1995 · 2,624 parts · 139 categories
UA2 ×

← Back to categories

2,624 items

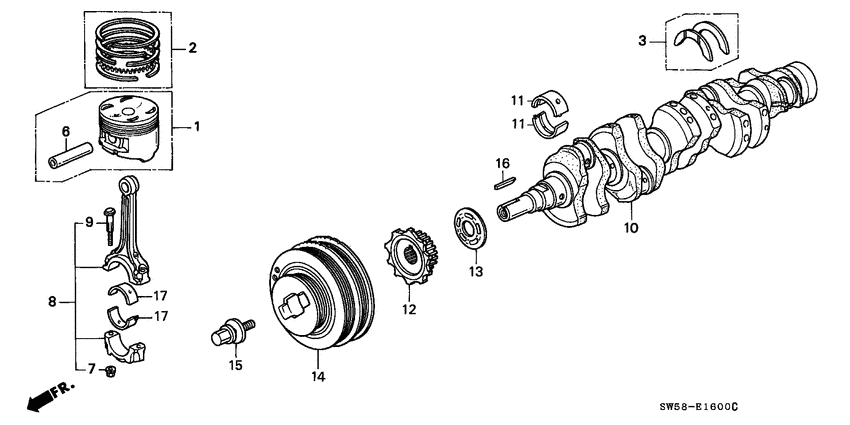

Piston/crankshaft (L5) 48
#OEMPart name
1 13010-P1R-J01 Piston set a - STD.
1 13040-P1R-J01 Piston set - OS 0.50
1 13030-P1R-J01 Piston set - OS 0.25
1 13020-P1R-J01 Piston set b - STD.
2 13021-P1R-003 Ring set - PISTON (OS 0.25) (TEIKOKU)
2 13011-P1R-004 Ring set - PISTON (STD.) (RIKEN)
2 13031-P1R-004 Ring set - PISTON (OS 0.50) (RIKEN)
2 13021-P1R-004 Ring set - PISTON (OS 0.25) (RIKEN)
2 13011-P1R-003 Ring set - PISTON (STD.) (TEIKOKU)
2 13031-P1R-003 Ring set - PISTON (OS 0.50) (TEIKOKU)
3 13014-PG6-S10 Washer set - THRUST (DAIDO)
3 13014-PG6-S20 Washer set - THRUST (TAIHO)
6 13112-PT0-000 Pin - PISTON
7 13205-689-004 Nut - CONNECTING ROD (NAGOYA RASHI)
7 13205-634-010 Nut
8 13210-PV1-000 Rod comp - CONNECTING
9 13213-463-003 Bolt - CONNECTING ROD (NAGOYA RASHI)
10 13310-P1R-010 Crankshaft comp.
11 13321-PV1-014 BEARING A - MAIN (BLACK) (TAIHO)
11 13325-PV1-013 Bearing e - MAIN (PINK) (DAIDO)
11 13324-PV1-013 Bearing d - MAIN (YELLOW) (DAIDO)
11 13321-PV1-013 BEARING A - MAIN (BLACK) (DAIDO)
11 13323-PV1-013 Bearing c - MAIN (GREEN) (DAIDO)
11 13325-PV1-014 Bearing e - MAIN (PINK) (TAIHO)
11 13322-PV1-013 Bearing b - MAIN (BROWN) (DAIDO)
11 13324-PV1-014 Bearing d - MAIN (YELLOW) (TAIHO)
11 13323-PV1-014 Bearing c - MAIN (GREEN) (TAIHO)
11 13322-PV1-014 Bearing b - MAIN (BROWN) (TAIHO)
12 13621-PV1-003 Pulley - TIMING BELT DRIVE
13 13622-PV1-000 Plate - TIMING BELT GUIDE
14 13810-P1R-003 Pulley comp - CRANKSHAFT
15 90017-PY3-003 Bolt-washer - 16X49
15 90017-RJA-003 Bolt-washer - 16X49
16 90704-PT0-000 Key - 4.5X38.5
17 13214-PD2-004 Bearing d - CONNECTING ROD (GREEN) (TAIHO)
17 13213-PC6-003 Bearing c - CONNECTING ROD (BROWN) (DAIDO)
17 13211-PD2-004 BEARING A - CONNECTING ROD (BLUE) (TAIHO)
17 13215-PC6-003 Bearing e - CONNECTING ROD (YELLOW) (DAIDO)
17 13212-PC6-003 Bearing b - CONNECTING ROD (BLACK) (DAIDO)
17 13217-PD2-004 Bearing g - CONNECTING ROD (RED) (TAIHO)
17 13214-PC6-003 Bearing d - CONNECTING ROD (GREEN) (DAIDO)
17 13211-PC6-003 BEARING A - CONNECTING ROD (BLUE) (DAIDO)
17 13216-PD2-004 Bearing f - CONNECTING ROD (PINK) (TAIHO)
17 13213-PD2-004 Bearing c - CONNECTING ROD (BROWN) (TAIHO)
17 13217-PC6-003 Bearing g - CONNECTING ROD (RED) (DAIDO)
17 13215-PD2-004 Bearing e - CONNECTING ROD (YELLOW) (TAIHO)
17 13212-PD2-004 Bearing b - CONNECTING ROD (BLACK) (TAIHO)
17 13216-PC6-003 Bearing f - CONNECTING ROD (PINK) (DAIDO)
