| 06531-SW5-000 |
Seal kit a - POWER STEERING (ROTARY VALVE) |

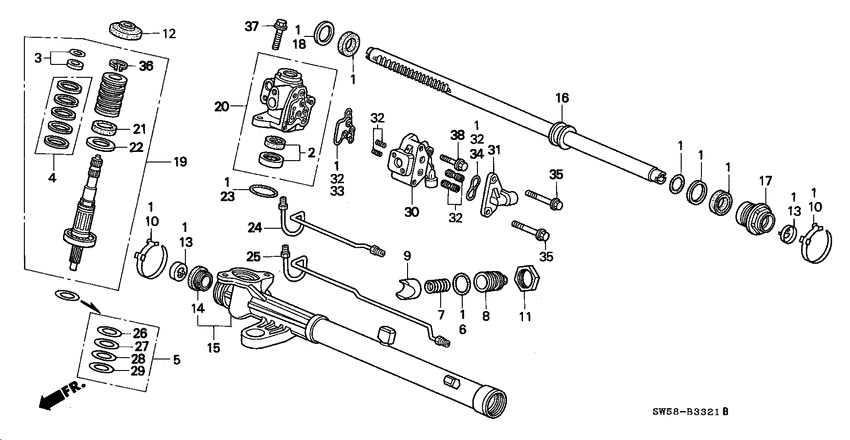

P.s. gear box components (L5; RH; 1) |
| 06532-ST0-000 |
Oil seal set - ROTARY VALVE |
P.s. gear box components (L5; RH; 1) |
| 06534-ST0-010 |
Seal set - POWER STEERING VALVE (ROTARY VALVE) |
P.s. gear box components (L5; RH; 1) |
| 06535-SW5-000 |
Ring set - POWER STEERING SEAL (ROTARY VALVE) |
P.s. gear box components (L5; RH; 1) |
| 06536-SW5-000 |
Shim set - 44MM |
P.s. gear box components (L5; RH; 1) |
| 53412-634-000 |
O-ring - RACK GUIDE (YAMADA) |
P.s. gear box components (L5; RH; 1) |
| 53413-SP0-010 |
Spring - RACK GUIDE PRESSURE |
P.s. gear box components (L5; RH; 1) |
| 53414-634-010 |
Screw - RACK GUIDE |
P.s. gear box components (L5; RH; 1) |
| 53414-634-020 |
Screw |
P.s. gear box components (L5; RH; 1) |
| 53416-ST0-003 |
Guide - STEERING RACK |
P.s. gear box components (L5; RH; 1) |
| 53449-S04-J51 |
Band b - BELLOWS |
P.s. gear box components (L5; RH; 1) |
| 53449-SL0-A00 |
Band b - BELLOWS |
P.s. gear box components (L5; RH; 1) |
| 53458-S01-A51 |
Nut - LOCK |
P.s. gear box components (L5; RH; 1) |
| 53458-SE0-003 |
Nut - RACK SCREW LOCK |
P.s. gear box components (L5; RH; 1) |
| 53501-SW5-000 |
Cover - PINION DUST |
P.s. gear box components (L5; RH; 1) |
| 53536-SS0-000 |
Washer - TIE ROD LOCK |
P.s. gear box components (L5; RH; 1) |
| 53537-SW5-003 |
Rubber comp - STOPPER |
P.s. gear box components (L5; RH; 1) |
| 53608-SW5-000 |
Housing sub assy. - STEERING GEAR BOX (###) |
P.s. gear box components (L5; RH; 1) |
| 53626-SW5-003 |
Rack comp - STEERING |
P.s. gear box components (L5; RH; 1) |
| 53630-SW5-000 |
End comp - CYLINDER |
P.s. gear box components (L5; RH; 1) |
| 53635-SV4-000 |
Ring - BACK UP |
P.s. gear box components (L5; RH; 1) |
| 53641-SW5-000 |
Valve sub assy. - STEERING (###) |
P.s. gear box components (L5; RH; 1) |
| 53645-SW5-000 |
Housing comp - VALVE |
P.s. gear box components (L5; RH; 1) |
| 53660-SW5-003 |
Oil seal - CYLINDER END, 27X41X5.5 |
P.s. gear box components (L5; RH; 1) |
| 53661-SW5-000 |
Ring - BACK UP VALVE |
P.s. gear box components (L5; RH; 1) |
| 53666-SW5-003 |
O-ring - 44.5X2 |
P.s. gear box components (L5; RH; 1) |
| 53670-SW5-000 |
Pipe a - CYLINDER |
P.s. gear box components (L5; RH; 1) |
| 53671-SW5-000 |
Pipe comp. b - CYLINDER |
P.s. gear box components (L5; RH; 1) |
| 53672-SW5-000 |
Shim a - 44MM (0.10MM) |
P.s. gear box components (L5; RH; 1) |
| 53673-SW5-000 |
Shim b - 44MM (0.15MM) |
P.s. gear box components (L5; RH; 1) |
| 53674-SW5-000 |
Shim c - 44MM (0.20MM) |
P.s. gear box components (L5; RH; 1) |
| 53675-SW5-000 |
Shim d - 44MM (0.25MM) |
P.s. gear box components (L5; RH; 1) |
| 53691-SW5-000 |
Body comp - VALVE |
P.s. gear box components (L5; RH; 1) |
| 53693-SW5-000 |
Port comp. - SENSOR |
P.s. gear box components (L5; RH; 1) |
| 53697-SW5-003 |
Spring set - ASSIST CONTROL VALVE |
P.s. gear box components (L5; RH; 1) |
| 53698-SW5-003 |
Seal - VALVE HOUSING |
P.s. gear box components (L5; RH; 1) |
| 53699-SW5-003 |
Seal - SENSOR PORT (NOK) |
P.s. gear box components (L5; RH; 1) |
| 90101-SW5-000 |
Bolt - FLANGE, 6X52 |
P.s. gear box components (L5; RH; 1) |
