Search › Model › UA2

UA2

Honda 2-5TL · 1995 · 2,624 parts · 139 categories
UA2 ×

← Back to categories

2,624 items

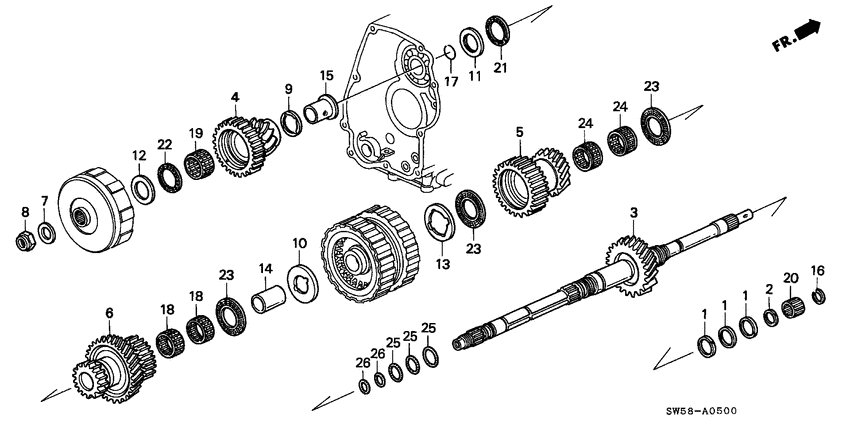

Mainshaft (L5) 36
#OEMPart name
1 22814-P4P-003 Ring - SEALING, 35MM
2 22815-P4P-003 Ring - SEALING, 29MM
3 23210-P1V-000 Mainshaft comp.
4 23411-P1V-000 Gear - MAINSHAFT LOW
5 23431-P1V-000 Gear - MAINSHAFT SECOND
6 23461-P1V-000 Gear - MAINSHAFT FOURTH
7 23929-PX4-700 Washer - SPRING, 24MM
8 90201-PX4-010 Nut - FLANGE, 24MM
9 90406-PW4-000 Washer - THRUST, 33X44X1.5
10 90407-PW4-000 Washer - THRUST, 28X56X4.5
11 90417-PW4-000 Washer - 28X46X3.5
12 90422-PW4-000 Washer - THRUST, 28X48X2.5
13 90447-PW4-000 Washer - THRUST, 37.5X56X4.30
13 90442-PW4-000 Washer - THRUST, 37.5X56X4.05
13 90449-PW4-000 Washer - THRUST, 37.5X56X4.40
13 90444-PW4-000 Washer - THRUST, 37.5X56X4.15
13 90451-PW4-000 Washer - THRUST, 37.5X56X4.50
13 90446-PW4-000 Washer - THRUST, 37.5X56X4.25
13 90441-PW4-000 Washer - THRUST, 37.5X56X4.00
13 90448-PW4-000 Washer - THRUST, 37.5X56X4.35
13 90443-PW4-000 Washer - THRUST, 37.5X56X4.10
13 90450-PW4-000 Washer - THRUST, 37.5X56X4.45
13 90445-PW4-000 Washer - THRUST, 37.5X56X4.20
14 90529-PW4-000 Collar - MAINSHAFT FOURTH GEAR
15 90536-PW4-000 Collar - MAINSHAFT LOW GEAR
16 90603-P0X-000 Set ring - 23MM
17 90613-PW4-000 Ring - SNAP, 28MM
18 91011-PW4-003 Bearing - NEEDLE, 34X40X20
19 91012-PW4-003 Bearing - NEEDLE, 33X37X26
20 91017-PK4-003 Bearing - NEEDLE, 23X29X20
21 91018-PW7-A01 Bearing - THRUST NEEDLE, 34X46X2
22 91019-PW4-003 Needle - THRUST, 33X49X2
23 91023-PW4-003 Needle - THRUST, 37X57X2.5
24 91027-PW7-003 Bearing - NEEDLE, 37X43X17.8
25 91307-PA9-003 O-ring 31.2X1.9 (ARAI)
26 91308-PW4-003 O-ring - 21.8X1.9
