| 06164-P30-000 |
Packing set - INJECTOR |

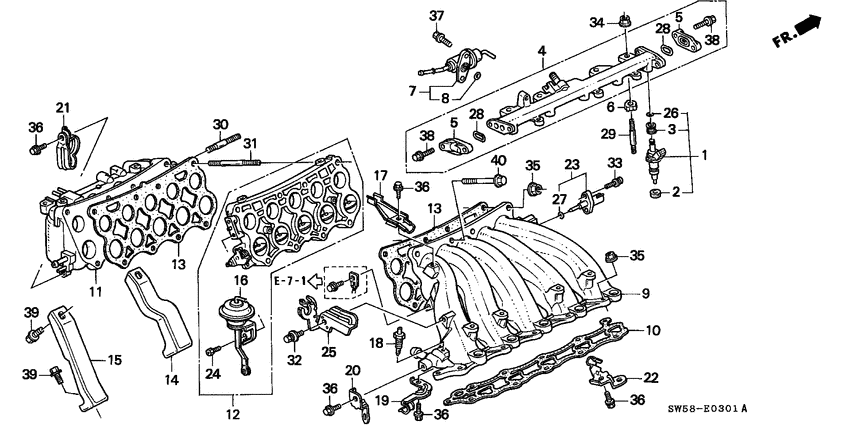

Intake manifold (L5; RH) |
| 16074-ZY3-000 |
O-ring |
Intake manifold (L5; RH) |
| 16472-P0H-A01 |
Seal ring - INJECTOR (NOK) |
Intake manifold (L5; RH) |
| 16472-PH7-003 |
Seal ring - INJECTOR (OTSUKA) |
Intake manifold (L5; RH) |
| 16473-P10-A01 |
Cushion ring - INJECTOR (NOK) |
Intake manifold (L5; RH) |
| 16473-PD6-000 |
Cushion ring - INJECTOR (OTSUKA) |
Intake manifold (L5; RH) |
| 16610-PV0-000 |
Pipe assy. - FUEL |
Intake manifold (L5; RH) |
| 16623-PV0-000 |
Cover - FUEL LINE |
Intake manifold (L5; RH) |
| 16638-PH3-S00 |
Insulator - FUEL PIPE |
Intake manifold (L5; RH) |
| 16740-PV1-A00 |
Regulator assy - PRESSURE |
Intake manifold (L5; RH) |
| 16741-PG7-005 |
O-ring - PRESSURE REGULATOR |
Intake manifold (L5; RH) |
| 17100-P1R-J01 |
Manifold comp. a - INTAKE |
Intake manifold (L5; RH) |
| 17105-PV1-003 |
Packing - INTAKE MANIFOLD (ISHINO GASKET) |
Intake manifold (L5; RH) |
| 17105-PV1-004 |
Packing - INTAKE MANIFOLD (NIPPON LEAKLESS) |
Intake manifold (L5; RH) |
| 17110-PV3-000 |
Manifold comp. b - INTAKE |
Intake manifold (L5; RH) |
| 17120-PV0-010 |
Body assy - BYPASS VALVE |
Intake manifold (L5; RH) |
| 17121-PV0-003 |
Packing - BYPASS VALVE (ISHINO GASKET) |
Intake manifold (L5; RH) |
| 17121-PV0-004 |
Packing - BYPASS VALVE (NIPPON LEAKLESS) |
Intake manifold (L5; RH) |
| 17125-PV1-000 |
Stay - FR. INTAKE MANIFOLD |
Intake manifold (L5; RH) |
| 17126-PV0-000 |
Stay - RR. INTAKE MANIFOLD |
Intake manifold (L5; RH) |
| 17129-PV0-010 |
Diaphragm assy. |
Intake manifold (L5; RH) |
| 17933-SW3-000 |
Clamp - THROTTLE WIRE |
Intake manifold (L5; RH) |
| 19516-PC1-000 |
Bolt - BREATHING WATER |
Intake manifold (L5; RH) |
| 19518-P1R-000 |
Clamp - FAST IDLE HOSE |
Intake manifold (L5; RH) |
| 32742-PV0-J00 |
Stay b - ENGINE HARNESS |
Intake manifold (L5; RH) |
| 32743-PV0-J00 |
Clamp - ENGINE WIRE HARNESS & STARTER CABLE (BLACK) |
Intake manifold (L5; RH) |
| 32746-PV0-000 |
Stay a - ENGINE WIRE HARNESS |
Intake manifold (L5; RH) |
| 37880-PE2-013 |
Sensor assy - AIR TEMP |
Intake manifold (L5; RH) |
| 90018-PV0-000 |
Bolt - RECESSED, 5X12 |
Intake manifold (L5; RH) |
| 90681-SW3-931 |
Clamp - RETURN HOSE |
Intake manifold (L5; RH) |
| 91301-P2F-A01 |
O-ring - 7.3X2.2 (NOK) |
Intake manifold (L5; RH) |
| 91301-PM7-003 |
O-ring - 7.3X2.2 (ARAI) |
Intake manifold (L5; RH) |
| 91303-PD1-910 |
O-ring - 7.5X1.5 |
Intake manifold (L5; RH) |
| 91303-PK2-005 |
O-ring (7.5X1.5) |
Intake manifold (L5; RH) |
| 91322-PV0-000 |
O-ring - FUEL LINE COVER |
Intake manifold (L5; RH) |
