| 16010-ST5-932 |
Strainer set - FUEL (TOYO ROKI) |

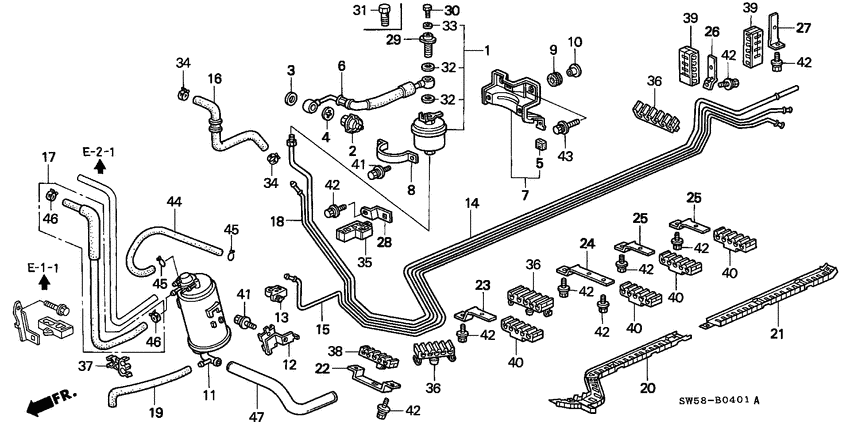

Fuel pipe (L5; RH) |
| 16680-PE2-003 |
Damper assy. - PULSATION |
Fuel pipe (L5; RH) |
| 16704-PD1-003 |
Washer - SILENCER |
Fuel pipe (L5; RH) |
| 16705-PD1-003 |
Gasket - SILENCER |
Fuel pipe (L5; RH) |
| 16712-SF4-J30 |
Cushion - FUEL STRAINER |
Fuel pipe (L5; RH) |
| 16720-PV3-003 |
Hose comp. b - FUEL FEED |
Fuel pipe (L5; RH) |
| 16918-SW5-930 |
Stay - FUEL STRAINER |
Fuel pipe (L5; RH) |
| 16919-SW3-930 |
Band - FUEL STRAINER |
Fuel pipe (L5; RH) |
| 16922-SH3-930 |
Rubber - MOUNTING |
Fuel pipe (L5; RH) |
| 16923-SP0-930 |
Collar - DISTANCE |
Fuel pipe (L5; RH) |
| 17300-SW5-931 |
Canister assy |
Fuel pipe (L5; RH) |
| 17358-SW5-930 |
Bracket comp. - CANISTER |
Fuel pipe (L5; RH) |
| 17556-SL4-023 |
Clip - FUEL PIPE (BLACK) |
Fuel pipe (L5; RH) |
| 17700-SW5-U30 |
Pipe comp - FUEL FEED |
Fuel pipe (L5; RH) |
| 17720-SW5-930 |
Pipe comp - VENT |
Fuel pipe (L5; RH) |
| 17723-SW3-930 |
Hose - PRESSURE REGULATOR RETURN |
Fuel pipe (L5; RH) |
| 17725-SW5-930 |
Hose assy - PURGE |
Fuel pipe (L5; RH) |
| 17740-SW5-U30 |
Pipe comp - RETURN |
Fuel pipe (L5; RH) |
| 17744-SW5-930 |
Tube assy - DRAIN |
Fuel pipe (L5; RH) |
| 17752-SW3-000 |
Cover - FR. FUEL PIPE |
Fuel pipe (L5; RH) |
| 17753-SW5-930 |
Cover - RR. FUEL PIPE |
Fuel pipe (L5; RH) |
| 17761-SW3-000 |
Stay a - FUEL PIPE |
Fuel pipe (L5; RH) |
| 17762-SL4-000 |
Stay b - FUEL PIPE |
Fuel pipe (L5; RH) |
| 17763-SL4-000 |
Stay c - FUEL PIPE |
Fuel pipe (L5; RH) |
| 17764-SL4-000 |
Stay d - FUEL PIPE |
Fuel pipe (L5; RH) |
| 17765-SW3-000 |
Stay e - FUEL PIPE |
Fuel pipe (L5; RH) |
| 17766-SW3-000 |
Stay f - FUEL PIPE |
Fuel pipe (L5; RH) |
| 17767-SW5-930 |
Stay g - FUEL PIPE |
Fuel pipe (L5; RH) |
| 90021-P0A-003 |
Bolt - SEALING, 12MM |
Fuel pipe (L5; RH) |
| 90428-PD6-003 |
Washer - SEALING, 12MM |
Fuel pipe (L5; RH) |
| 91406-SL4-931 |
Clamp - FUEL HOSE (D10.5) |
Fuel pipe (L5; RH) |
| 91590-SW5-931 |
Clamp - FUEL PIPE |
Fuel pipe (L5; RH) |
| 91592-SR3-J32 |
Clamp h - FUEL PIPE (SANOU) |
Fuel pipe (L5; RH) |
| 91592-SW3-003 |
Clip - FUEL TUBE |
Fuel pipe (L5; RH) |
| 91594-SR3-J32 |
Clamp f - FUEL PIPE (SANOU) |
Fuel pipe (L5; RH) |
| 91598-SR3-J32 |
Clamp d - FUEL PIPE (SANOU) |
Fuel pipe (L5; RH) |
| 91599-SV4-003 |
Clamp a - FUEL PIPE |
Fuel pipe (L5; RH) |
