UA2

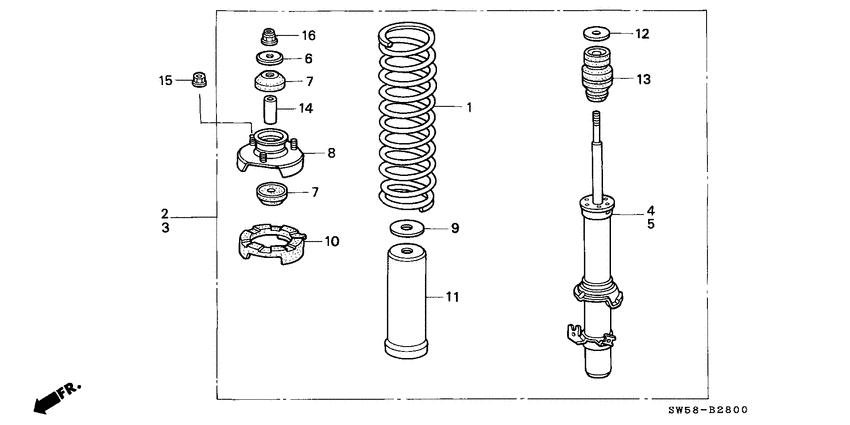

Front shock absorber (L5) 17
| # | OEM | Part name |
|---|---|---|
| 1 | 51401-SW5-J13 | Spring - FR. (SHOWA) |
| 2 | 51601-SW5-A03 | Absorber assy - R. FR. SHOCK |
| 3 | 51602-SW5-A03 | Absorber assy - L. FR. SHOCK |
| 4 | 51605-SW5-A02 | Absorber unit - R. FR. SHOCK |
| 5 | 51606-SW5-A02 | Absorber unit - L. FR. SHOCK |
| 6 | 51621-SD4-004 | Washer - SHOCK ABSORBER MOUNTING (SHOWA) |
| 7 | 51631-SV7-004 | Rubber - SHOCK ABSORBER MOUNTING(SHOWA) |
| 8 | 51675-SM4-004 | Base - SHOCK ABSORBER MOUNTING (SHOWA) |
| 9 | 51685-SH3-014 | Plate - DUST COVER(SHOWA) |
| 10 | 51686-SM4-004 | Rubber - FR. SPRING SEAT (SHOWA) |
| 11 | 51687-SM4-014 | Cover - FR. SLEEVE DUST (SHOWA) |
| 12 | 51689-SH3-004 | Plate - BUMP STOP (SHOWA) |
| 13 | 51722-SL4-003 | Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI) |
| 13 | 51722-SV4-004 | Rubber - FR. BUMP STOPPER (NOK) |
| 14 | 51728-SB0-004 | Collar - SHOCK ABSORBER MOUNTING (SHOWA) |
| 15 | 90304-SM4-000 | Nut - FR. SHOCK ABSORBER FLANGE (10MM) |
| 16 | 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) |
| OEM | Part name | Category |
|---|---|---|
| 51401-SW5-J13 | Spring - FR. (SHOWA) | Front shock absorber (L5) |
| 51601-SW5-A03 | Absorber assy - R. FR. SHOCK | Front shock absorber (L5) |
| 51602-SW5-A03 | Absorber assy - L. FR. SHOCK | Front shock absorber (L5) |
| 51605-SW5-A02 | Absorber unit - R. FR. SHOCK | Front shock absorber (L5) |
| 51606-SW5-A02 | Absorber unit - L. FR. SHOCK | Front shock absorber (L5) |
| 51621-SD4-004 | Washer - SHOCK ABSORBER MOUNTING (SHOWA) | Front shock absorber (L5) |
| 51631-SV7-004 | Rubber - SHOCK ABSORBER MOUNTING(SHOWA) | Front shock absorber (L5) |
| 51675-SM4-004 | Base - SHOCK ABSORBER MOUNTING (SHOWA) | Front shock absorber (L5) |
| 51685-SH3-014 | Plate - DUST COVER(SHOWA) | Front shock absorber (L5) |
| 51686-SM4-004 | Rubber - FR. SPRING SEAT (SHOWA) | Front shock absorber (L5) |
| 51687-SM4-014 | Cover - FR. SLEEVE DUST (SHOWA) | Front shock absorber (L5) |
| 51689-SH3-004 | Plate - BUMP STOP (SHOWA) | Front shock absorber (L5) |
| 51722-SL4-003 | Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI) | Front shock absorber (L5) |
| 51722-SV4-004 | Rubber - FR. BUMP STOPPER (NOK) | Front shock absorber (L5) |
| 51728-SB0-004 | Collar - SHOCK ABSORBER MOUNTING (SHOWA) | Front shock absorber (L5) |
| 90304-SM4-000 | Nut - FR. SHOCK ABSORBER FLANGE (10MM) | Front shock absorber (L5) |
| 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) | Front shock absorber (L5) |
