Search › Model › UA2
UA2

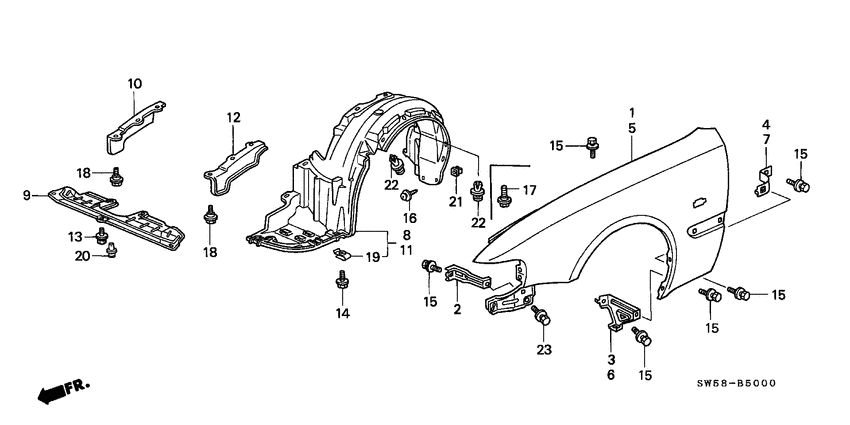

Front fenders (L5) 15
| # | OEM | Part name |
|---|---|---|
| 8 | 74101-SW5-010 | Fender - R. FR. INNER |
| 9 | 74111-SL5-A00 | Cover - UNDER |
| 10 | 74115-SW5-000 | Guard - R. FR. SPLASH |
| 11 | 74151-SW5-010 | Fender - L. FR. INNER |
| 12 | 74165-SW5-000 | Guard - L. FR. SPLASH |
| 13 | 90103-SL4-000 | Bolt-washer - 6X16 |
| 14 | 90105-SL4-000 | Bolt-washer - 6X20 |
| 15 | 90108-SF1-000 | Bolt-washer - 6X15 |
| 16 | 90114-SZ3-000 | Screw-washer - 5X20 |
| 17 | 90115-SL0-010 | Bolt b - DOOR |
| 18 | 90149-SA0-003 | Bolt - BUMPER |
| 19 | 90305-SM4-003 | Nut - CLIP, 6MM |
| 20 | 90675-SL4-003 | Clip - SPLASH SHIELD |
| 21 | 90682-SB0-003 | Grommet - SCREW, 5MM |
| 22 | 91512-SX0-003 | Clip - INNER FENDER CLIP |
| OEM | Part name | Category |
|---|---|---|
| 74101-SW5-010 | Fender - R. FR. INNER | Front fenders (L5) |
| 74111-SL5-A00 | Cover - UNDER | Front fenders (L5) |
| 74115-SW5-000 | Guard - R. FR. SPLASH | Front fenders (L5) |
| 74151-SW5-010 | Fender - L. FR. INNER | Front fenders (L5) |
| 74165-SW5-000 | Guard - L. FR. SPLASH | Front fenders (L5) |
| 90103-SL4-000 | Bolt-washer - 6X16 | Front fenders (L5) |
| 90105-SL4-000 | Bolt-washer - 6X20 | Front fenders (L5) |
| 90108-SF1-000 | Bolt-washer - 6X15 | Front fenders (L5) |
| 90114-SZ3-000 | Screw-washer - 5X20 | Front fenders (L5) |
| 90115-SL0-010 | Bolt b - DOOR | Front fenders (L5) |
| 90149-SA0-003 | Bolt - BUMPER | Front fenders (L5) |
| 90305-SM4-003 | Nut - CLIP, 6MM | Front fenders (L5) |
| 90675-SL4-003 | Clip - SPLASH SHIELD | Front fenders (L5) |
| 90682-SB0-003 | Grommet - SCREW, 5MM | Front fenders (L5) |
| 91512-SX0-003 | Clip - INNER FENDER CLIP | Front fenders (L5) |
