UA2

Honda 2-5TL · 1995 · 2,624 parts · 139 categories
UA2 ×

← Back to categories

2,624 items

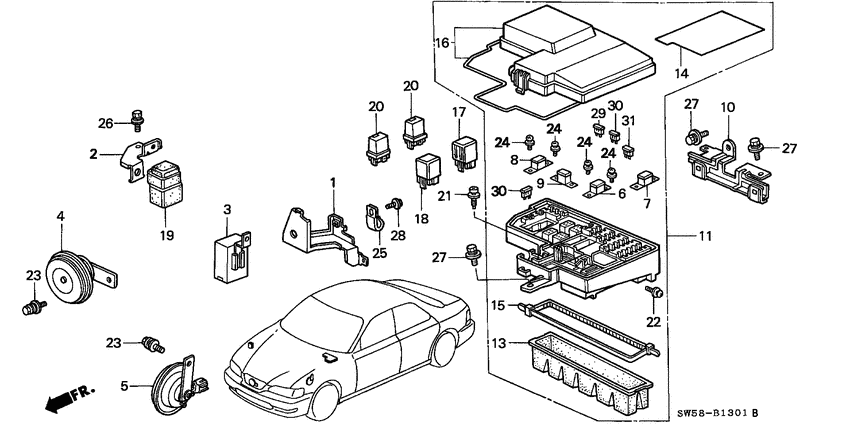

Control unit (ENGINE ROOM; L5; RH) 26
#OEMPart name
1 28156-P1R-J00 Bracket - TRANSMISSION SUB HARNESS
2 32162-SW5-000 Bracket - WIPER RELAY
4 38100-SD5-901 Horn assy - LOW
4 38100-SR3-901 Horn assy - LOW (MITSUBA)
5 38150-SH3-901 Horn assy - HIGH (MITSUBA)
6 38211-SM4-003 Fuse - BLOCK (30A)
7 38212-SM4-003 Fuse - BLOCK (40A)
8 38213-SM4-003 Fuse - BLOCK (50A)
9 38218-SM4-003 Fuse - BLOCK (100A)
10 38245-SL4-000 Bracket - RELAY BOX
11 38250-SW5-902 Box assy - RELAY
13 38252-SM4-003 Cover - LOWER
14 38253-SW5-902 Label
15 38255-SE0-003 Band - LOWER COVER
16 38256-SW5-901 Cover - UPPER
17 39762-SG0-003 Relay assy - POWER (5P) (DENSO) (056700-8160)
18 39792-SE0-003 Relay assy - POWER(4P)(DENSO) (056700-7410)
18 39792-SE0-004 Relay assy - POWER (4P) (OMRON) (G4R-1A21T-H22)
19 39793-SV4-003 Relay assy - POWER (5P) (MITSUBA)
20 39794-SL0-004 Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK)
20 39794-SE0-003 Relay assy - POWER(4P)(DENSO) (056700-7250)
21 90114-SM4-900 Bolt - 6X15
22 90122-SM4-003 Screw-washer - 5X12
23 90138-SM4-003 Bolt-washer - 8X14
24 90153-SA5-900 Screw-washer - 5X9
25 91405-890-780 Clip - CORD
