UA2

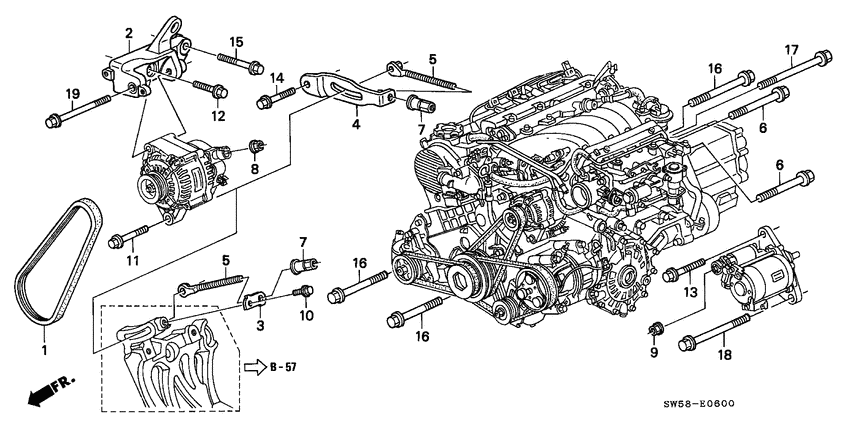

Alternator bracket (L5) 7
| # | OEM | Part name |
|---|---|---|
| 1 | 31110-P1R-003 | Belt - ALTERNATOR (BANDO) |
| 1 | 31110-P1R-004 | Belt - ALTERNATOR (MITSUBOSHI) |
| 2 | 31112-P1R-000 | Bracket comp. - ALTERNATOR |
| 3 | 31113-PR7-A00 | Plate - ALTERNATOR ADJUSTER |
| 5 | 31116-PV1-A00 | Bolt - ALTERNATOR ADJUSTING |
| 6 | 90050-PE0-000 | Bolt - FLANGE, 12X60 |
| 7 | 90204-PH7-000 | Nut - SPECIAL |
| OEM | Part name | Category |
|---|---|---|
| 31110-P1R-003 | Belt - ALTERNATOR (BANDO) | Alternator bracket (L5) |
| 31110-P1R-004 | Belt - ALTERNATOR (MITSUBOSHI) | Alternator bracket (L5) |
| 31112-P1R-000 | Bracket comp. - ALTERNATOR | Alternator bracket (L5) |
| 31113-PR7-A00 | Plate - ALTERNATOR ADJUSTER | Alternator bracket (L5) |
| 31116-PV1-A00 | Bolt - ALTERNATOR ADJUSTING | Alternator bracket (L5) |
| 90050-PE0-000 | Bolt - FLANGE, 12X60 | Alternator bracket (L5) |
| 90204-PH7-000 | Nut - SPECIAL | Alternator bracket (L5) |
