UA2

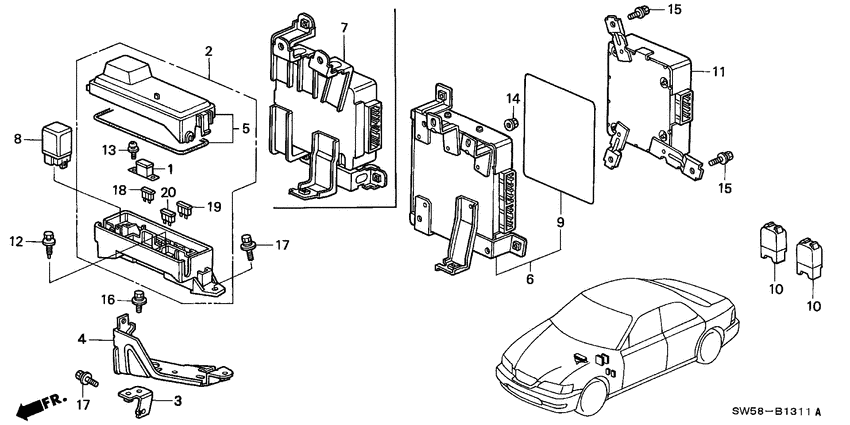

Abs/tcs unit (L5; RH) 12
| # | OEM | Part name |
|---|---|---|
| 1 | 38211-SM4-003 | Fuse - BLOCK (30A) |
| 2 | 38230-SW5-003 | Box assy - ABS FUSE |
| 3 | 38235-SL5-000 | Bracket - ABS BOX |
| 4 | 38236-SW5-000 | Bracket - ABS FUSE |
| 5 | 38256-SW5-003 | Cover |
| 7 | 39790-SW5-902 | Abs unit |
| 8 | 39792-SP0-014 | Relay assy - POWER (4P) (MITSUBA) (12V NO) |
| 10 | 39797-SH2-003 | Relay assy - POWER (4P) (DENSO) |
| 11 | 39900-SW5-013 | Tcs unit |
| 12 | 90114-SG0-003 | Bolt - 5X13 |
| 13 | 90153-SA5-900 | Screw-washer - 5X9 |
| 14 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM |
| OEM | Part name | Category |
|---|---|---|
| 38211-SM4-003 | Fuse - BLOCK (30A) | Abs/tcs unit (L5; RH) |
| 38230-SW5-003 | Box assy - ABS FUSE | Abs/tcs unit (L5; RH) |
| 38235-SL5-000 | Bracket - ABS BOX | Abs/tcs unit (L5; RH) |
| 38236-SW5-000 | Bracket - ABS FUSE | Abs/tcs unit (L5; RH) |
| 38256-SW5-003 | Cover | Abs/tcs unit (L5; RH) |
| 39790-SW5-902 | Abs unit | Abs/tcs unit (L5; RH) |
| 39792-SP0-014 | Relay assy - POWER (4P) (MITSUBA) (12V NO) | Abs/tcs unit (L5; RH) |
| 39797-SH2-003 | Relay assy - POWER (4P) (DENSO) | Abs/tcs unit (L5; RH) |
| 39900-SW5-013 | Tcs unit | Abs/tcs unit (L5; RH) |
| 90114-SG0-003 | Bolt - 5X13 | Abs/tcs unit (L5; RH) |
| 90153-SA5-900 | Screw-washer - 5X9 | Abs/tcs unit (L5; RH) |
| 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Abs/tcs unit (L5; RH) |
