Search › Model › U30
U30

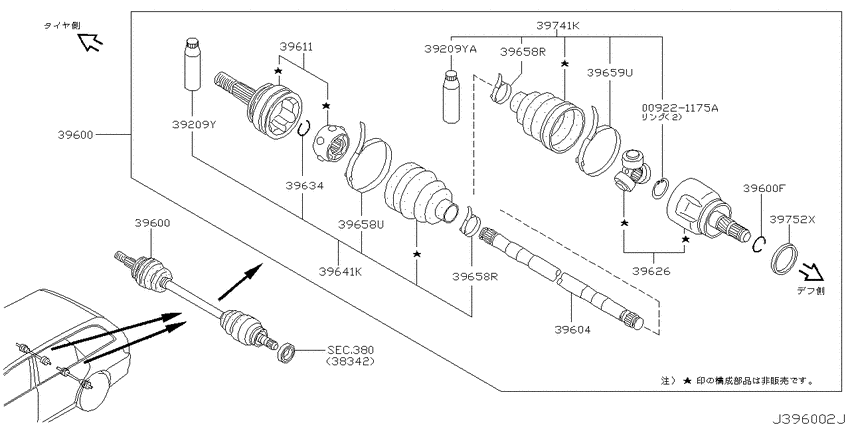

Rear drive shaft (2001-08-01 ~ ; 4WD.QR25DE) 11
| # | OEM | Part name |
|---|---|---|
| 39600 | 39600-8H510 | Shaft Assy-Rear Drive |
| 39600 | 38225-01B00 | Clip-Drive Shaft |
| 39604 | 39704-8H550 | Shaft-Rear Drive |
| 39611 | 39211-8H510 | Joint Assy-Outer |
| 39626 | 39711-2U600 | Joint Assy-Inner |
| 39634 | 39234-2U600 | Seal-Oil |
| 39658 | 39242-2U611 | Band-Boot, Drive Shaft Outer |
| 39658 | 39242-2U610 | Band-Boot, Drive Shaft Outer |
| 39659 | 39742-2U610 | Band-Boot Drive Shaft Inner |
| 39752 | 39752-77A10 | Shield-Dust |
| 9221175 | 00922-1175A | リング,スナツプ |
| OEM | Part name | Category |
|---|---|---|
| 00922-1175A | リング,スナツプ | Rear drive shaft (2001-08-01 ~ ; 4WD.QR25DE) |
| 38225-01B00 | Clip-Drive Shaft | Rear drive shaft (2001-08-01 ~ ; 4WD.QR25DE) |
| 39211-8H510 | Joint Assy-Outer | Rear drive shaft (2001-08-01 ~ ; 4WD.QR25DE) |
| 39234-2U600 | Seal-Oil | Rear drive shaft (2001-08-01 ~ ; 4WD.QR25DE) |
| 39242-2U610 | Band-Boot, Drive Shaft Outer | Rear drive shaft (2001-08-01 ~ ; 4WD.QR25DE) |
| 39242-2U611 | Band-Boot, Drive Shaft Outer | Rear drive shaft (2001-08-01 ~ ; 4WD.QR25DE) |
| 39600-8H510 | Shaft Assy-Rear Drive | Rear drive shaft (2001-08-01 ~ ; 4WD.QR25DE) |
| 39704-8H550 | Shaft-Rear Drive | Rear drive shaft (2001-08-01 ~ ; 4WD.QR25DE) |
| 39711-2U600 | Joint Assy-Inner | Rear drive shaft (2001-08-01 ~ ; 4WD.QR25DE) |
| 39742-2U610 | Band-Boot Drive Shaft Inner | Rear drive shaft (2001-08-01 ~ ; 4WD.QR25DE) |
| 39752-77A10 | Shield-Dust | Rear drive shaft (2001-08-01 ~ ; 4WD.QR25DE) |
