Search › Model › U30
U30

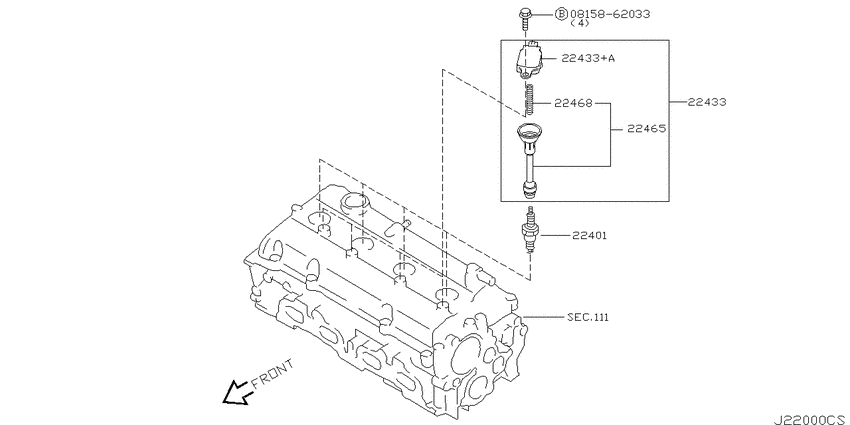

Ignition System (2001-08-01 ~ ; QR25DE) 4
| # | OEM | Part name |
|---|---|---|
| 22433 | 22448-8H310 | Coil Assy-Ignition |
| 22433 | 22433-8H315 | Coil Assy-Ignition |
| 22465 | 22465-6N215 | Protector-Ignition Coil |
| 815862033 | 08158-62033 | BOLT |
| OEM | Part name | Category |
|---|---|---|
| 08158-62033 | BOLT | Ignition System (2001-08-01 ~ ; QR25DE) |
| 22433-8H315 | Coil Assy-Ignition | Ignition System (2001-08-01 ~ ; QR25DE) |
| 22448-8H310 | Coil Assy-Ignition | Ignition System (2001-08-01 ~ ; QR25DE) |
| 22465-6N215 | Protector-Ignition Coil | Ignition System (2001-08-01 ~ ; QR25DE) |
