Search › Model › U30
U30

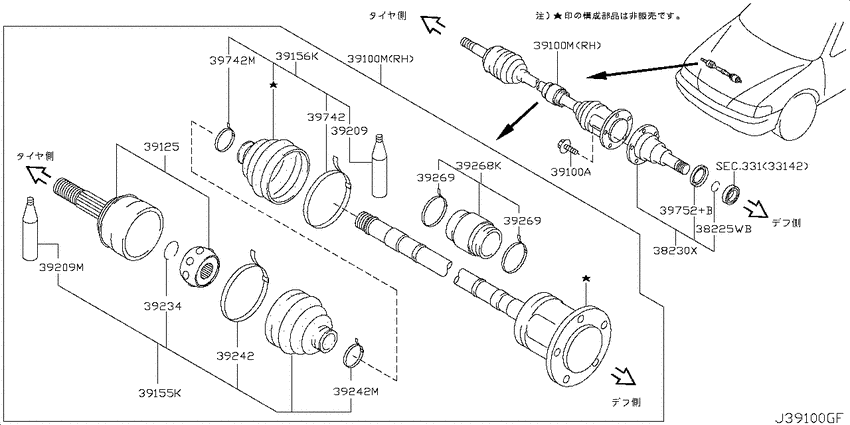

Front drive shaft (ff) (2001-08-01 ~ ; 右側; 4WD.QR25DE) 9
| # | OEM | Part name |
|---|---|---|
| 38230 | 38230-8H515 | Shaft Assy-Side, Differential |
| 39100 | 39606-17V00 | Bolt |
| 39100 | 39100-AE415 | Shaft Assy-Front Drive, Rh |
| 39125 | 39211-5V070 | Joint Assy-Outer |
| 39268 | 39268-8H525 | Damper Kit-Dynamic, Front Drive Shaft |
| 39268 | 39268-5U027 | Damper Kit-Dynamic, Front Drive Shaft |
| 39742 | 39742-8H301 | Band-Boot, Drive Shaft Inner |
| 39742 | 39742-8H311 | Band-Boot, Drive Shaft Inner |
| 39752 | 39752-06R00 | Shield-Dust |
| OEM | Part name | Category |
|---|---|---|
| 38230-8H515 | Shaft Assy-Side, Differential | Front drive shaft (ff) (2001-08-01 ~ ; 右側; 4WD.QR25DE) |
| 39100-AE415 | Shaft Assy-Front Drive, Rh | Front drive shaft (ff) (2001-08-01 ~ ; 右側; 4WD.QR25DE) |
| 39211-5V070 | Joint Assy-Outer | Front drive shaft (ff) (2001-08-01 ~ ; 右側; 4WD.QR25DE) |
| 39268-5U027 | Damper Kit-Dynamic, Front Drive Shaft | Front drive shaft (ff) (2001-08-01 ~ ; 右側; 4WD.QR25DE) |
| 39268-8H525 | Damper Kit-Dynamic, Front Drive Shaft | Front drive shaft (ff) (2001-08-01 ~ ; 右側; 4WD.QR25DE) |
| 39606-17V00 | Bolt | Front drive shaft (ff) (2001-08-01 ~ ; 右側; 4WD.QR25DE) |
| 39742-8H301 | Band-Boot, Drive Shaft Inner | Front drive shaft (ff) (2001-08-01 ~ ; 右側; 4WD.QR25DE) |
| 39742-8H311 | Band-Boot, Drive Shaft Inner | Front drive shaft (ff) (2001-08-01 ~ ; 右側; 4WD.QR25DE) |
| 39752-06R00 | Shield-Dust | Front drive shaft (ff) (2001-08-01 ~ ; 右側; 4WD.QR25DE) |
