U30

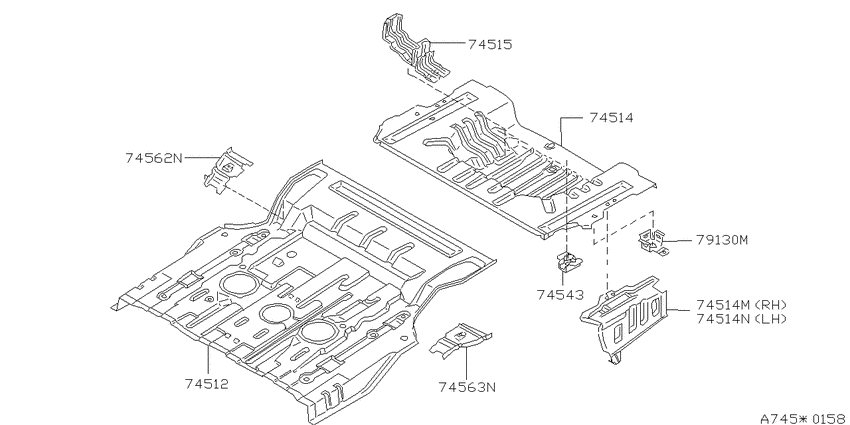

Floor panel (rear) (2001-08-01 ~ ; W) 7
| # | OEM | Part name |
|---|---|---|
| 74512 | 74512-AD330 | Floor-Rear, Front |
| 74514 | 74514-AD030 | Floor-Rear, Rear |
| 74514 | 74530-AD000 | Floor-Rear, Rear Side Rh |
| 74514 | 74531-AD000 | Floor-Rear, Rear Side Lh |
| 74515 | 74595-AD000 | Bracket-Jack Mounting |
| 74543 | 74540-AD300 | Member-2Nd Seat Mounting, Lh |
| 79130 | 76779-AD000 | Bracket-Trunk Trim |
| OEM | Part name | Category |
|---|---|---|
| 74512-AD330 | Floor-Rear, Front | Floor panel (rear) (2001-08-01 ~ ; W) |
| 74514-AD030 | Floor-Rear, Rear | Floor panel (rear) (2001-08-01 ~ ; W) |
| 74530-AD000 | Floor-Rear, Rear Side Rh | Floor panel (rear) (2001-08-01 ~ ; W) |
| 74531-AD000 | Floor-Rear, Rear Side Lh | Floor panel (rear) (2001-08-01 ~ ; W) |
| 74540-AD300 | Member-2Nd Seat Mounting, Lh | Floor panel (rear) (2001-08-01 ~ ; W) |
| 74595-AD000 | Bracket-Jack Mounting | Floor panel (rear) (2001-08-01 ~ ; W) |
| 76779-AD000 | Bracket-Trunk Trim | Floor panel (rear) (2001-08-01 ~ ; W) |
