U30

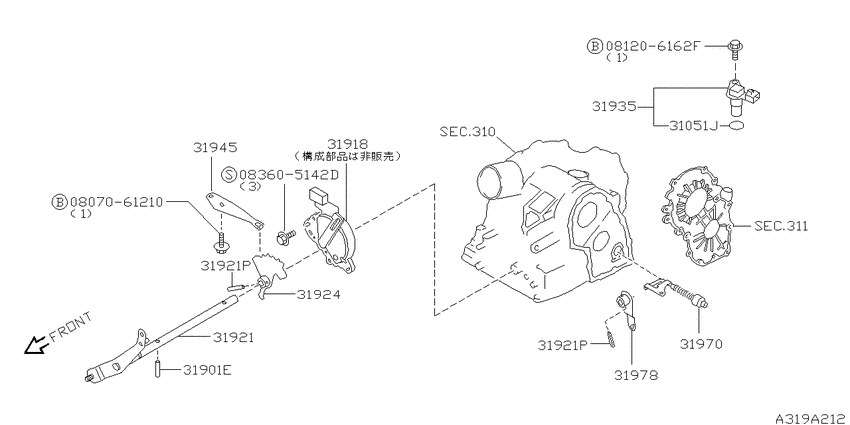

Control switch & system (2001-08-01 ~ ; AT) 7
| # | OEM | Part name |
|---|---|---|
| 31921 | 31920-80X14 | Shaft Assy-Manual |
| 31924 | 31925-31X04 | Plate Assy-Manual |
| 31935 | 31935-8E004 | SENSOR ASSY-REVOLUTION - primary |
| 31970 | 31970-80X03 | Rod Assy-Parking |
| 31978 | 31979-31X03 | Plate Assy-Rod |
| 83605142 | 08360-5142D | スクリユ-,マシン |
| 807061210 | 08070-61210 | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 08070-61210 | Bolt-hexagon | Control switch & system (2001-08-01 ~ ; AT) |
| 08360-5142D | スクリユ-,マシン | Control switch & system (2001-08-01 ~ ; AT) |
| 31920-80X14 | Shaft Assy-Manual | Control switch & system (2001-08-01 ~ ; AT) |
| 31925-31X04 | Plate Assy-Manual | Control switch & system (2001-08-01 ~ ; AT) |
| 31935-8E004 | SENSOR ASSY-REVOLUTION - primary | Control switch & system (2001-08-01 ~ ; AT) |
| 31970-80X03 | Rod Assy-Parking | Control switch & system (2001-08-01 ~ ; AT) |
| 31979-31X03 | Plate Assy-Rod | Control switch & system (2001-08-01 ~ ; AT) |
