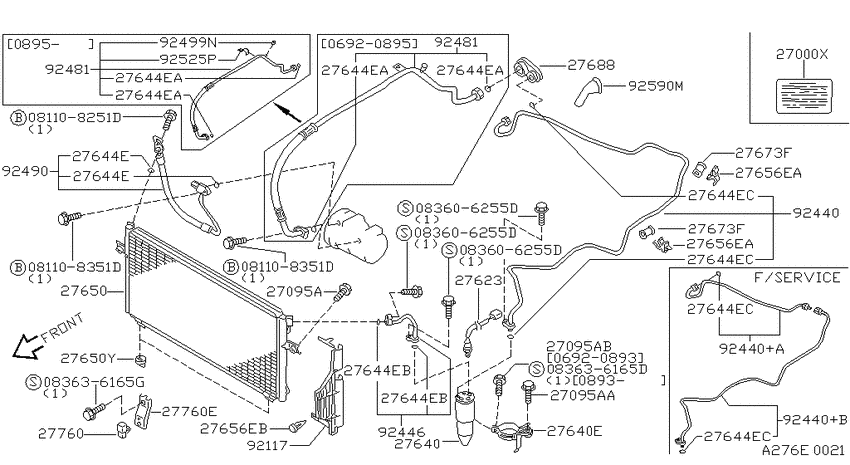

| 01436-00661 |
SCREW |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 01436-01191 |
SCREW |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 01436-01251 |
Bolt |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 08110-8351D |
Bolt-hexagon |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 08360-6255D |
SCREWMACHINE |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 08363-6165D |
Rope & Hook |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 27090-1E411 |
Label-Caution, Air Conditioner |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 27090-2B000 |
Label-Caution, Air Conditioner |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 92110-1E410 |
Condenser Assy |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 92110-2B000 |
Condenser Assy |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 92117-1E400 |
エア ガイド,コンデンサ- |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 92117-2B000 |
Air guide-condenser |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 92131-1E400 |
Tank Assy-Liquid |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 92131-2B000 |
Tank Assy-Liquid |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 92131-5B600 |
Tank Assy-Liquid |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 92135-1E400 |
Bracket-Liquid Tank |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 92135-2B100 |
Bracket-Liquid Tank |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 92135-5B600 |
Bracket-Liquid Tank |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 92137-1E400 |
Switch Assy-Pressure |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 92280-0E500 |
Clip |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 92440-1E410 |
Pipe-front cooler,high |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 92446-1E400 |
パイプ,ク-ラ- コンデンサ- ツ- タンク |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 92446-2B000 |
Pipe-cooler,condenser to tank |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 92473-N8200 |
O Ring |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 92475-N8200 |
O Ring |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 92477-0H000 |
O Ring |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 92477-10Y10 |
Seal-O Ring |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 92477-2B000 |
Seal-O Ring |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 92477-2B001 |
Seal-O Ring |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 92481-1E411 |
Hose-flexible,low |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 92481-2B000 |
Hose-flexible,low |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 92490-1E410 |
Hose-flexible,high |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 92499-2B000 |
Cap-charge valve |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 92550-2B000 |
Clip |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 92551-1E400 |
Clip |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 92551-1E401 |
Clip |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 92551-2B000 |
Clip |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 92558-10V01 |
Protector-Clamp Tube |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 92560-0E500 |
Grommet-Dash |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 92590-0E000 |
ホ-ス,ドレ-ン |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
| 92590-2B000 |
Hose-drain |
Condensor, liquid tank (1992-06-01 ~ ; F/AIR CON; S) |
