Search › Model › U13U
U13U

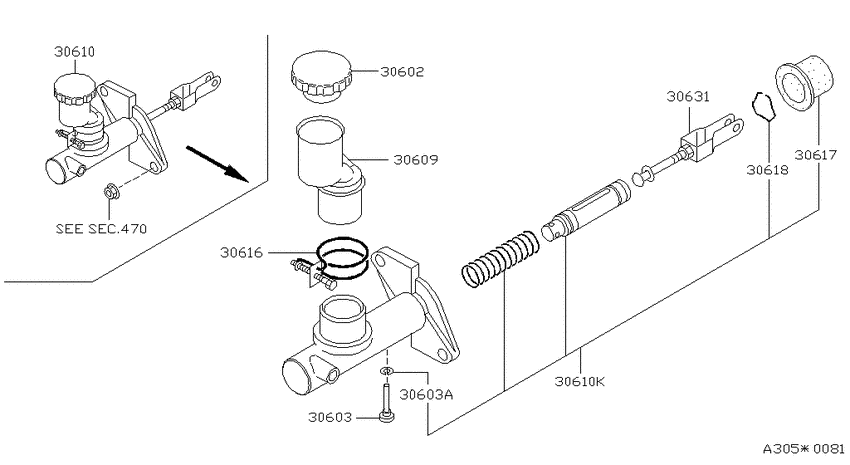

Clutch master cylinder (1992-06-01 ~ ; KA24DE) 11
| # | OEM | Part name |
|---|---|---|
| 30602 | 46020-W1610 | Cap Assy-Oil Reservoir Tank |
| 30603 | 46032-W1110 | Stopper-Screw |
| 30603 | 46079-10610 | Gasket |
| 30609 | 30617-1E400 | Reservoir-Oil, Clutch |
| 30610 | 30610-1E410 | Cylinder Assy-Clutch Master |
| 30610 | 30610-1E420 | Cylinder Assy-Clutch Master |
| 30610 | 30611-1E426 | Piston Kit-Clutch Master Cylinder |
| 30610 | 30611-W1126 | Piston Kit-Clutch Master Cylinder |
| 30617 | 30618-W1610 | Cover-Dust |
| 30631 | 30631-0E501 | Rod Assy-Push |
| 30631 | 30631-51E10 | ROD ASSY-PUSH |
| OEM | Part name | Category |
|---|---|---|
| 30610-1E410 | Cylinder Assy-Clutch Master | Clutch master cylinder (1992-06-01 ~ ; KA24DE) |
| 30610-1E420 | Cylinder Assy-Clutch Master | Clutch master cylinder (1992-06-01 ~ ; KA24DE) |
| 30611-1E426 | Piston Kit-Clutch Master Cylinder | Clutch master cylinder (1992-06-01 ~ ; KA24DE) |
| 30611-W1126 | Piston Kit-Clutch Master Cylinder | Clutch master cylinder (1992-06-01 ~ ; KA24DE) |
| 30617-1E400 | Reservoir-Oil, Clutch | Clutch master cylinder (1992-06-01 ~ ; KA24DE) |
| 30618-W1610 | Cover-Dust | Clutch master cylinder (1992-06-01 ~ ; KA24DE) |
| 30631-0E501 | Rod Assy-Push | Clutch master cylinder (1992-06-01 ~ ; KA24DE) |
| 30631-51E10 | ROD ASSY-PUSH | Clutch master cylinder (1992-06-01 ~ ; KA24DE) |
| 46020-W1610 | Cap Assy-Oil Reservoir Tank | Clutch master cylinder (1992-06-01 ~ ; KA24DE) |
| 46032-W1110 | Stopper-Screw | Clutch master cylinder (1992-06-01 ~ ; KA24DE) |
| 46079-10610 | Gasket | Clutch master cylinder (1992-06-01 ~ ; KA24DE) |
