| 08911-10837 |
ナツト,ヘクサゴン |

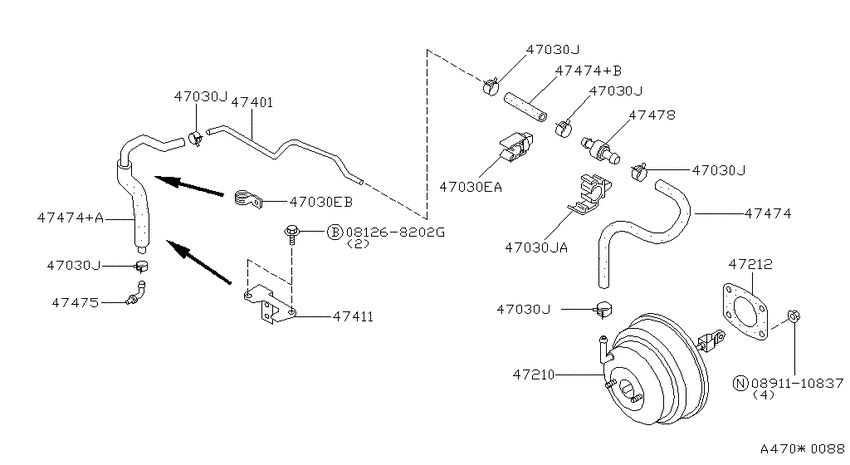

Brake servo & servo control (1992-06-01 ~ ; KA24DE) |
| 16439-17B00 |
Clip |
Brake servo & servo control (1992-06-01 ~ ; KA24DE) |
| 46271-50Y00 |
Clip |
Brake servo & servo control (1992-06-01 ~ ; KA24DE) |
| 47210-1E500 |
Booster Assy-Brake |
Brake servo & servo control (1992-06-01 ~ ; KA24DE) |
| 47401-1E400 |
Tube-Booster To Tank |
Brake servo & servo control (1992-06-01 ~ ; KA24DE) |
| 47401-2B510 |
Tube-Booster To Tank |
Brake servo & servo control (1992-06-01 ~ ; KA24DE) |
| 47411-1E820 |
Bracket |
Brake servo & servo control (1992-06-01 ~ ; KA24DE) |
| 47411-1E821 |
Bracket |
Brake servo & servo control (1992-06-01 ~ ; KA24DE) |
| 47471-1E400 |
Hose-Booster |
Brake servo & servo control (1992-06-01 ~ ; KA24DE) |
| 47471-2B510 |
Hose-Booster |
Brake servo & servo control (1992-06-01 ~ ; KA24DE) |
| 47474-01L00 |
Hose-Booster |
Brake servo & servo control (1992-06-01 ~ ; KA24DE) |
| 47474-1E800 |
Hose-Booster |
Brake servo & servo control (1992-06-01 ~ ; KA24DE) |
| 47474-28L10 |
Hose-Vacuum |
Brake servo & servo control (1992-06-01 ~ ; KA24DE) |
| 47474-2B510 |
Hose-Booster |
Brake servo & servo control (1992-06-01 ~ ; KA24DE) |
| 47475-35F00 |
Connector-Booster Hose |
Brake servo & servo control (1992-06-01 ~ ; KA24DE) |
| 47476-59J00 |
Clip |
Brake servo & servo control (1992-06-01 ~ ; KA24DE) |
| 47477-51E00 |
CLAMP |
Brake servo & servo control (1992-06-01 ~ ; KA24DE) |
| 47478-51E00 |
VALVE ASSY-CHECK |
Brake servo & servo control (1992-06-01 ~ ; KA24DE) |
| 47492-0P001 |
Clamp |
Brake servo & servo control (1992-06-01 ~ ; KA24DE) |
