U13U

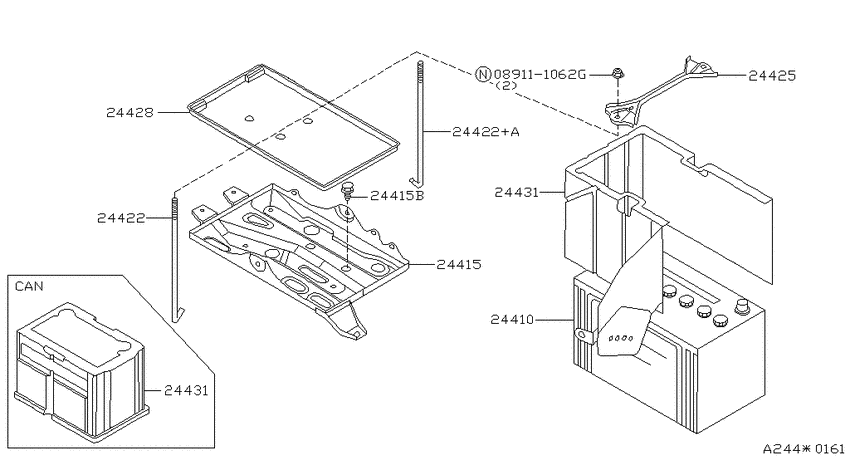

Battery & battery mounting (1992-06-01 ~ ; KA24DE) 7
| # | OEM | Part name |
|---|---|---|
| 24410 | 24410-Q5600 | Battery |
| 24415 | 64860-1E300 | BRACKET-BATTERY |
| 24415 | 01121-01801 | BOLT |
| 24422 | 24425-89902 | Rod-Battery Fix |
| 24428 | 24428-Q5200 | Tray-Battery |
| 24431 | 24431-67Y00 | Cover-Battery |
| 24431 | 24431-Q5601 | Cover-Battery |
| OEM | Part name | Category |
|---|---|---|
| 01121-01801 | BOLT | Battery & battery mounting (1992-06-01 ~ ; KA24DE) |
| 24410-Q5600 | Battery | Battery & battery mounting (1992-06-01 ~ ; KA24DE) |
| 24425-89902 | Rod-Battery Fix | Battery & battery mounting (1992-06-01 ~ ; KA24DE) |
| 24428-Q5200 | Tray-Battery | Battery & battery mounting (1992-06-01 ~ ; KA24DE) |
| 24431-67Y00 | Cover-Battery | Battery & battery mounting (1992-06-01 ~ ; KA24DE) |
| 24431-Q5601 | Cover-Battery | Battery & battery mounting (1992-06-01 ~ ; KA24DE) |
| 64860-1E300 | BRACKET-BATTERY | Battery & battery mounting (1992-06-01 ~ ; KA24DE) |
