U13U

Nissan STANZA · 1992 · 5,451 parts · 240 categories

5,451 items

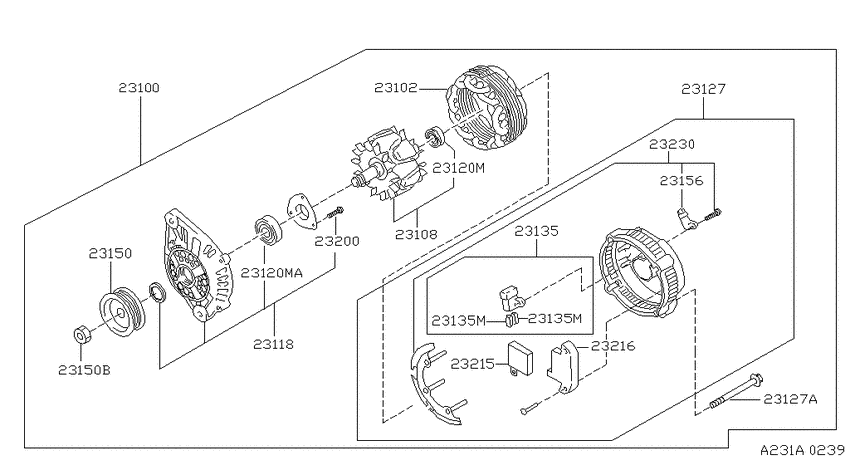

Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE) 42

#	OEM	Part name
23100	23100-1E400	Generator
23100	23100-1E410	Alternator assy
23100	23100-1E800	Generator
23100	01221-00241	NUT
23102	23102-0M800	Stator Assy
23102	23102-25V10	Stator Assy
23102	23102-64J00	Stator Assy
23108	23108-64J00	Rotor Assy
23108	23108-4P00A	Rotor Assy
23108	23108-64J10	Rotor Assy
23108	23108-65F00	Rotor Assy
23118	23118-1E400	Cover Assy-Front
23118	23118-1E800	Cover Assy-Front
23118	23118-30R70	Cover Assy-Front
23120	23120-0M000	Bearing-Ball
23120	23120-30R10	Bearing-Ball
23120	23120-58S01	Bearing-Ball
23120	23120-0M005	Bearing-Ball
23120	23120-60U00	Bearing-Ball
23120	23120-64J11	Bearing-Ball
23127	23127-1E400	Cover Assy-Rear
23127	23127-1E410	Cover assy-rear
23127	23127-1E800	Cover Assy-Rear
23127	23131-20P10	Bolt-Through
23127	23131-58S00	Bolt-Through
23135	23135-59E10	BRUSH ASSY
23135	23142-64J00	Brush Assy
23150	23150-1E400	Pulley Assy
23150	23150-1E800	Pulley Assy
23150	23150-30R70	Pulley Assy
23150	23153-60U00	Nut Assy-Pulley
23156	23156-0M800	Terminal Assy-B
23156	23156-64J00	Terminal Assy-B
23156	23156-64J10	Terminal Assy-B
23200	23115-20P10	Screw Set
23200	23200-0M000	Screw Set
23200	23200-Q4601	Screw Set
23215	23215-0M800	Regulator Assy-Ic
23215	23215-1E410	Regulator Assy-Ic
23216	23216-64J02	Condenser
23230	23230-0M800	Diode Assy
23230	23230-1E400	Diode Assy

OEM	Part name	Category
01221-00241	NUT	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23100-1E400	Generator	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23100-1E410	Alternator assy	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23100-1E800	Generator	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23102-0M800	Stator Assy	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23102-25V10	Stator Assy	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23102-64J00	Stator Assy	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23108-4P00A	Rotor Assy	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23108-64J00	Rotor Assy	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23108-64J10	Rotor Assy	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23108-65F00	Rotor Assy	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23115-20P10	Screw Set	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23118-1E400	Cover Assy-Front	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23118-1E800	Cover Assy-Front	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23118-30R70	Cover Assy-Front	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23120-0M000	Bearing-Ball	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23120-0M005	Bearing-Ball	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23120-30R10	Bearing-Ball	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23120-58S01	Bearing-Ball	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23120-60U00	Bearing-Ball	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23120-64J11	Bearing-Ball	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23127-1E400	Cover Assy-Rear	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23127-1E410	Cover assy-rear	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23127-1E800	Cover Assy-Rear	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23131-20P10	Bolt-Through	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23131-58S00	Bolt-Through	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23135-59E10	BRUSH ASSY	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23142-64J00	Brush Assy	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23150-1E400	Pulley Assy	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23150-1E800	Pulley Assy	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23150-30R70	Pulley Assy	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23153-60U00	Nut Assy-Pulley	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23156-0M800	Terminal Assy-B	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23156-64J00	Terminal Assy-B	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23156-64J10	Terminal Assy-B	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23200-0M000	Screw Set	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23200-Q4601	Screw Set	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23215-0M800	Regulator Assy-Ic	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23215-1E410	Regulator Assy-Ic	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23216-64J02	Condenser	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23230-0M800	Diode Assy	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
23230-1E400	Diode Assy	Alternator (1992-06-01 ~ 1994-07-01; HAP; KA24DE)
