Search › Model › U12
U12

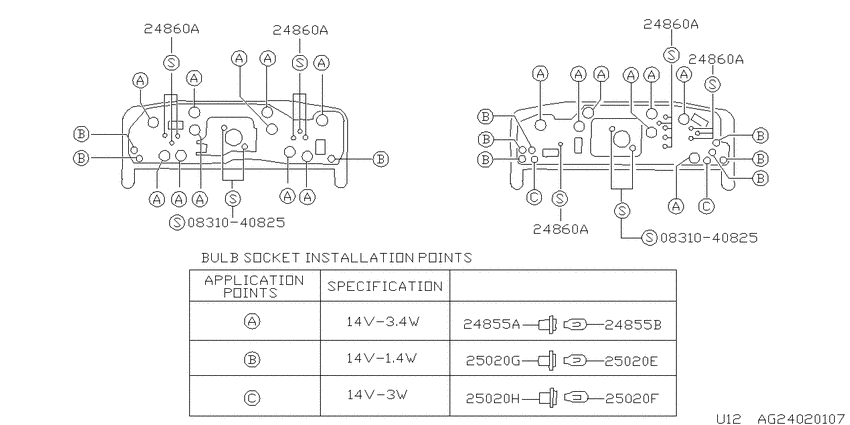

meter (1987-09-01 ~ ; バルブ; S+K) 7
| # | OEM | Part name |
|---|---|---|
| 24855 | 26262-T8000 | Socket Assy-Bulb |
| 24855 | 26261-T8000 | Bulb |
| 24860 | 24869-11V00 | Screw |
| 24860 | 24869-71E12 | BOLT |
| 25020 | 24861-45L00 | Bulb |
| 25020 | 26260-01G00 | Socket Assy-Bulb |
| 831040825 | 08310-40825 | スクリユ-,マシン |
| OEM | Part name | Category |
|---|---|---|
| 08310-40825 | スクリユ-,マシン | meter (1987-09-01 ~ ; バルブ; S+K) |
| 24861-45L00 | Bulb | meter (1987-09-01 ~ ; バルブ; S+K) |
| 24869-11V00 | Screw | meter (1987-09-01 ~ ; バルブ; S+K) |
| 24869-71E12 | BOLT | meter (1987-09-01 ~ ; バルブ; S+K) |
| 26260-01G00 | Socket Assy-Bulb | meter (1987-09-01 ~ ; バルブ; S+K) |
| 26261-T8000 | Bulb | meter (1987-09-01 ~ ; バルブ; S+K) |
| 26262-T8000 | Socket Assy-Bulb | meter (1987-09-01 ~ ; バルブ; S+K) |
