Search › Model › U12

U12

Nissan BLUEBIRD · 1987 · 3,496 parts · 205 categories

← Back to categories

3,496 items

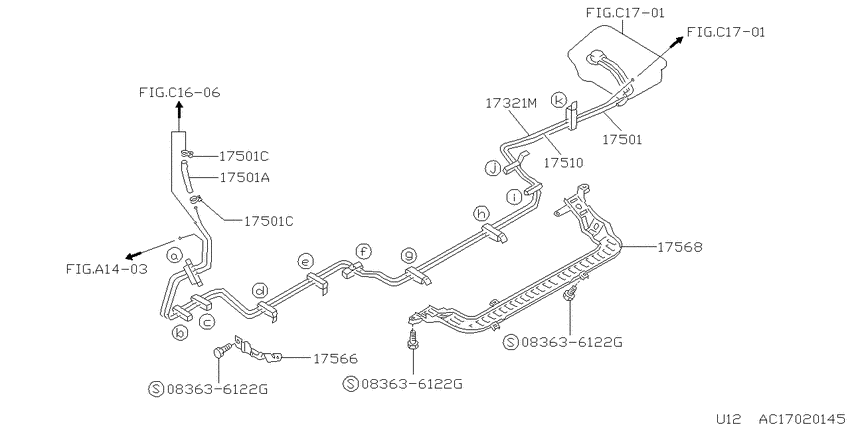

Fuel piping (1989-10-01 ~ ; 全体図; 4WD.(SR18DI+SR20D+SR20DT)) 10

#	OEM	Part name
17321	17338-56E00	HOSE-BREATHER
17501	17506-56E00	TUBE-FUEL
17501	08740-16038	HOSE-FUEL
17501	16439-N4710	Clamp-Hose
17501	17335-56E02	HOSE-BREATHER
17501	17335-56E03	HOSE-FUEL
17510	17510-56E00	TUBE-FUEL RETURN
17510	17555-56E00	HOSE-RETURN
17566	17575-56E00	PROTECTOR-FUEL TUBE
17568	17575-56E10	PROTECTOR-FUEL TUBE

OEM	Part name	Category
08740-16038	HOSE-FUEL	Fuel piping (1989-10-01 ~ ; 全体図; 4WD.(SR18DI+SR20D+SR20DT))
16439-N4710	Clamp-Hose	Fuel piping (1989-10-01 ~ ; 全体図; 4WD.(SR18DI+SR20D+SR20DT))
17335-56E02	HOSE-BREATHER	Fuel piping (1989-10-01 ~ ; 全体図; 4WD.(SR18DI+SR20D+SR20DT))
17335-56E03	HOSE-FUEL	Fuel piping (1989-10-01 ~ ; 全体図; 4WD.(SR18DI+SR20D+SR20DT))
17338-56E00	HOSE-BREATHER	Fuel piping (1989-10-01 ~ ; 全体図; 4WD.(SR18DI+SR20D+SR20DT))
17506-56E00	TUBE-FUEL	Fuel piping (1989-10-01 ~ ; 全体図; 4WD.(SR18DI+SR20D+SR20DT))
17510-56E00	TUBE-FUEL RETURN	Fuel piping (1989-10-01 ~ ; 全体図; 4WD.(SR18DI+SR20D+SR20DT))
17555-56E00	HOSE-RETURN	Fuel piping (1989-10-01 ~ ; 全体図; 4WD.(SR18DI+SR20D+SR20DT))
17575-56E00	PROTECTOR-FUEL TUBE	Fuel piping (1989-10-01 ~ ; 全体図; 4WD.(SR18DI+SR20D+SR20DT))
17575-56E10	PROTECTOR-FUEL TUBE	Fuel piping (1989-10-01 ~ ; 全体図; 4WD.(SR18DI+SR20D+SR20DT))

Source: Public OEM parts-catalog data
Variants: 2 / 140
Category: 205
Collected: 2026-07-26
