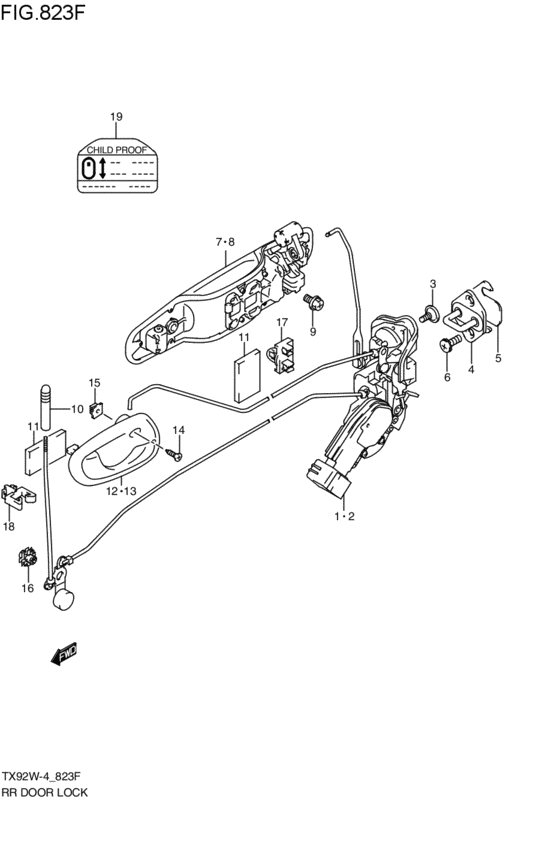

| 02162-06123-000 |
Bolt (6x12) |
rear door lock (2003-06-01~2005-04-01) |
| 02162-0612A-000 |
SCREW - Bolt, bracket |
rear door lock (2003-06-01~2005-04-01) |
| 02162-0612B-000 |
SCREW - Bolt |
rear door lock (2003-06-01~2005-04-01) |
| 03121-05163-000 |
Screw |
rear door lock (2003-06-01~2005-04-01) |
| 03121-0516A-000 |
SCREW |
rear door lock (2003-06-01~2005-04-01) |
| 09137-08011-000 |
SCREW(8X18) |
rear door lock (2003-06-01~2005-04-01) |
| 09403-07324-000 |
CLAMP |
rear door lock (2003-06-01~2005-04-01) |
| 77591-75000-000 |
PAD |
rear door lock (2003-06-01~2005-04-01) |
| 78199-78000-000 |
SPACER,DOOR LOCK STRIKER |
rear door lock (2003-06-01~2005-04-01) |
| 82291-65D10-000 |
スクリュ,フロントドアラッチ |
rear door lock (2003-06-01~2005-04-01) |
| 82291-65D11-000 |
SCREW |
rear door lock (2003-06-01~2005-04-01) |
| 82301-52D10-000 |
LATCH ASSY DOOR RH |
rear door lock (2003-06-01~2005-04-01) |
| 82301-52D11-000 |
LATCH ASSY,RR DR,R |
rear door lock (2003-06-01~2005-04-01) |
| 82302-52D10-000 |
LATCH DOOR LH |
rear door lock (2003-06-01~2005-04-01) |
| 82302-52D11-000 |
LATCH ASSY,RR DR,L |
rear door lock (2003-06-01~2005-04-01) |
| 82610-60A01-000 |
STRIKER,FR DOOR LATCH |
rear door lock (2003-06-01~2005-04-01) |
| 82810-52D10-CFS |
HANDLE,DOOR OUTER,R |
rear door lock (2003-06-01~2005-04-01) |
| 82810-52D10-EG6 |
HANDLE,SIDE DOOR OUT,R |
rear door lock (2003-06-01~2005-04-01) |
| 82810-52D10-EG7 |
HANDLE,SIDE DOOR OUT,R |
rear door lock (2003-06-01~2005-04-01) |
| 82810-52D10-L8D |
HANDLE,SIDE DOOR OUT,R |
rear door lock (2003-06-01~2005-04-01) |
| 82810-52D10-N0E |
HANDLE,SIDE DOOR OUT,R |
rear door lock (2003-06-01~2005-04-01) |
| 82820-52D10-CFS |
HANDLE,DOOR OUTER,L |
rear door lock (2003-06-01~2005-04-01) |
| 82820-52D10-EG6 |
HANDLE,SIDE DOOR OUT,L |
rear door lock (2003-06-01~2005-04-01) |
| 82820-52D10-EG7 |
HANDLE,SIDE DOOR OUT,L |
rear door lock (2003-06-01~2005-04-01) |
| 82820-52D10-L8D |
HANDLE,SIDE DOOR OUT,L |
rear door lock (2003-06-01~2005-04-01) |
| 82820-52D10-N0E |
HANDLE,SIDE DOOR OUT,L |
rear door lock (2003-06-01~2005-04-01) |
| 82982-65D00-R8H |
KNOB, DOOR INSIDE LOCK (BEIGE) |
rear door lock (2003-06-01~2005-04-01) |
| 82982-65D00-R8J |
Knob, Door Inside Lock (Gray) |
rear door lock (2003-06-01~2005-04-01) |
| 83110-76G10-KM6 |
HANDLE,SIDE DR INSIDE,R(GRAY) |
rear door lock (2003-06-01~2005-04-01) |
| 83110-76G10-KM7 |
HANDLE,SIDE DR INSIDE,R(CHROME |
rear door lock (2003-06-01~2005-04-01) |
| 83110-76G11-KM6 |
HANDLE,SIDE DR INSIDE,R |
rear door lock (2003-06-01~2005-04-01) |
| 83110-76G11-KM7 |
HANDLE,SIDE DR INSIDE,R |
rear door lock (2003-06-01~2005-04-01) |
| 83119-60B00-000 |
NUT,FR DOOR INSIDE HANDLE |
rear door lock (2003-06-01~2005-04-01) |
| 83130-76G10-KM6 |
HANDLE,SIDE DR INSIDE,L(GRAY) |
rear door lock (2003-06-01~2005-04-01) |
| 83130-76G10-KM7 |
HANDLE,SIDE DR INSIDE,L(CHROME |
rear door lock (2003-06-01~2005-04-01) |
| 83130-76G11-KM6 |
HANDLE,SIDE DR INSIDE,L |
rear door lock (2003-06-01~2005-04-01) |
| 83130-76G11-KM7 |
HANDLE,SIDE DR INSIDE,L |
rear door lock (2003-06-01~2005-04-01) |
| 83261-56B00-000 |
PIN,FR DOOR INSIDE LOCK ROD |
rear door lock (2003-06-01~2005-04-01) |
| 83271-50E00-000 |
CLIP,DR HANDLE ROD |
rear door lock (2003-06-01~2005-04-01) |
| 86951-54G00-000 |
PLATE,CHILD LOCK CAUTION |
rear door lock (2003-06-01~2005-04-01) |
| 86951-78004-000 |
CAUTION PLATE,CHILD PROOF |
rear door lock (2003-06-01~2005-04-01) |
