TX92W

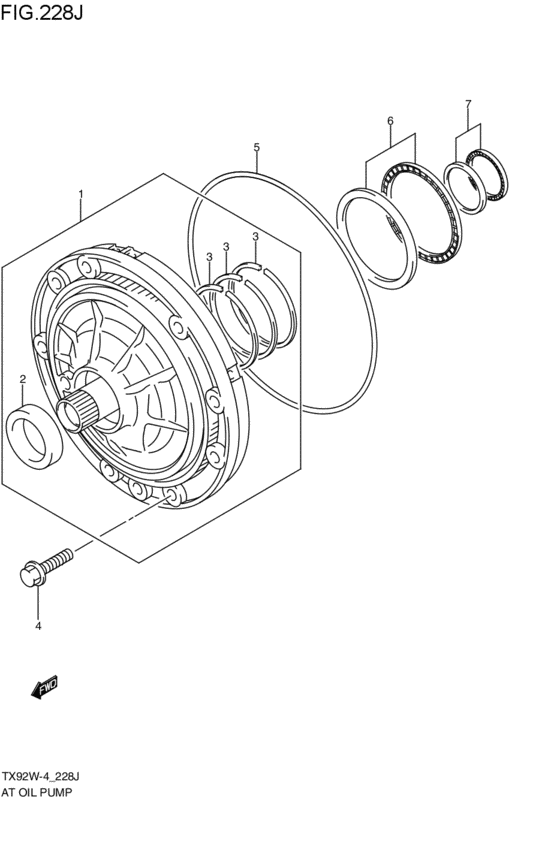

at - oil pump (2003-06-01~2005-04-01) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 22800-54J10-000 | PUMP ASSYOIL |
| 1 | 22800-54J11-000 | PUMP ASSY,OIL |
| 2 | 22881-54J10-000 | SEAL,OIL PUMP OIL |
| 3 | 22875-54J10-000 | RING,OIL PUMP OIL SEAL |
| 4 | 22814-54J10-000 | BOLT,OIL PUMP |
| 5 | 22885-54J30-000 | O-RING,OIL PUMP |
| 6 | 22894-54JT0-000 | BEARING SET,THRUST NO.1 |
| 7 | 22896-54JT0-000 | BEARING SET,THRUST NO.10 |
| OEM | Part name | Category |
|---|---|---|
| 22800-54J10-000 | PUMP ASSYOIL | at - oil pump (2003-06-01~2005-04-01) |
| 22800-54J11-000 | PUMP ASSY,OIL | at - oil pump (2003-06-01~2005-04-01) |
| 22814-54J10-000 | BOLT,OIL PUMP | at - oil pump (2003-06-01~2005-04-01) |
| 22875-54J10-000 | RING,OIL PUMP OIL SEAL | at - oil pump (2003-06-01~2005-04-01) |
| 22881-54J10-000 | SEAL,OIL PUMP OIL | at - oil pump (2003-06-01~2005-04-01) |
| 22885-54J30-000 | O-RING,OIL PUMP | at - oil pump (2003-06-01~2005-04-01) |
| 22894-54JT0-000 | BEARING SET,THRUST NO.1 | at - oil pump (2003-06-01~2005-04-01) |
| 22896-54JT0-000 | BEARING SET,THRUST NO.10 | at - oil pump (2003-06-01~2005-04-01) |
