Search › Model › TX62
TX62

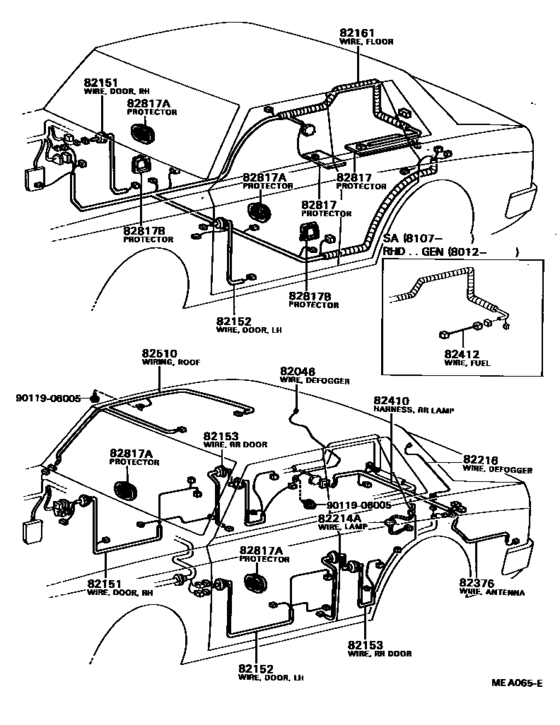

Wiring & Clamp ([09.1980 - ] (8009- )SED) 8
| # | OEM | Part name |
|---|---|---|
| 82161 | 82161-22110 | Wire, Floor |
| 82214 | 82214-22030 | Wire, Lamp |
| 82410 | 82410-22240 | Harness Assy, Wiring To Rear Lamp |
| 82410 | 82410-22210 | Harness Assy, Wiring To Rear Lamp |
| 82510 | 82510-22160 | Wiring Assy, Roof |
| 82817 | 82817-22190 | Protector, Wiring Harness, No.1 |
| 82817 | 82817-30150 | Plate, Noise Control, No.3 |
| 9011906005 | 90119-06005 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 82161-22110 | Wire, Floor | Wiring & Clamp ([09.1980 - ] (8009- )SED) |
| 82214-22030 | Wire, Lamp | Wiring & Clamp ([09.1980 - ] (8009- )SED) |
| 82410-22210 | Harness Assy, Wiring To Rear Lamp | Wiring & Clamp ([09.1980 - ] (8009- )SED) |
| 82410-22240 | Harness Assy, Wiring To Rear Lamp | Wiring & Clamp ([09.1980 - ] (8009- )SED) |
| 82510-22160 | Wiring Assy, Roof | Wiring & Clamp ([09.1980 - ] (8009- )SED) |
| 82817-22190 | Protector, Wiring Harness, No.1 | Wiring & Clamp ([09.1980 - ] (8009- )SED) |
| 82817-30150 | Plate, Noise Control, No.3 | Wiring & Clamp ([09.1980 - ] (8009- )SED) |
| 90119-06005 | New Genuine Part | Wiring & Clamp ([09.1980 - ] (8009- )SED) |
