TX62

Toyota CRESSIDA-CRESSIDA-WAGON · 1981 · 3,142 parts · 144 categories

← Back to categories

3,142 items

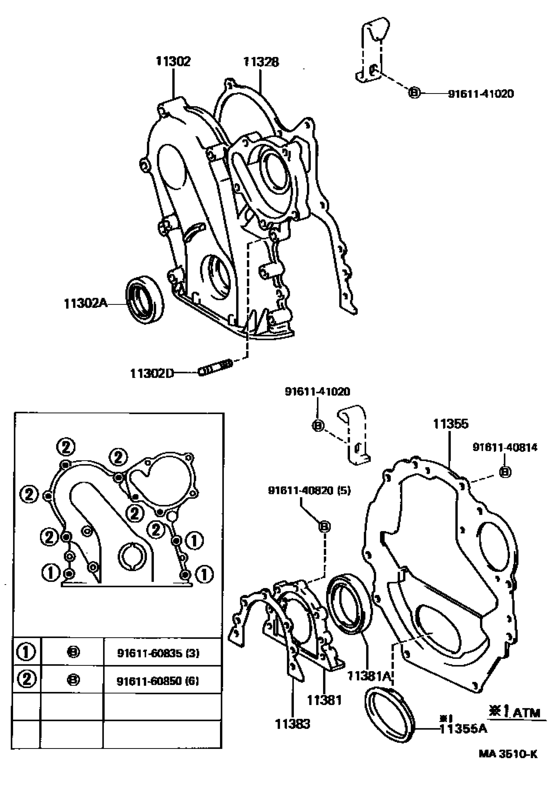

Timing Gear Cover & Rear End Plate ([07.1981 - ] (8107- )3T) 18

#	OEM	Part name
11302	11321-28010	Cover Sub-Assy, Timing Chain Or Belt
11302	90311-38022	Seal, Oil(For Timing Chain Or Belt Cover)
11302	90311-38086	Seal, Oil(For Timing Chain Or Belt Cover)
11302	90116-08057	Bolt, Stud(For Timing Gear Cover)
11328	11328-25012	Gasket, Timing Gear Or Chain Cover
11328	11328-25013	Gasket, Timing Gear Or Chain Cover
11355	11355-25012	Plate, Rear End
11381	11381-25010	Retainer, Engine Rear Oil Seal
11381	90311-75113	Seal, Engine Rear Oil
11381	90311-75009	Seal, Engine Rear Oil
11383	11383-25010	Gasket, Engine Rear Oil Seal Retainer
9161140814	91611-40814	Bolt(For Manual Transmission Oil Pan Setting)
9161140814	91611-60814	Bolt
9161140820	91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)
9161141020	91611-41020	Bolt(for Transaxle & Engine Setting)
9161141020	91612-B1020	Bolt (For Transfer Case)Cover No.2
9161160835	91611-60835	Bolt(For Clutch Release Cylinder Setting)
9161160850	91611-60850	Bolt(For Rocker Support Set)

OEM	Part name	Category
11321-28010	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([07.1981 - ] (8107- )3T)
11328-25012	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([07.1981 - ] (8107- )3T)
11328-25013	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([07.1981 - ] (8107- )3T)
11355-25012	Plate, Rear End	Timing Gear Cover & Rear End Plate ([07.1981 - ] (8107- )3T)
11381-25010	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([07.1981 - ] (8107- )3T)
11383-25010	Gasket, Engine Rear Oil Seal Retainer	Timing Gear Cover & Rear End Plate ([07.1981 - ] (8107- )3T)
90116-08057	Bolt, Stud(For Timing Gear Cover)	Timing Gear Cover & Rear End Plate ([07.1981 - ] (8107- )3T)
90311-38022	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([07.1981 - ] (8107- )3T)
90311-38086	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([07.1981 - ] (8107- )3T)
90311-75009	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([07.1981 - ] (8107- )3T)
90311-75113	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([07.1981 - ] (8107- )3T)
91611-40814	Bolt(For Manual Transmission Oil Pan Setting)	Timing Gear Cover & Rear End Plate ([07.1981 - ] (8107- )3T)
91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)	Timing Gear Cover & Rear End Plate ([07.1981 - ] (8107- )3T)
91611-41020	Bolt(for Transaxle & Engine Setting)	Timing Gear Cover & Rear End Plate ([07.1981 - ] (8107- )3T)
91611-60814	Bolt	Timing Gear Cover & Rear End Plate ([07.1981 - ] (8107- )3T)
91611-60835	Bolt(For Clutch Release Cylinder Setting)	Timing Gear Cover & Rear End Plate ([07.1981 - ] (8107- )3T)
91611-60850	Bolt(For Rocker Support Set)	Timing Gear Cover & Rear End Plate ([07.1981 - ] (8107- )3T)
91612-B1020	Bolt (For Transfer Case)Cover No.2	Timing Gear Cover & Rear End Plate ([07.1981 - ] (8107- )3T)
