Search › Model › TX60

TX60

Toyota CHASER · 1980 · 4,323 parts · 171 categories
TX60 ×

← Back to categories

4,323 items

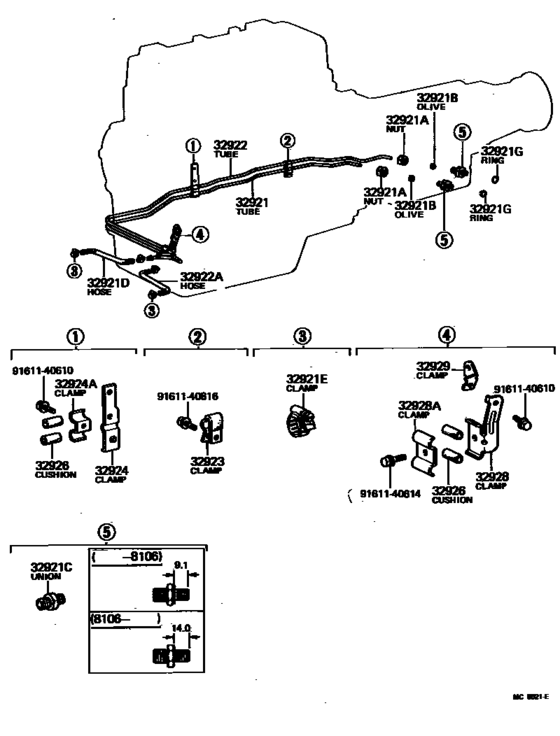

Oil Cooler & Tube (Atm) ([09.1980 - 08.1982] (8009-8208)3FC) 24
#OEMPart name
32921 32921-22070 Tube, Oil Cooler Inlet, No.1
32921 90402-13041 Nut, Union(For Fuel Pipe)
32921 96395-71400 Olive(For Fuel Pipe)
32921 90404-13003 Union(For Oil Cooler Tube)
32921 90404-13265 Union(For Oil Cooler Tube)
32921 90445-14259 Hose(For Oil Cooler Inlet)
32921 90460-14085 Clamp, Hose(For Oil Cooler)
32921 90460-20004 Clamp, Hose(For Oil Cooler)
32921 90301-10189 Ring, O(For Oil Cooler Tube Union)
32922 32922-22090 Tube, Oil Cooler Outlet, No.1
32922 90445-14274 Hose(For Oil Cooler Outlet)
32922 90445-14514 Hose(For Oil Cooler Outlet)
32923 90461-08039 Clamp, Automatic Transmission Oil Cooler Tube
32924 32924-14010 Clamp, Oil Cooler Tube, No.2
32924 90462-12085 Clamp, Automatic Transmission Oil Cooler Tube
32926 32926-30011 Cushion, Oil Cooler Tube(Atm)
32928 32928-22011 Clamp, Flexible Hose, No.1
32929 32929-22010 Clamp, Flexible Hose, No.2
9161140610 91611-40610 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161140610 91611-B0610 Bolt (For Transfer Oil Receiver No.1)
9161140614 91611-40614 Bolt, Hexagon(For Steering Column Bracket)
9161140614 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
9161140816 91611-40816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140816 91611-B0816 Bolt
Source
Public OEM parts-catalog data
Variants
2 / 5
Category
171
Collected
2026-08-02
